点击放大查看

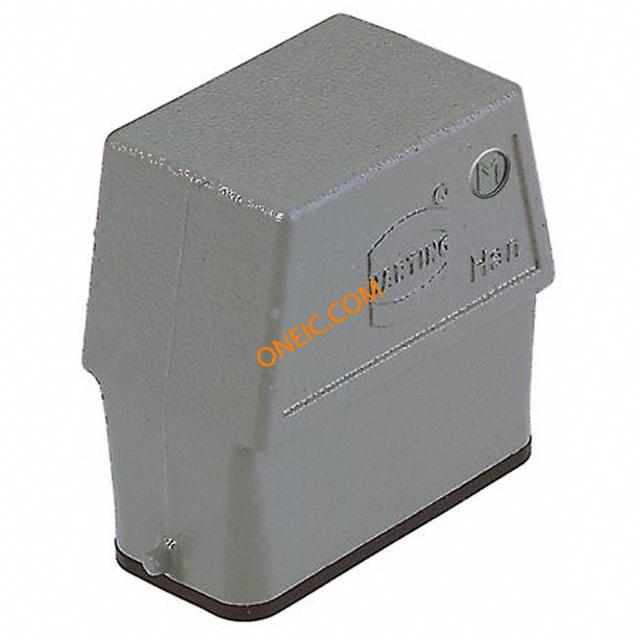

19200100546

制造商	HARTING Technology Group
描述	HAN A HOOD SIDE HC 2 PEGS M25 Heavy Duty Power Connectors HAN 10A M25 SIDE METAL HOOD Enclosure: for Han connectors; Han; size 10A; for cable; high Han A Hoods: Han A Hood Side Entry HC 2 Pegs M25 Harting Han A 系列侧入电源连接器
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3074	零件号别名	010 019 019-20-010-0546 0546 20
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

RoHS Compliant

电气参数

最大额定电流

10 A

连接器类型 - 电压输入

high

机械参数

尺寸	10A	重量	0.14 kg
包装方式	Bulk	方向	angled
螺纹尺寸	M25	外壳颜色	Gray
衬套螺纹	M25	连接器类型	Hood
外壳涂层	Powder Coated	安装样式	Vertical
封装形式	size 10A	插入力	Female
锁定特性	for latch	壳体材料	Aluminum, Die Cast
包装数量	2	尺寸/外形	2.469" L x 1.417" W x 2.646" H (62.70mm x 36.00mm x 67.20mm)
触点数	1	供应商器件封装	for Han connectors
外壳与棱镜材料	aluminium alloy

产品信息

SPG	2	类型	CONNECTORS
样式	Side Entry	系列	Han A
产品子类型	Hoods	锁定位置	Side Clip on Base Bottom
适配器系列	Han	单元数量	1
基础产品编号	1920000

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
