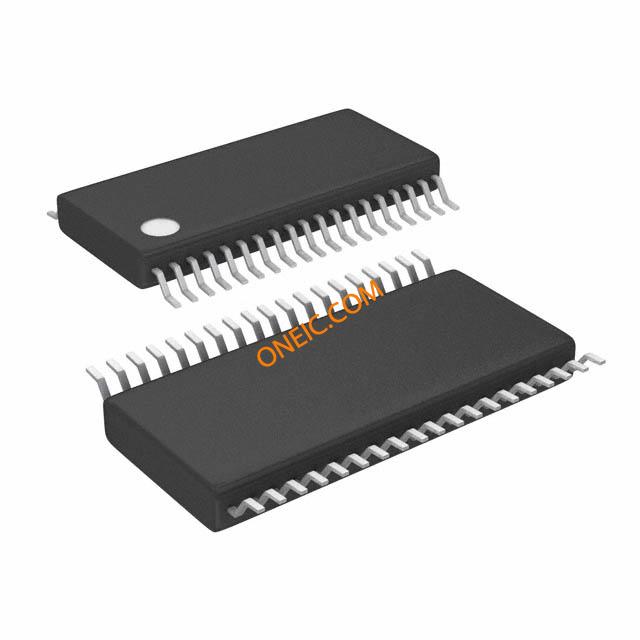

LTC3855EFE#PBF
| 制造商 | |
| 描述 | DC DC Cntrlr Dual-OUT Sync Buck 4.5V to 38V Input 38-Pin TSSOP EP IC REG CTRLR BUCK PWM CM 38TSSOP DC-DC converter; step down; Uin:4.5÷38V; Uout:0.6÷12.5V; 240A |
| 分类 |
商业参数
| 标准包装数量 | 50 | 标准封装名称 | TSSOP |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| PWM类型 | Current Mode | 占空比 | 95% |
| Cuk转换器 | No | 降压转换器 | Yes |
| 隔离电源 | No | 额定电压 | 4.5 to 38 V |
| 升压转换器 | No | 最大频率 | 850kHz |
| 输出电流 | 25/25 A | 供电电压 | 4.5 V ~ 38 V |
| 倍压转换器 | No | 反激转换器 | No |
| 输出数量 | 2 | 分频/倍频 | No |
| 反相转换器 | No | 开关频率 | 850 |
| 共模瞬态抗扰度（最小） | Extended | ||
机械参数
| 重量 | 0.43 g | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 封装形式 | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad | 冷却的封装 | TSSOP EP |
| 包装数量 | TSSOP EP | 位数 | 38 |
产品信息
| SPG | 49 | 类型 | Synchronous Buck Controller |
| 单元数量 | 1 | 使用的IC/零件 | step down |
环境参数
| 工作温度 | -40°C ~ 85°C | 结工作温度 | 85C |
相关型号

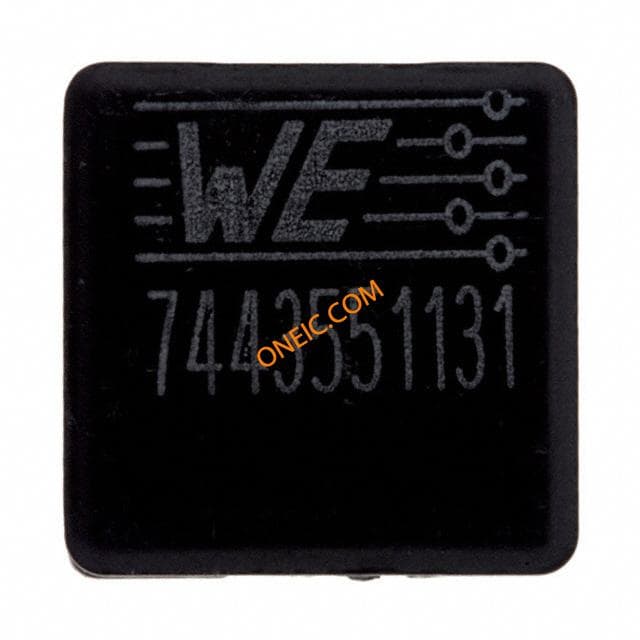

7443551131
Wurth Electronics
固定インダクタ WE-HCI Inductor 13uH 100kHz 10A INDUCTOR POWER 13UH 10A SMD Fixed Inductors WE-HCI Inductor 13uH 100kHz 10A HCI INDUCTOR, 13UH, 11,20MOHM, 9A
IHLP5050FDER4R7M01
vishay / dale
Ind High Current Shielded Wirewound 4.7uH 20% 100KHz 13.5A 5050 T/R Inductor High Current Shielded Wirewound 4.7uH 20% 100KHz 13.5A 8.7mOhm DCR 5050 T/R INDUCTOR POWER 4.7UH 13.5A SMD Inductor IHLP SMD 5050 4.7uH Fixed Inductors 4.7uH 20% INDUCTOR, 4.7UH, 30A, 20% Ind Highcur, Shield, 4.7uH, 20%, 100Khz, 5050 , TR Vishay IHLP5050FD-01 系列 屏蔽 金属复合材料芯材 绕线贴片电感器, 4.7 μH ±20%, 13.5A Idc

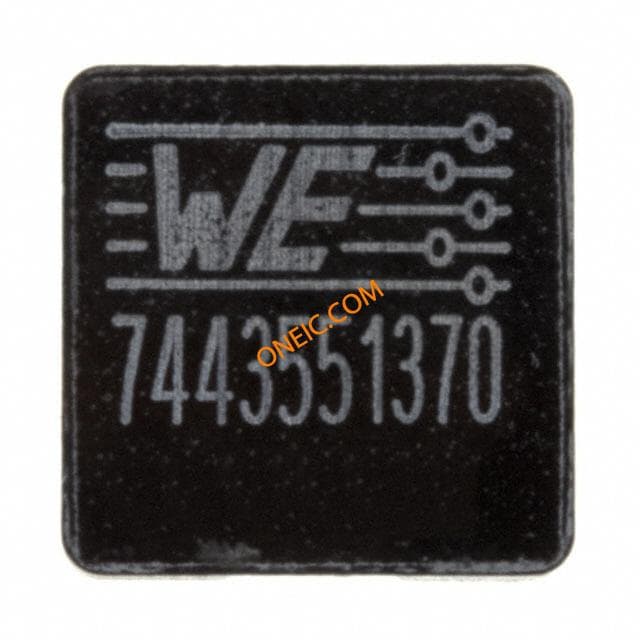

7443551370
Wurth Electronics
固定インダクタ WE-HCI Inductor 3.7uH 100kHz 17A Ind Power Choke Shielded Wirewound 3.7uH 20% 100KHz 17A T/R INDUCTOR POWER 3.7UH 17A SMD Inductor SMD high current WE-HCI 3.7uH Fixed Inductors WE-HCI Inductor 3.7uH 100kHz 17A INDUCTOR, SMD, HIGH CURRENT 2.6UH Wurth WE-HCI 系列 屏蔽 WE-Perm芯材 绕线贴片电感器, 3.7 μH ±20%, 17A Idc
744311220
Wurth Electronics
固定インダクタ WE-HCI Inductor 2.2uH 100kHz 9A Ind Power Choke Shielded Wirewound 2.2uH 20% 100KHz 9A T/R INDUCTOR POWER 2.2UH 9A SMD Inductor SMD high current WE-HCI 2.2uH Fixed Inductors WE-HCI Inductor 2.2uH 100kHz 9A INDUCTOR, SMD, HIGH CURRENT 2.2UH Wurth WE-HCI 系列 屏蔽 WE-Superflux芯材 绕线贴片电感器, 2.2 μH ±20%, 9A Idc
LTC3855EFE#PBF
Analog Devices, Inc.
DC DC Cntrlr Dual-OUT Sync Buck 4.5V to 38V Input 38-Pin TSSOP EP IC REG CTRLR BUCK PWM CM 38TSSOP DC-DC converter; step down; Uin:4.5÷38V; Uout:0.6÷12.5V; 240A
SI4816BDY-T1-GE3
Vishay Intertechnology, Inc.
Trans MOSFET N-CH 30V 5.8A/8.2A 8-Pin SOIC N T/R MOSFET DL N-CH 30V 6.8A 8-SOIC MOSFET, NN CH, 30V, 8SOIC MOSFET Dua lN-Ch w/Schottky 30V 18.5/11.5mohm

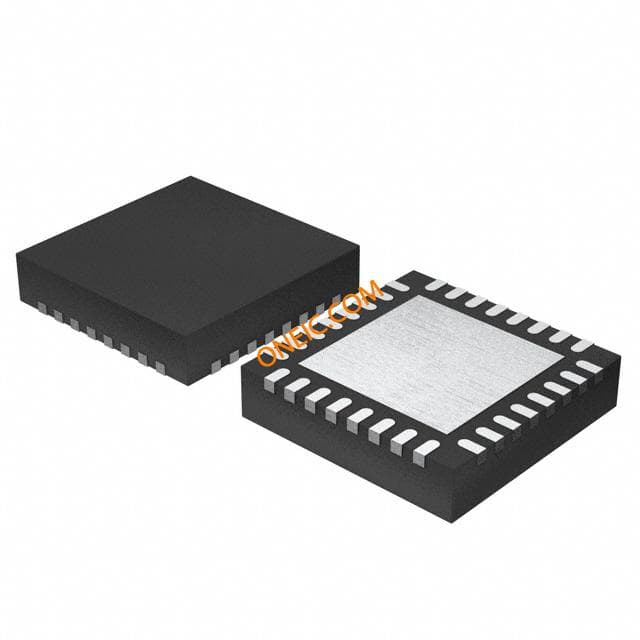

LTC3860EUH#PBF
