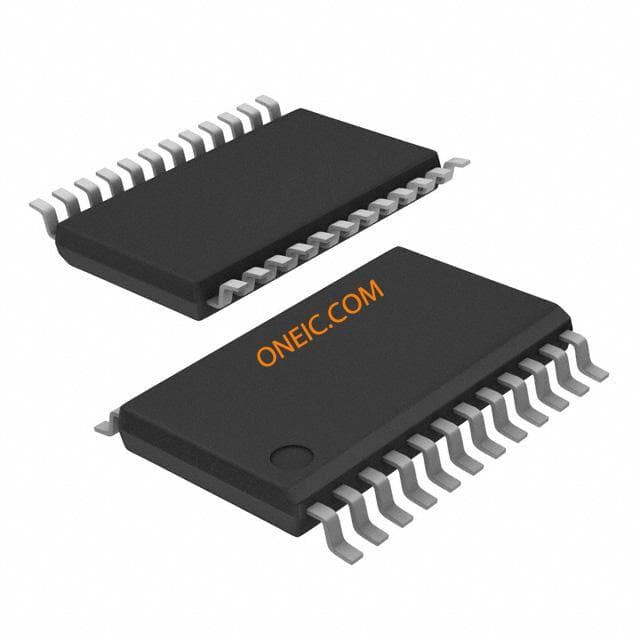

PCA9535PWR
| 制造商 | Texas Instruments Incorporated |
| 描述 | I2C and SMBus Low Power I/O Expander 24-Pin TSSOP T/R I2C/SMBus GPIO Expander 5.5V 24-Pin TSSOP T/R IC I/O EXPANDER I2C 16B 24TSSOP Interface - I/O Expanders 16-Bit I2C & SMBus Lo-Pwr I/O Expander PCA9535PWR IC, I/O EXPANDER Remote 16-Bit I2C and SMBus, Low-Power I/O Expander With Interrupt Output and Config Registers |
| 分类 |
商业参数
| 其他名称 | 296-20951-2 | 产品类别 | Interface - I/O Expanders |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 2000 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | NRND | ESD保护 | 2@HBM/1@CDM |
电气参数
| 复位 | No | 频率 | :400kHz |
| 接口 | Fast Mode | 逻辑类型 | PCA9535 |
| 输出类型 | Open Drain | I/O 数量 | 16 |
| 额定电压 | 2.3 | 时钟频率 | 400kHz |
| 数据速率（最大） | 400 | 最大频率 | 400 kHz |
| 输出电流 | 25 mA | 中断输出 | Yes |
| 供电电压 | 2.3 V ~ 5.5 V | 采样频率 | 0.4 |
| 最大额定电流 | Catalog | 最小供电电压 | 5.5 |
| 静态电流（最大） | 1 | 输出源/灌电流 | 10mA, 25mA |
| 平均整流电流 Io | 100 uA | ||
机械参数
| 重量 | 0.003157 oz | 包装方式 | Tape and Reel |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :24 | 封装形式 | 24TSSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 7.9(Max) |
| 包装数量 | TSSOP | 位数 | 24 |
| 外壳尺寸-插件 | 1.05(Max) | 供应商器件封装 | 24-TSSOP |
产品信息
| 系列 | PCA9535 | 产品特性 | POR |
| 功能 | :I/O Expander | 软件 | SCPS129J |
| 替代型号 | TCA9535PWR | 产品子类型 | I/O Expanders |
| 使用的IC/零件 | View | 地址数量 | 8 |
| 其他规格 | :16bit | 印刷电路板数量 | 24 |
| 输入数量及类型 | 16 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
相关型号
SN74LVC1G08DCKR
texas instruments
AND Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R SINGLE POSITIVE AND GATE SC-70 Logic Gates Single 2-Input Pos IC, AND GATE, SINGLE 2-INPUT, SMD IC, AND GATE, SC-70-5, FULL REEL Single 2-Input Positive-AND Gate Logic IC SC-70-5, SN74LVC1G08, SN74LVC1G08DCKR, Texas Instruments Texas Instruments 逻辑门, CMOS输出, 32mA, 1.65 至 5.5 V, 5针 SC-70封装
PCA9535PWR
texas instruments
I2C and SMBus Low Power I/O Expander 24-Pin TSSOP T/R I2C/SMBus GPIO Expander 5.5V 24-Pin TSSOP T/R IC I/O EXPANDER I2C 16B 24TSSOP Interface - I/O Expanders 16-Bit I2C & SMBus Lo-Pwr I/O Expander PCA9535PWR IC, I/O EXPANDER Remote 16-Bit I2C and SMBus, Low-Power I/O Expander With Interrupt Output and Config Registers
SN74LVC2G53DCTR
texas instruments
DUAL ANALOG MULTIPLEXER/DEMULTIPLEXER Analog Switch Single SPDT 8-Pin SSOP T/R Analog Switch ICs Dual Analog Analog Multiplexer Single 2:1 8-Pin SSOP T/R IC SWITCH SPDT SM8 IC, ANALOG SWITCH, DUAL, SPDT, SSOP-8 MUX/DEMUX, DUAL, 2 CH, SSOP-8 Single Pole, Double-Throw (SPDT) Analog Switch or 2:1 Analog Multiplexer/Demultiplexer

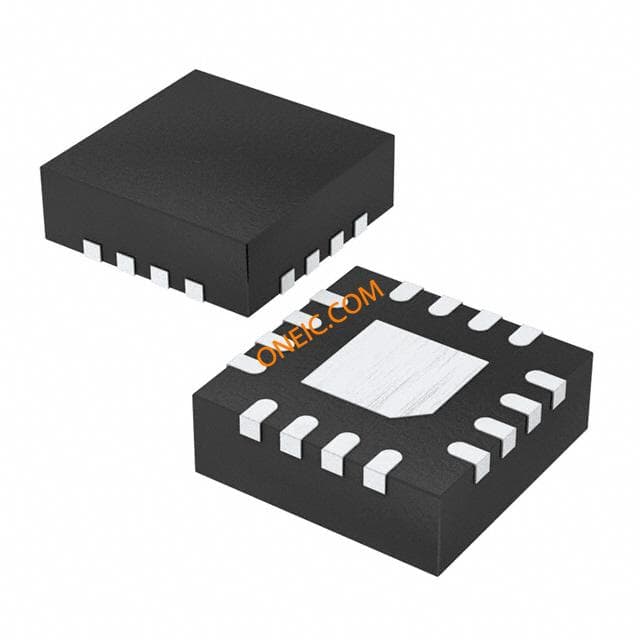

THS4520RGTT
texas instruments
OP Amp Single GP R-R O/P 5.25V 16-Pin VQFN EP T/R SP Amp DIFF AMP Single R-R O/P ±2.625V/5.25V 16-Pin VQFN EP T/R IC OPAMP DIFF 1.2GHZ RRO 16QFN Differential Amplifiers Rail-to-Rail Output Wideband Full Diff SP Amp DIFF AMP Single R-R O/P �2.625V/5.25V 16-Pin VQFN EP T/R DIFF AMP, 5V, 620MHZ, 570V/US, 16QFN Rail-to-Rail Output Wideband Fully Differential Amplifier Texas Instruments 运算放大器, 1200MHz 轨至轨, 5 V, 16针 QFN

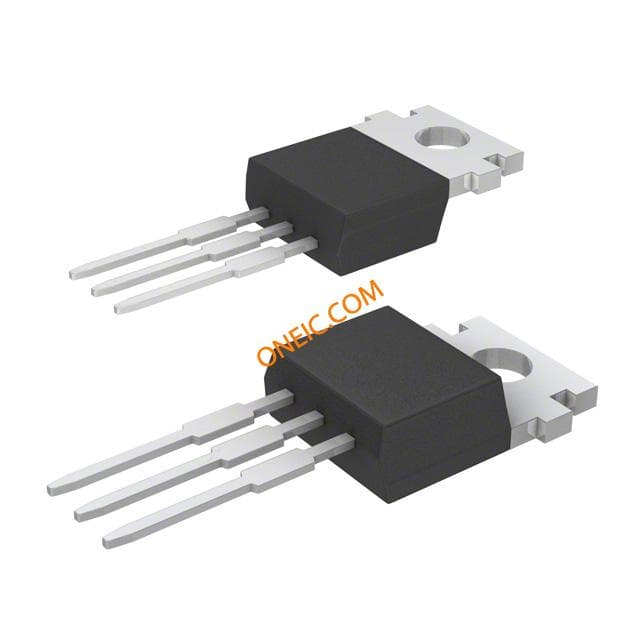

UA78M33CKCS
texas instruments
Standard Regulator Pos 3.3V 0.5A 3-Pin(3+Tab) TO-220 Tube IC REG LDO 3.3V 0.5A TO220-3 UA78M33CKCS, Linear Voltage Regulator, 0.5A 3.3V, 3-Pin TO-220 Voltage Regulators - Standard 3.3 V 500mA Fix Pos Voltage Regulator IC, LINEAR VOLT REGULATOR, 3.3V, TO-220 3/4 Pin 500mA Fixed 3.3V Positive Voltage Regulator Texas Instruments UA78Mxx 系列 线性稳压器, 3.3 V /500mA, 3针 TO-220 Linear Voltage Regulators 3.3 V 500mA Fix Pos Voltage Regulator
SN74LVC1GU04DBVT
texas instruments
Inverter 1-Element CMOS 5-Pin SOT-23 T/R IC SINGLE INVERTER GATE SOT23-5 Inverters SINGLE INVERTER GATE LOGIC, SINGLE INVERTER GATE, 5SOT23 Single Inverter Gate CMOS 反相器, CMOS 1.65 → 5.5 V, 5针 SOT-23封装
SN74LVC2G53DCUT
texas instruments
DUAL ANALOG MULTIPLEXER/DEMULTIPLEXER Analog Switch Single SPDT 8-Pin VSSOP T/R Analog Switch ICs SNLG Pole Double Throw Analog Switch Analog Multiplexer Single 2:1 8-Pin VSSOP T/R IC SWITCH SPDT US8 SN74LVC2G53DCUT, Analogue SPDT Switch Single SPDT, 3, 5V, 8-Pin, VSSOP LOGIC, SPDT MUX/DEMUX 2:1 8US8, RL250 Single Pole, Double-Throw (SPDT) Analog Switch or 2:1 Analog Multiplexer/Demultiplexer

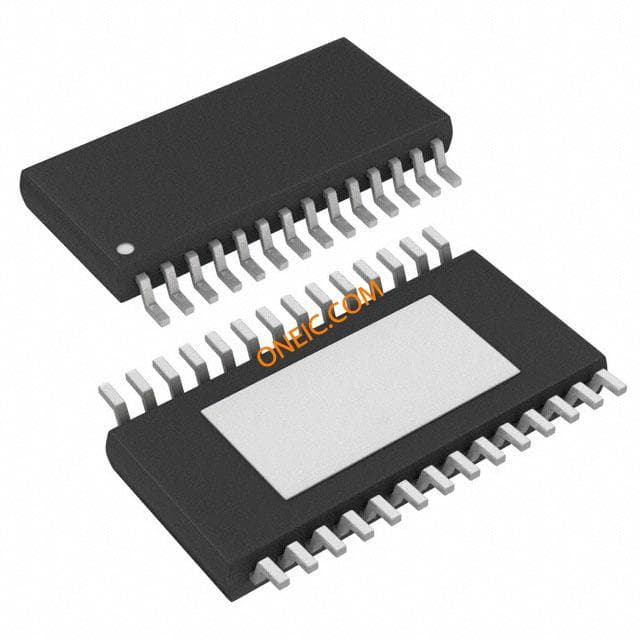

TPA3110D2PWP
texas instruments
Audio Amp Speaker 2-CH Stereo 15W Class-D 28-Pin HTSSOP EP Tube IC AMP AUD PWR 15W STER 28HTSSOP Audio Amplifiers 15W Class D Stereo Amplifier IC, AMP AUD PWR 15W STER 28HTSSOP 15W Filter-Free Class D Stereo Amplifier with SpeakerGuard™ (TPA3110) Texas Instruments D 类 立体声 音频放大器 IC, +85 °C, 28引脚 HTSSOP封装
TPS3825-33DBVT
texas instruments
Processor Supervisor 2.93V 0V to 5.8V 5-Pin SOT-23 T/R IC 2.93V SUPPLY MONITOR SOT23-5 TPS3825-33DBVT, Processor Supervisor 0 to 5.8V Active High, Active Low, Reset 5-Pin SOT-23 Supervisory Circuits 2.93V Monitor SUPERVISORY CIRCUIT, 3825, SOT-23-5 Supervisor Integrated Circuit; processor, supervisory circuit Processor Supervisory Circuits Supervisor IC, Processor, SOT-23-5, TPS3825, TPS3825-33DBVT, Texas Instruments 处理器监控器, 0 至 5.8 V监控电压, 多种输出驱动, 复位功能, 5针 SOT-23封装

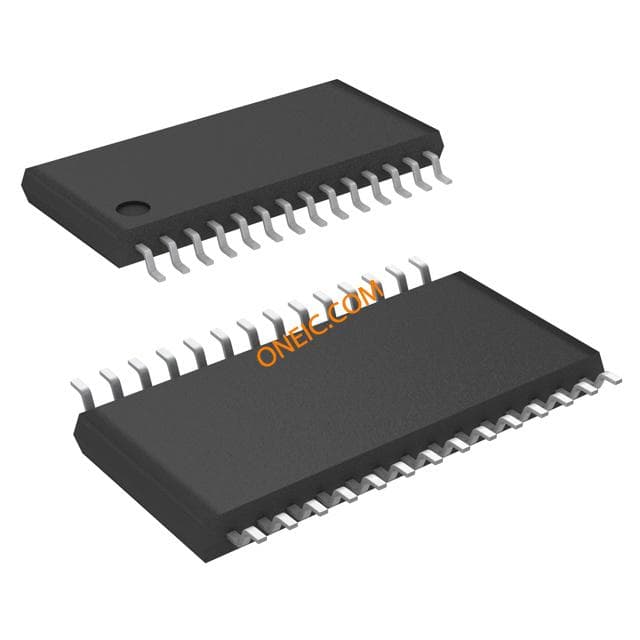

MSP430F2132IPW
