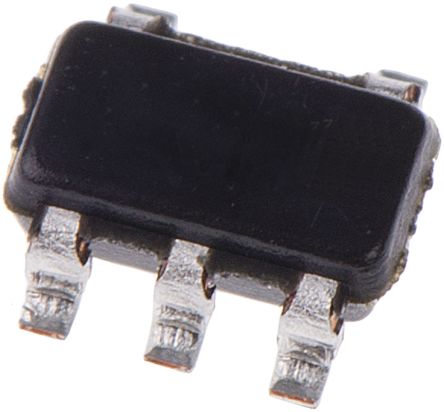

SN74LVC1GU04DBVT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Inverter 1-Element CMOS 5-Pin SOT-23 T/R IC SINGLE INVERTER GATE SOT23-5 Inverters SINGLE INVERTER GATE LOGIC, SINGLE INVERTER GATE, 5SOT23 Single Inverter Gate CMOS 反相器, CMOS 1.65 → 5.5 V, 5针 SOT-23封装 |
| 分类 |
商业参数
| 其他名称 | 296-32313-1 | 产品类别 | Inverters |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电压 | 1.8 2.5 3.3 5 | 输入类型 | CMOS/TTL |
| 逻辑类型 | LVC | 输出类型 | CMOS |
| 最大功率 | -32 | 位数 | 1 |
| 额定电压 | 1.8|2.5|3.3|5 V | 输出电流 | :32mA |
| 输入数量 | 1 | 供电电压 | 1.65 V ~ 5.5 V |
| 传播延迟 | 50 pF | 元件数量 | 1 |
| 最大额定电流 | Catalog | 输出1频率 | 150 |
| 施密特触发器输入 | No | 最小输入电压 | 1.65 |
| 电源电压（最大） | 5.5 | 最小供电电压 | 1.65 V |
| 静态电流 (Iq) | 10 uA | 传播延迟时间 | 3 ns |
| 输入逻辑高电平 | CMOS | 静态电流（最大） | 10µA |
| 输出高/低电流 | 32 mA | 输出源/灌电流 | 32/-32 |
| 最大传播延迟 @ V, 最大CL | 3.7@3.3V|3@5V ns | 传播延迟 tpLH / tpHL（最大） | 5.5 4.5 4.2 3.5 |
机械参数
| 宽度 | 1.75(Max) | 重量 | 0.000557 oz |
| 包装方式 | Tape and Reel | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 导体类型 | Gull-wing |
| 安装样式 | SMD/SMT | 引脚数 | :5 |
| 封装形式 | 5SOT-23 | 冷却的封装 | SOT-23 |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3.05(Max) |
| 包装数量 | 250 | SMALL T&R | 位数 | 5 |
| 外壳尺寸-插件 | 1.3(Max) | 供应商器件封装 | SOT-23-5 |
| 绝对牵引范围（APR） | 5 | ||
产品信息
| 系列 | SN74LVC1GU04 | 已删除 | Compliant |
| 工艺（或'制程'，根据具体值如CMOS） | CMOS | 功能 | Inverter |
| 安装位置 | Inverter | 软件 | SCES215V |
| 技术 | CMOS | 电路数 | 1 |
| 射频系列/标准 | LVC | 使用的IC/零件 | View |
| 其他规格 | 5 | 印刷电路板数量 | 5 |
| 设备部件号 | SOT-23 | 逻辑单元/单元数量 | 1 |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 85 °C |
