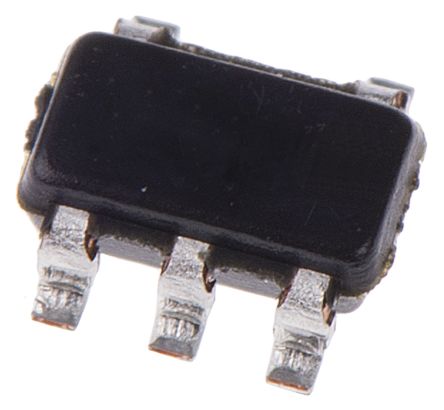

TPS3825-33DBVT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Processor Supervisor 2.93V 0V to 5.8V 5-Pin SOT-23 T/R IC 2.93V SUPPLY MONITOR SOT23-5 TPS3825-33DBVT, Processor Supervisor 0 to 5.8V Active High, Active Low, Reset 5-Pin SOT-23 Supervisory Circuits 2.93V Monitor SUPERVISORY CIRCUIT, 3825, SOT-23-5 Supervisor Integrated Circuit; processor, supervisory circuit Processor Supervisory Circuits Supervisor IC, Processor, SOT-23-5, TPS3825, TPS3825-33DBVT, Texas Instruments 处理器监控器, 0 至 5.8 V监控电压, 多种输出驱动, 复位功能, 5针 SOT-23封装 |
| 分类 |
商业参数
| 其他名称 | 296-2636-1 | 产品类别 | Supervisory Circuits |
| 标准包装数量 | Tape & Reel, Cut Tape | 工厂包装数量 | 250 |
| 标准封装名称 | SOT-23 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | :3825 | 抗辐射加固 | No |
电气参数
| 复位 | Yes | 输出端 | Active High/Active Low/Open Drain |
| 最大栅源电压 Vgs | 3 V | 延迟时间 | :200ms |
| 复位时间 | 200 ms | 输出类型 | Push-Pull |
| 输入信号 | No | 额定功率 | 0.437 W |
| 额定电压 | 1.1 V | 看门狗定时器 | No |
| 输出功能 | Active-low Push-pull | 输出电流 | 0.025 mA |
| 供电电流 | 25 uA | 供电电压 | 0 to 5.8 V |
| 元件数量 | 1 | 钳位电压 | 2.93 V |
| 阈值电压 | 2.93V | 最小输入电压 | 2.86 V |
| 最小供电电压 | 5.5 V | 最大功耗 | 437 mW |
| 最小接收功率 | No | 监控电压数量 | 1 |
| 输入失调电压（最大） | 0 to 5.8 V | 共模瞬态抗扰度（最小） | Industrial |
| 驱动电压（最大Rds On，最小Rds On） | 2,93 V | 保护电压（VP）（2416） | 5.8V |
机械参数
| 宽度 | 1.6mm | 高度 | 1.15mm |
| 长度 | 2.9mm | 重量 | 0.000013 |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :5 |
| 封装形式 | 5SOT-23 | 冷却的封装 | SOT-23 |
| 有效长度 | low, high | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 3.05(Max) | 包装数量 | SOT-23 |
| 尺寸/外形 | 2.9 x 1.6 x 1.15mm | 位数 | 5 |
| 外壳尺寸-插件 | 1.3(Max) | 供应商器件封装 | SOT-23-5 |
产品信息
| SPG | 250 | 类型 | Simple Reset/Power-On Reset |
| 系列 | TPS3825-33 | 已删除 | Compliant |
| 产品特性 | manual reset | 软件 | SLVS165J |
| 基本单元 | :3825 | 复位超时 | 120 ms Minimum |
| 电池系列 | No | 图案编号 | Y |
| 单元数量 | 1 | 复位操作 | open-drain |
| 功能框图 | alt_slvs165j.gif | 射频系列/标准 | TPS3825 |
| 使用的IC/零件 | processor, supervisory circuit | 监控器数量 | 1 |
| 印刷电路板数量 | 5 | 加载位置数 | 1 |
| 逻辑单元/单元数量 | :1 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
相关型号
SN74LVC1G08DCKR
texas instruments
AND Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R SINGLE POSITIVE AND GATE SC-70 Logic Gates Single 2-Input Pos IC, AND GATE, SINGLE 2-INPUT, SMD IC, AND GATE, SC-70-5, FULL REEL Single 2-Input Positive-AND Gate Logic IC SC-70-5, SN74LVC1G08, SN74LVC1G08DCKR, Texas Instruments Texas Instruments 逻辑门, CMOS输出, 32mA, 1.65 至 5.5 V, 5针 SC-70封装
SN74LVC1GU04DBVR
texas instruments
Inverter 1-Element CMOS 5-Pin SOT-23 T/R IC SINGLE INVERTER GATE SOT-23-5 Inverters Single Single Inverter Gate Logic IC SOT-23-5, SN74LVC1GU0, SN74LVC1GU04DBVR, Texas Instruments

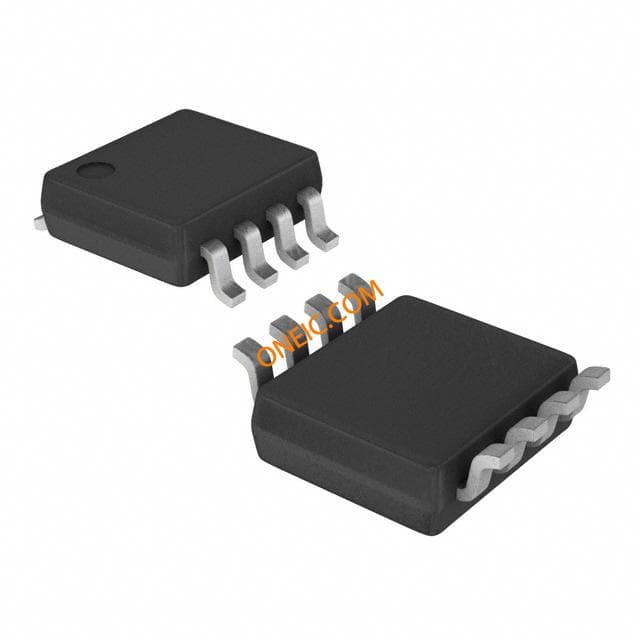

TXS0102DCUR
