点击放大查看

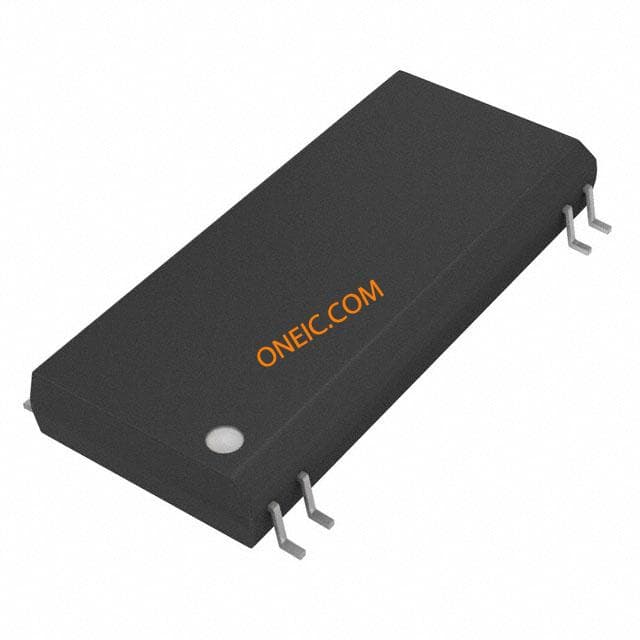

ISO124U
| 制造商 | Texas Instruments Incorporated |
| 描述 | SP Amp ISOL Amp Single ±18V 8-Pin SOP Tube IC OPAMP ISOLATION 50KHZ 8SOIC ISO124U, Isolation Amplifier, 8-Pin SOP SP Amp ISOL Amp Single �18V 8-Pin SOP Tube IC, ISOLATION AMP, 50KHZ, 2V/ uS, SOIC-8 Operational amplifier; 4.5÷18VDC; Channels:1; SO8 Precision Lowest Cost Isolation Amplifier Isolation Amplifier SO-28, ISO124, ISO124U, Texas Instruments Texas Instruments 隔离放大器, 8引脚 SOP封装 Isolation Amplifiers Precision Low Cost Isolation Amp |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85423300 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 增益 | 0 dB | 隔离 | 140 |
| 线性度 | 0.01 | 压摆率 | 2 V/µs |
| 输出类型 | No | 输入功率 | Dual |
| 上升时间（典型） | 2V/μs | 输出电流 | 5mA |
| 供电电压 | ±4.5 V | 漏电流 | 0.5 |
| 供电类型 | Dual | 通道数量 | 1 |
| 元件数量 | 1 | 输入电阻 | 0.2 MOhm |
| 隔离电压 | 2400 V | ADC/DAC 数量 | :1 |
| 最小输入电压 | 0(Typ) dB | 轨到轨工作 | No |
| 输出电流/通道 | 15mA | 电源电压范围（典型） | �5/�9/�12/�15 V |
| 输入失调电压（最大） | 50@±15V | ||
机械参数
| 宽度 | 7.5mm | 高度 | 2.3mm |
| 长度 | 17.9mm | 重量 | 0.00068 |
| 带宽 | :50kHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| -3dB带宽 | 50kHz | 引脚数 | :8 |
| 封装形式 | 8SOP | 冷却的封装 | SOP |
| 总长度 | 17.9 | 包装数量 | SOP |
| 尺寸/外形 | 2.3 x 17.9 x 7.5mm | 位数 | 8 |
| 外壳尺寸-插件 | 2.3 | 供应商器件封装 | 8-SOIC |
产品信息
| SPG | 10 | 类型 | Isolation Amplifier |
| 软件 | SBOS074D | 放大器类型 | Isolation |
| 单元数量 | 1 | 功能框图 | fbd_sbos074d.gif |
| 电路数 | 1 | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | ||
环境参数
| 测试温度 | -25 to 85 | 工作温度 | -25 to 85 °C |
相关型号
OPA237NA/250
texas instruments
OP Amp Single GP ±18V/36V 5-Pin SOT-23 T/R IC OPAMP GP 1.5MHZ SOT23-5 OP Amp Single GP �18V/36V 5-Pin SOT-23 T/R OP AMP, SINGLESUPPLY, SMD, SOT235 Single-Supply Operational Amplifiers MicroAmplifier(TM) Series Operational Amplifier Single 1.5 MHz SOT-23-5, OPA237, OPA237NA/250, Texas Instruments Texas Instruments 运算放大器, 1.4MHz, 5 V, 5针 SOT-23 Operational Amplifiers - Op Amps Sgl-Supply Op Amp MicroAmp Series
REF102AU
texas instruments
V-Ref Precision 10V 10mA 8-Pin SOIC Tube IC VREF SERIES PREC 10V 8-SOIC Voltage References Precision Voltage Reference IC, SM, VOLT REF, 10V Voltage reference source; 10V; SO8 Precision Voltage Reference Voltage reference 10 V SO-8, REF102, REF102AU, Texas Instruments Texas Instruments Fixed 10V 电压参考, ±0.1 %精确度, 40 V输入, 8针 SOIC封装
OPA177GP
texas instruments
OP Amp Single GP ±22V 8-Pin PDIP Tube IC OPAMP GP 600KHZ 8DIP OPA177GP, Operational Amplifier, 8-Pin PDIP Operational Amplifiers - Op Amps Precision Oper Amplifier OP Amp Single GP �22V 8-Pin PDIP Tube Operational amplifier; 600kHz; Channels:1; DIP8 Precision Operational Amplifier Operational Amplifier Single 600 kHz DIL-8, OPA177, OPA177GP, Texas Instruments Texas Instruments 运算放大器, 600kHz, 8针 PDIP Precision Amplifiers Precision Oper Amplifier
ISO150AU
texas instruments
Digital Coupler 12-Pin SOP Tube Digital Isolator CMOS 2-CH 80Mbps 12-Pin SOP Rail IC DGTL ISO 2CH CMOS 80MBD 12SOP Isolator Interface IC Dual Isol Bi-Dir Digital Coupler Integrated circuit: digital coupler; SO28; 3÷5.5VDC Texas Instruments 2通道 数字隔离器, 28针 SO
.jpg&w=3840&q=75)
MPY634KU
texas instruments
Analog Multiplier 4-Bit 16-Pin SOIC Tube IC WIDE BW PREC MULT 16-SOIC Multipliers / Dividers Wide BW Precision Analog Multiplier Wide Bandwidth Precision Analog Multiplier

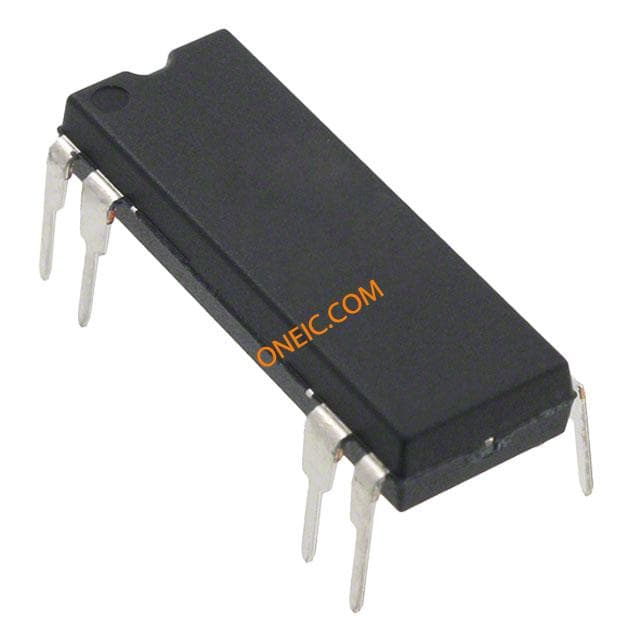

ISO122JPE4
