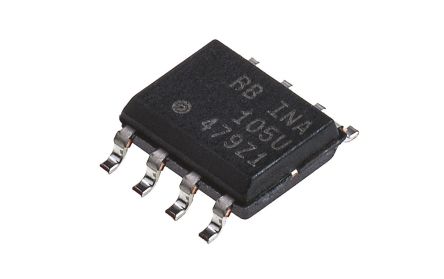

点击放大查看
INA105KU
| 制造商 | Texas Instruments Incorporated |
| 描述 | SP Amp DIFF AMP Single ±18V 8-Pin SOIC Tube IC OPAMP DIFFERENTIAL 1MHZ 8SOIC INA105KU, Differential Amplifier 8-Pin SOIC Differential Amplifiers Precision Unity Gain SP Amp DIFF AMP Single �18V 8-Pin SOIC Tube IC, OP-AMP DIFF 1MHZ SGL 8SOIC Operational amplifier; 50kHz; 5÷18VDC; Channels:1; SO8 Precision Unity Gain Differential Amplifier Instrumentation Amplifier SO-8, INA105KU, Texas Instruments 差分放大器, 8引脚 SOIC封装 |
| 分类 |
商业参数
| 产品类别 | Differential Amplifiers | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 75 | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 1 V/V | 压摆率 | 3 V/µs |
| 输出类型 | Differential | 输入功率 | Dual |
| 上升时间（典型） | 3V/μs | 晶体管类型 | :Precision |
| 共模抑制比、电源抑制比（典型） | 72dB | 输出电流 | 1.5mA |
| 供电电压 | ±5 V | 供电类型 | Dual |
| 通道数量 | 1 | 元件数量 | 1 |
| 输入电阻 | 0.05MΩ | 最大额定电流 | Catalog |
| ADC/DAC 数量 | :1 | 最小输入电压 | 0(Typ) dB |
| 增益带宽积 | 0.05 MHz | 轨到轨工作 | No |
| 静态电流 (Iq) | 1.5 | 输出电流/通道 | 20mA |
| 供电电压 (Vcc/Vdd) | 36 | 电源电压范围（典型） | �15 V |
| 频段（低/高） | 50kHz | 输入失调电压（最大） | 0.5mV |
| 共模瞬态抗扰度（最小） | 20 | ||
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 4.9mm | 重量 | 0.002677 oz |
| 带宽 | :1MHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | -3dB带宽 | 1MHz |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 5(Max) |
| 包装数量 | SOIC | 尺寸/外形 | 4.9 x 3.91 x 1.58mm |
| 位数 | 8 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 8-SOIC | ||
产品信息
| 类型 | Differential Amplifier | 系列 | INA105 |
| 软件 | SBOS145 | 基本单元 | :105 |
| 放大器类型 | Differential | 单元数量 | 1 |
| 电路数 | 1 | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
