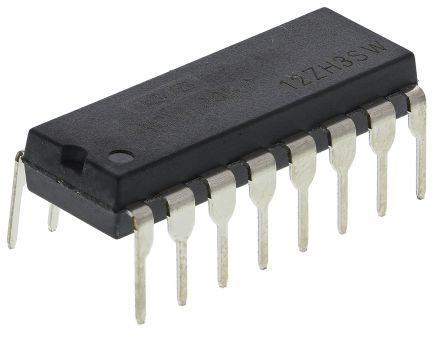

RCV420KP
| 制造商 | Texas Instruments Incorporated |
| 描述 | Current Loop Receiver 16-Pin PDIP Current Sense Amplifiers Precision 4-20mA Crnt Loop Rcvr IC OPAMP GP 150KHZ 16DIP RCV420KP, Current Loop Receiver 16-Pin PDIP Precision 4mA to 20mA Current Loop Receiver U/I converter IC DIL-16, RCV420, RCV420KP, Texas Instruments 电流回路接收器, 11.4 → 36 V, 16针 PDIP封装 Sensor Interface Precision 4-20mA Crnt Loop Rcvr |
| 分类 |
商业参数
| 其他名称 | Q625170 | 产品类别 | Current Sense Amplifiers |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 25 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 传感器 | Vref=10V | 压摆率 | 1.5 V/µs |
| 输入范围 | 4 to 20mA | 输出范围 | 0 to 5V |
| 输入功率 | ±15 V | 转换速率 | 1.5V/µs |
| 共模抑制比、电源抑制比（典型） | 86 dB | 输出电流 | 3mA |
| 供电电压 | 36 V | 失真额定值（如THD） | 0.002 |
| 输出数量 | 0...5 V | 电压基准 | 10 V |
| 输入偏置电流 | 4...20 mA | 失调电压漂移 | 25 |
| 最小输入电压 | 1000 uV | 增益带宽积 | 150kHz |
| 输出电流/通道 | 10mA | 供电电压 (Vcc/Vdd) | 36 |
| 输入失调电压（最大） | 1000 | 共模瞬态抗扰度（最小） | 86 dB |
机械参数
| 宽度 | 6.35mm | 高度 | 4.57mm |
| 长度 | 19.3mm | 重量 | 0.037172 oz |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | 16 | 封装形式 | 16PDIP |
| 冷却的封装 | PDIP | 总长度 | 19.69(Max) |
| 包装数量 | PDIP | 尺寸/外形 | 19.3 x 6.35 x 4.57mm |
| 位数 | 16 | 外壳尺寸-插件 | 5.08(Max) - 0.51(Min) |
| 供应商器件封装 | 16-PDIP | ||
产品信息
| 系列 | RCV420 | 功能 | PRECISION 4MA TO 20MA CURRENT LOOP RECEIVER |
| 软件 | SBVS019 | 制造商全称 | Texas Instruments |
| 放大器类型 | General Purpose | 电路数 | 1 |
| 使用的IC/零件 | View | 印刷电路板数量 | 16 |
环境参数
| 工作温度 | -25 to 85 °C | 结工作温度 | 85C |
