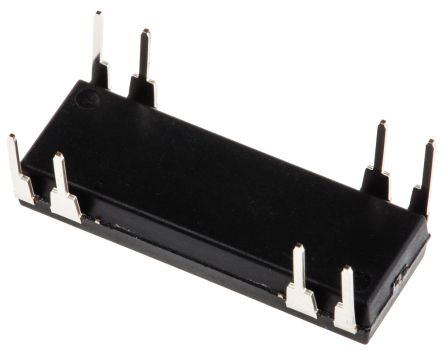

ISO122JP
| 制造商 | Texas Instruments Incorporated |
| 描述 | SP Amp ISOL Amp Single ±18V 8-Pin PDIP Tube IC OPAMP ISOLATION 50KHZ 16DIP ISO122JP, Isolation Amplifier, 8-Pin PDIP SP Amp ISOL Amp Single �18V 8-Pin PDIP Tube Operational amplifier; 50kHz; 4.5÷18VDC; Channels:1; DIP16 Precision Lowest Cost Isolation Amplifier Isolation Amplifier DIL-16, ISO122JP, Texas Instruments Texas Instruments 隔离放大器, 8引脚 PDIP封装 Isolation Amplifiers Precision Low Cost Isolation Amp |
| 分类 |
商业参数
| 产品 | Isolation Amplifiers | 标准包装数量 | Rail / Tube |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 0 dB | 隔离 | 140 |
| 线性度 | 0.02 | 压摆率 | 2 V/µs |
| 输出类型 | No | 线性范围 | ±0.05 % |
| 输入功率 | Dual | 隔离类型 | Capacitive, Galvanic |
| 共模抑制比、电源抑制比（典型） | 140 dB | 输出电流 | 5mA |
| 供电电流 | + / - 5 mA, + / - 5.5 mA | 供电电压 | ±4.5 V |
| 漏电流 | 0.5 | 供电类型 | Dual |
| 通道数量 | 1 | 元件数量 | 1 |
| 输入电阻 | 0.2 MOhm | 击穿电压 | 1500 VAC |
| 隔离电压 | 2400 | 最小输入电压 | 0(Typ) dB |
| 增益带宽积 | 0.02 % | 轨到轨工作 | No |
| 输出电流/通道 | 15mA | 电源电压范围（典型） | �5/�9/�12/�15 V |
| 频段（低/高） | 50kHz | 输入失调电压（最大） | 50@±15V |
| 双电源电压（V+/-） | ±12 V, ±15 V, ±5 V, ±9 V | ||
机械参数
| 宽度 | 6.61mm | 高度 | 3.94mm |
| 长度 | 20.01mm | 重量 | 2.03 g |
| 带宽 | 50 | 包装方式 | Tube |
| 引脚样式 | Through Hole | 安装类型 | Through Hole |
| -3dB带宽 | 50kHz | 安装样式 | Through Hole |
| 引脚数 | 8 | 封装形式 | 8PDIP |
| 冷却的封装 | PDIP | 总长度 | 20.01 |
| 包装数量 | PDIP | 尺寸/外形 | 3.94 x 20.01 x 6.61mm |
| 位数 | 8 | 外壳尺寸-插件 | 3.94 |
| 供应商器件封装 | 16-PDIP | ||
产品信息
| SPG | 25 | 类型 | Isolation Amplifier |
| 系列 | ISO122 | 软件 | SBOS160A |
| 制造商全称 | Texas Instruments | 放大器类型 | Isolation |
| 单元数量 | 1 | 功能框图 | fbd_sbos160a.gif |
| 电路数 | 1 | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | ||
环境参数
| 测试温度 | -25 to 85 | 工作温度 | -25 to 85 °C |
