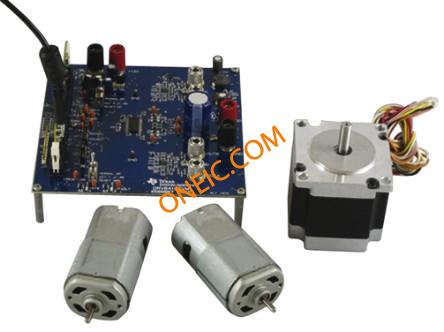

DRV8412-C2-KIT
| 制造商 | Texas Instruments Incorporated |
| 描述 | DRV8412 Integrated Motor Driver For Brushed And Stepper Motors With Piccolo F28035 ControlCARD Power Management IC Development Tools DRV8412 Integrated Motor Driver KIT EVAL W/F28035 FOR DRV8412 Dev,Kit, DRV8412 H-Bridge Motor Driver DRV8412, MOTOR DRIVER, EVAL KIT Texas Instruments DRV8412 电机驱动器 评估测试板 |
| 分类 |
商业参数
| 产品 | Power Management Development Tools | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | RoHS Not Applicable | 海关税号 | 85423190 |
电气参数
| 核心类型 | :C2000 | 接口 | USB |
| 位数 | :32 bit | 元件数量 | :TMS320F28 |
机械参数
| 重量 | 0.4 | ||
产品信息
| 类型 | Development Kit | 内容 | 2 Boards, Cables, Motors, Power Supply, Software |
| 嵌入式 | Yes, MCU, 32-Bit | 产品特性 | :Power Module Base Board, Control CARD Interface |

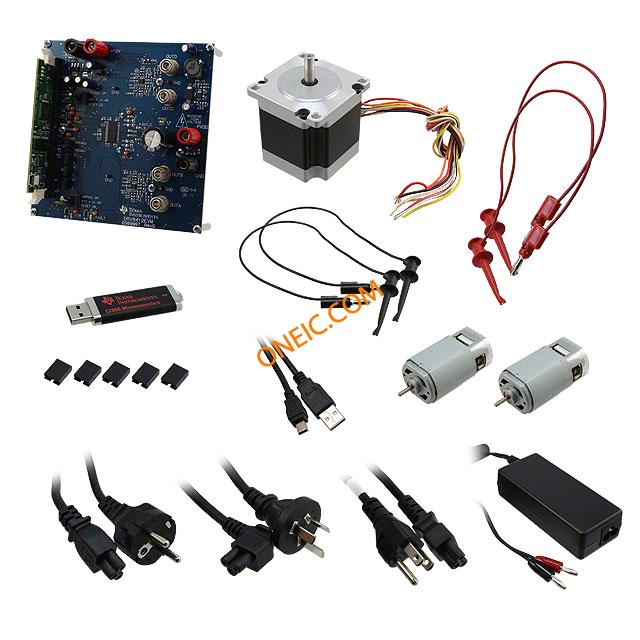

| 技术 | Motion Motor Control | 套件内容 | 2 Brushed Motors, C2000 Piccolo F28035 Control Card, CD with Software, Documentation, DRV8412 Power Module Base Board, GUI, Hardware Documents, Isolated XDS100 Emulation/Serial Connectivity, Motor Wiring, Power Supply, Stepper Motor, USB Cable, USB Stick |
| 主要用途 | Power Management, Motor Control | 制造商全称 | :Piccolo - TMS320F280xx |
| 卡标准 | Development Kit | 工具类型/特性 | DRV8412 |
| 主要特性 | Brushed and Stepper Motors, up to 6A Continuous / 12A Peak @ 50V | 使用的IC/零件 | DRV8412 |
| 芯片组制造商 | :Texas Instruments | 次要特性 | Graphic User Interface |
| 支持MCU系列 | :DRV8412, C2000 | ||
环境参数
| 工作温度 | + 85 C | ||
