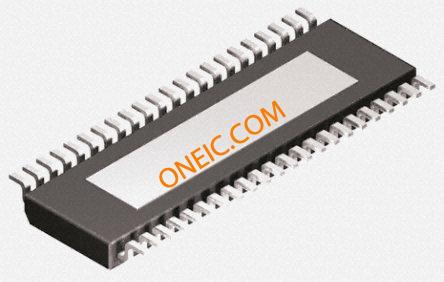

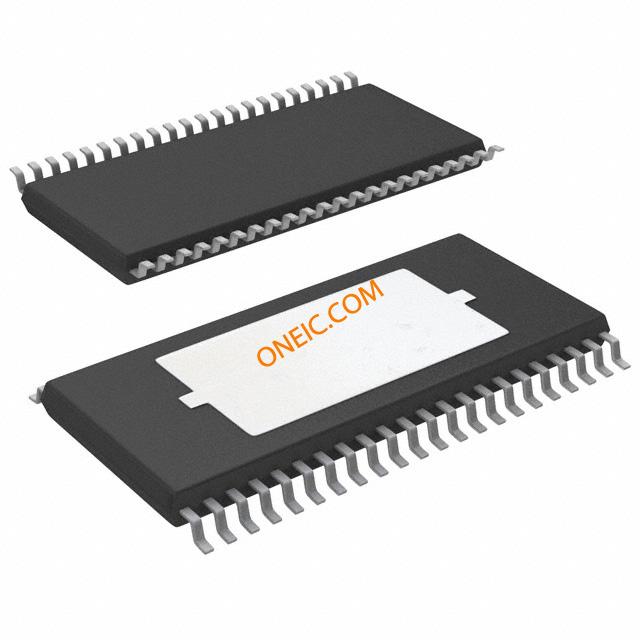

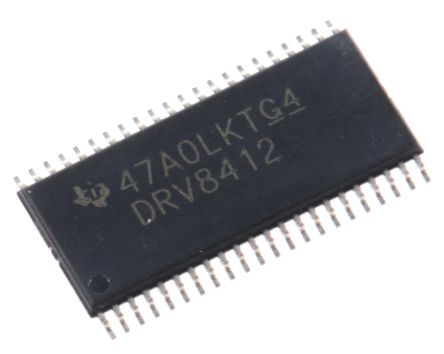

DRV8412DDW
| 制造商 | Texas Instruments Incorporated |
| 描述 | Dual Full Bridge Driver 50V 44-Pin HTSSOP EP Tube Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge PWM Motor Driver IC BRIDGE DRIVER PAR 44HTSSOP DRV8412DDW, Motor Driver, Motor Driver IC IC, MOTOR DRIVER, DL, 44HTSSOP 6A Dual Brushed DC or Single Bipolar Stepper Motor Driver (PWM Ctrl) Texas Instruments 电机驱动器 IC , 用于刷式直流, 6A, 500kHz, 3.2W, 0 → 52.5 V |
| 分类 |
商业参数
| 产品 | Fan / Motor Controllers / Drivers | 产品类别 | Motor / Motion / Ignition Controllers & Drivers |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 35 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 接口 | Parallel | 额定功率 | 3.2W |
| 负载电压 | 0 V ~ 52.5 V | 额定电压 | 0.2 V to 5 V |
| 输出电流 | 10.5 mA | 供电电压 | 50 V |
| 输出数量 | 2 | 最大额定电流 | 12 mA |
| 开关频率 | 500kHz | 最小输入电压 | 5 V |
| 电源电压（最大） | 8.5 V | 最小供电电压 | 52.5 V |
| 平均整流电流 Io | 12 mA | 集电极截止电流（最大） | 20A |
| 共模瞬态抗扰度（最小） | Industrial | ||
机械参数
| 宽度 | 6.2mm | 高度 | 1.05mm |
| 长度 | 14.1mm | 重量 | 0 |
| 包装方式 | Tube | 封装体颜色 | :HTSSOP |
| 引脚样式 | Gull-wing | 电机类型 | :Full Bridge |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :44 | 封装形式 | 44HTSSOP EP |
| 冷却的封装 | HTSSOP | 材料表面处理 | :MSL 3 - 168 hours |
| 总长度 | 14 | 包装数量 | HTSSOP EP |
| 尺寸/外形 | 14.1 x 6.2 x 1.05mm | 位数 | 44 |
| 外壳尺寸-插件 | 1.5 | 供应商器件封装 | 44-HTSSOP |
产品信息
| 类型 | Dual Full Bridge Driver | 系列 | DRV8412 |
| 已删除 | Compliant | 功能 | Power Bridge - Logic Driven Power Stage |
| 软件 | SLES242G | 基本单元 | :8412 |
| 应用 | General Purpose | 图案编号 | Y |
| 功能框图 | fbd_sles242g.gif | 使用的IC/零件 | View |
| 电机类型 - AC, DC | Brushed DC, PMSM | 电机类型 - 步进 | Bipolar |
| 输出配置 | Full H-Bridge, (2) Dual | 应用细节 | Full Bridge PWM Motor Driver |
| 印刷电路板数量 | 44 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
