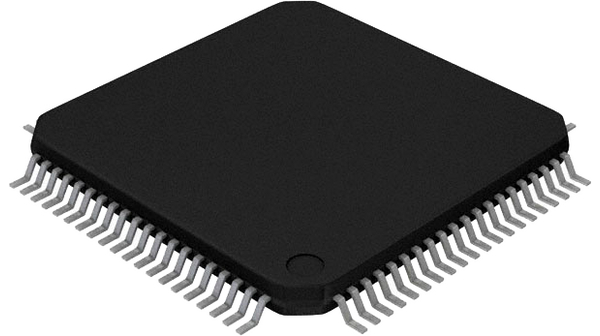

TMS320F28035PNS
| 制造商 | Texas Instruments Incorporated |
| 描述 | MCU 32-bit C2000 C28x RISC 128KB Flash 1.8V/3.3V 80-Pin LQFP Tray 32-bit Microcontrollers - MCU Piccolo Microcntrlr IC MCU 32BIT 128KB FLASH 80LQFP MCU, 32BIT, 128K FLASH, 80LQFP Piccolo Microcontroller Microcontroller 32 Bit LQFP-80, TMS320 F28035, TMS320F28035PNS, Texas Instruments |
| 分类 |
商业参数
| 商标名 | Piccolo | 产品类别 | 32-bit Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 119 |
| 标准封装名称 | QFP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 认证机构 | No |
电气参数
| GPIO | 33 45 | 转速 | 60 MHz |
| 定时器 | 3 32-Bit GP 1 WD | RAM 大小 | 20 KB |
| 内核大小 | 32-Bit | 核心类型 | C28x |
| 频率 | 60 | 接口 | CAN/I2C/SPI/UART |
| 时钟速率 | 60 MHz | 存储器容量 | 10 KB |
| I/O 数量 | 45 | 位数 | 12 |
| 核心电压 | :1.8V | 额定电压 | 1.71|2.97 |
| 看门狗定时器 | 1 | 数据转换器 | A/D 16x12b |
| 振荡器类型 | Internal | 串行协议 | 1 |
| 供电电压 | 1.8|3.3 V | RS-232（422、485） | 1 |
| 模拟输入/输出 | 12-Bit | 程序存储器大小 | 128 KB |
| 程序存储器类型 | Flash | 工作频率 | :60MHz |
| ADC/DAC 数量 | 16 | 最小供电电压 | 1.995|3.63 |
| 供电电压 (Vcc/Vdd) | 1.71 V ~ 1.995 V | 峰值脉冲电流（8/20µs） | 60 |
机械参数
| 宽度 | 12.2(Max) | 重量 | 0.3 |
| 包装方式 | Tray | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :80 | 封装形式 | 80LQFP |
| 材料表面处理 | :- | 总长度 | 12.2(Max) |
| 包装数量 | LQFP | 位数 | 80 |
| 外壳尺寸-插件 | 1.45(Max) | 核心数/总线宽度 | 32 Bit |
| 脉冲宽度失真（最大） | 12 14 | ||
产品信息
| SPI | 2 | 类别 | 1 |
| 系列 | TMS320F2x | 产品特性 | CAN Controller |
| 功能 | C28x | 协议 | 1 |
| 软件 | SPRS584J | 闪存大小 | :128KB |
| 片内RAM（通道数×位宽） | 16-chx12-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 连接性 | CAN, I²C, LIN, SCI, SPI, UART/USART |
| 核心处理器 | C28x | 图案编号 | Y |
| 定时器数量 | 3 | 功能框图 | fbd_sprs584j.gif |
| 射频系列/标准 | C2000 | 使用的IC/零件 | View |
| DigiKey可编程 | Yes | 其他规格 | :60 |
| 印刷电路板数量 | 80 | ||
