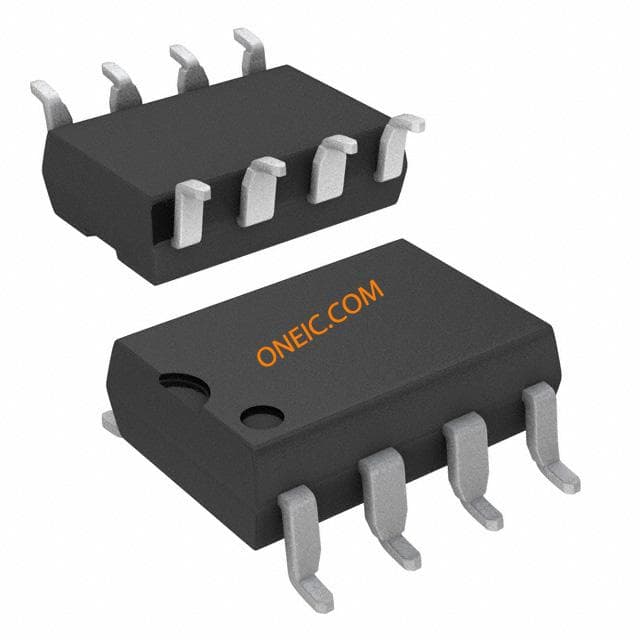

ISO1050DUBR
| 制造商 | Texas Instruments Incorporated |
| 描述 | ISOLATED 5V CAN TRANSCEIVER CAN 1Mbps 3.3V/5V 8-Pin SOP IC TXRX CAN 5V 8SOP Isolator Interface IC Iso 5V CAN Xcvr IC, CAN TRANSCEIVER, ISOLATED, 5V IC, CAN TXRX, 1MBPS, 1/1, 5V, SOP-8 IC, CAN, 1MBPS, 1TX/RX, SOP-8, FULL REEL Isolated 5-V CAN Transceivers Interface IC CAN SOP-8, ISO1050, ISO1050DUBR, Texas Instruments Digital Isolators Iso 5V CAN Xcvr |
| 分类 |
商业参数
| 其他名称 | 296-24818-2 | 产品类别 | Isolator Interface IC |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 350 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 标准 | ISO 11898 |
| 海关税号 | 85423990 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 数据速率 | 1Mbps | 接口 | :CAN |
| 额定功率 | 200 mW | 隔离电源 | Yes |
| 额定电压 | :5V | 数据速率（最大） | 1 Mbps |
| 输出电流 | 52 mA | 供电电流 | 3.6|73 |
| 供电电压 | 3|4.75 V | 通道数量 | 1 Channel |
| 接收器迟滞 | 150mV | 低功耗链路范围 | No |
| 最小供电电压 | 3/4.75 V | 传播延迟时间 | 74 ns |
| 击穿电压（最小） | -27 to 40 | ||
机械参数
| 宽度 | 6.67(Max) | 重量 | 0.0002 |
| 包装方式 | Tape & Reel (TR) | 封装体颜色 | :SOP |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8SOP |
| 冷却的封装 | SOP | 材料表面处理 | :MSL 4 - 72 hours |
| 总长度 | 9.55(Max) | 包装数量 | SOP |
| 位数 | 8 | 外壳尺寸-插件 | 3.35(Max) |
| 供应商器件封装 | 8-SOP | ||
产品信息
| 类型 | Transceiver | 双工模式 | Half |
| 系列 | ISO1050 | 已删除 | Compliant |
| 产品特性 | High Speed Galvanic Isolated | 协议 | CAN |
| 软件 | SLLS983I | 基本单元 | :1050 |
| 图案编号 | Y | 叠层数 | :1 |
| 功能框图 | fbd_slls983i.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | 驱动器/接收器数量 | 1/1 |
| 发射器/接收器数量 | 1 | ||
环境参数
| 测试温度 | -55 to 105 | 工作温度 | -55°C ~ 105°C |
| 结工作温度 | 150C | ||
文档与媒体
相关型号

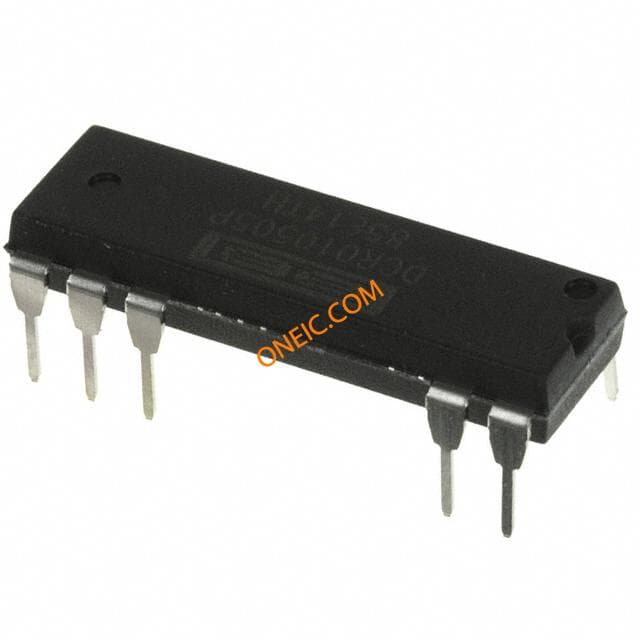

DCR010505P
