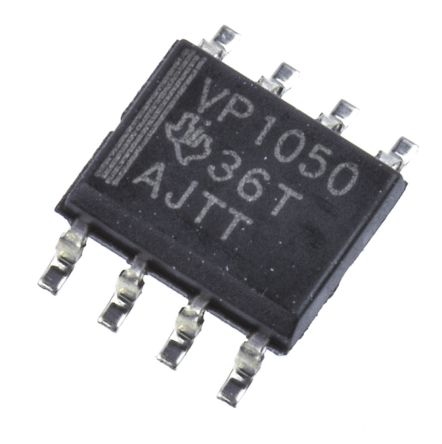

点击放大查看
SN65HVD1050D
| 制造商 | Texas Instruments Incorporated |
| 描述 | CAN 1Mbps Silent 5V 8-Pin SOIC Tube IC TRANSCEIVER CAN 8-SOIC CAN Transceiver 1Mbit/s ISO 11898, Silent-Mode, 8-Pin SOIC IC, CAN TRANSCEIVER, 1MBPS, 5V, 8SOIC High-Speed EMC Optimized CAN Transceiver Interface IC CAN SOIC-8, SN65HVD1050, SN65HVD1050D, Texas Instruments Texas Instruments 1MBps CAN 收发器, 支持ISO 11898标准, 静音断电, 8针 SOIC封装 CAN Interface IC High Speed EMC Opt CAN Transceiver |
| 分类 |
商业参数
| 其他名称 | 296-19416-5 | 标准包装数量 | Rail / Tube |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 标准 | ISO 11898 |
| 海关税号 | 85423190 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 数据速率 | 1 Mbps | 接口 | :CAN |
| I/O 数量 | :2 | 隔离电源 | No |
| 额定电压 | 4.75 V | 数据速率（最大） | 1 Mbps |
| 输出电流 | 70 mA | 供电电流 | 70 mA |
| 供电电压 | 4.75 V | 接收器迟滞 | 125mV |
| 最大额定电流 | Catalog | 低功耗链路范围 | No |
| 最小供电电压 | 5.25 V | 击穿电压（最小） | -27 to 40 |
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 4.9mm | 重量 | 0.000175 |
| 带宽 | :1MHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 5(Max) |
| 包装数量 | SOIC | 尺寸/外形 | 4.9 x 3.91 x 1.58mm |
| 位数 | 8 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 8-SOIC | ||
产品信息
| 类型 | Transceiver | 双工模式 | Half |
| 已删除 | Compliant | 产品特性 | High Speed Silent Mode |
| 协议 | CAN | 关断 | Silent |
| 软件 | SLLS632C | 基本单元 | :65 |
| 通信接口 | :CAN Transceiver | 叠层数 | :1 |
| 功能框图 | fbd_slls632c.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | 驱动器/接收器数量 | 1/1 |
| 发射器/接收器数量 | 1 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40°C ~ 125°C |
| 结工作温度 | 150C | ||
