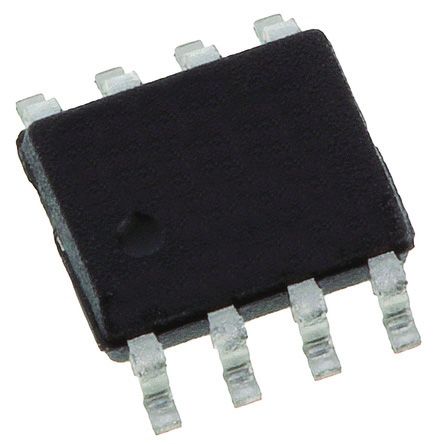

SN65HVD11QD
| 制造商 | Texas Instruments Incorporated |
| 描述 | Single Transmitter/Receiver RS-485 8-Pin SOIC Tube RS-485 Interface IC 3.3V RS485 IC TRANSCEIVER RS485 3.3V 8-SOIC 3.3V Differential Transceiver Texas Instruments 10MBps 线路收发器, RS-485接口, 差分接收器信号, 3.3 V, 8针 SOIC封装 |
| 分类 |
商业参数
| 产品 | RS-485 Transceivers | 其他名称 | 296-14013-5 |
| 产品类别 | RS-485 Interface IC | 标准包装数量 | Tape & Reel, Rail / Tube |
| 工厂包装数量 | 75 | 标准封装名称 | SOIC |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
| 故障保护 | -9 to 14 | ||
电气参数
| 数据速率 | 10(Max) Mbps | 接口 | EIA/TIA-485-A|ISO-8482:1993|RS-485 |
| 波特率 | 10 | 驱动类型 | 3-State |
| 短路失效 | Idle Open Short | 输入信号 | Differential |
| 信号类型 | Differential | 输出信号 | 差分 |
| 输入功率 | Single | 隔离电源 | No |
| 数据速率（最大） | Multipoint | 输出电流 | 9 mA |
| 供电电流 | 15.5 mA | 输入数量 | 1 |
| 供电电压 | 3.3 V | 输出数量 | 1 |
| 供电类型 | Single | 元件数量 | 1 |
| 接收器迟滞 | 35mV | 输入偏置电流 | 15.5 |
| 最大额定电流 | Catalog | 电源电压范围（典型） | Not Required V |
| 每极负载侧连接方式 | 256 | 共模瞬态抗扰度（最小） | Automotive |
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 4.9mm | 重量 | 0.002561 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | 8 | 封装形式 | 8SOIC |
| 冷却的封装 | SOIC | 总长度 | 5(Max) |
| 包装数量 | SOIC | 尺寸/外形 | 4.9 x 3.91 x 1.58mm |
| 位数 | 8 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 8-SOIC | ||
产品信息
| 类型 | Transceiver | 双工模式 | Half |
| 系列 | SN65HVD11 | 已删除 | Compliant |
| 功能 | Line Transceiver | 协议 | RS485 |
| 关断 | Yes | 软件 | SLLS505N |
| 制造商全称 | Texas Instruments | 通信接口 | RS-485 |
| 节点数 | 256 | 驱动器数量 | 1 |
| 功能框图 | fbd_slls505n.gif | 使用的IC/零件 | View |
| 接收器数量 | 1 | 印刷电路板数量 | 8 |
| 发射器数量 | 1 | 驱动器/接收器数量 | 1/1 |
| 发射器/接收器数量 | 1 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | - 40 C to + 125 C |
文档与媒体
相关型号
