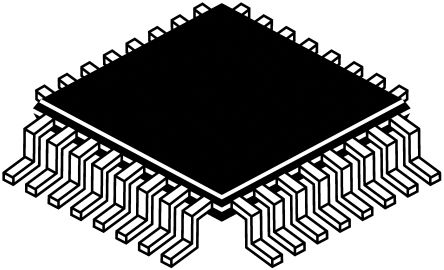

TUSB3410IVF
| 制造商 | Texas Instruments Incorporated |
| 描述 | USB To Serial Port Controller 32-Pin LQFP Tray USB Interface IC RS232/IrDA Ser-to-USB Converter USB TO SERIAL PORT CONTROLLER IC CTRLR SERIAL-TO-USB 32-LQFP TUSB3410IVF, USB Controller 12Mbit/s USB 2.0, 3.3V, 32-Pin, LQFP IC, USB TO SERIAL PORT CONTROLLER LQFP32 CONTROLLER, SERIAL-TO-USB, 32LQFP Interface; USB-UART; 3÷3.6VDC; LQFP32 RS232/IrDA Serial-to-USB Converter Texas Instruments 12MBps USB 控制器, 支持USB 2.0, 3.3 V, 32针 LQFP封装 |
| 分类 |
商业参数
| 产品 | USB 2.0 | 其他名称 | 296-16757 |
| 产品类别 | USB Interface IC | 标准包装数量 | Trays |
| 工厂包装数量 | 250 | 标准封装名称 | QFP |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| GPIO | 4 | 转速 | 2 |
| RAM 大小 | 18K x 8 | 内核大小 | 8 b |
| 核心类型 | 8052 | 数据速率 | 12 Mbps |
| 频率 | 24 MHz | 接口 | I2C, UART, USB |
| I/O 数量 | 4 | 最大频率 | 24 MHz |
| 供电电流 | 15 mA | 输入数量 | 3 |
| 供电电压 | 3.3 V | 输出数量 | 3 |
| 供电类型 | Single | 通道数量 | 1 |
| 程序存储器大小 | 10KB kB | 程序存储器类型 | ROM (10 kB) |
| 最大额定电流 | Catalog | 最小供电电压 | 3 V |
机械参数
| 宽度 | 7mm | 高度 | 1.4mm |
| 长度 | 7mm | 重量 | 0.006148 oz |
| 包装方式 | Tray | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :32 |
| 封装形式 | 32LQFP | 冷却的封装 | LQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 7.2(Max) |
| 包装数量 | LQFP | 尺寸/外形 | 7 x 7 x 1.4mm |
| 位数 | 32 | 外壳尺寸-插件 | 1.45(Max) |
| 供应商器件封装 | 32-LQFP (7x7) | ||
产品信息
| SPG | 250 | USB | Full |
| 类型 | interface | 系列 | TUSB3410 |
| 产品特性 | Bulk Transfer Control Transfer DMA Interrupt Transfer Remote Wakeup | 协议 | USB 2.0 |
| 软件 | SLLS519H | 基本单元 | :3410 |
| 等级代码 | 16 | 应用 | USB Serial Port Controller |
| 架构 | CISC | 可编程性 | Yes |
| 核心处理器 | 8052 | 图案编号 | Y |
| 端口数 | :3 | 单元数量 | 1 |
| 定时器数量 | 2 | 控制器系列 | TUSB |
| 使用的IC/零件 | View | 电机类型 - AC, DC | :USB to UART |
| 印刷电路板数量 | 32 | 发射器/接收器数量 | 1 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
文档与媒体
相关型号
TMS320F2806PZA
texas instruments
DSP Fixed-Point 32-Bit 100MHz 100MIPS 100-Pin LQFP Digital Signal Processors & Controllers - DSP, DSC 32-Bit Digital Sig Controller w/Flash IC MCU 32BIT 64KB FLASH 100LQFP TMS320F2806PZA, 32bit Digital Signal Processor 100MHz 64kb Flash, 20kb RAM, 100-Pin LQFP 32-bit Microcontrollers - MCU 32-Bit Digital Sig Controller w/Flash DSC, 32BIT, 64K FLASH, 100MHZ, 100LQFP 32-Bit Digital Signal Controller with Flash Texas Instruments 32bit 数字信号处理器 DSP, 100MHz, 64 kB ROM 闪存, 20 kB RAM, 100针 LQFP封装
SN75240P
texas instruments
ESD Suppressor TVS 15KV 8-Pin PDIP Rail ESD Suppressors Dual USB Port IC DUAL USB PORT TVS 8-DIP TVS Diode SN75240P, PDIP 8-Pin Dual USB Port Transient Suppressor Texas Instruments TVS 二极管, 8针 PDIP封装 TVS Diode Arrays Dual USB Port
MSP430F1612IPM
texas instruments
MCU 16-Bit MSP430 RISC 55KB Flash 3.3V 64-Pin LQFP MCU 16-bit MSP430 MSP430 RISC 55KB Flash 3.3V 64-Pin LQFP Tray IC MCU 16BIT 55KB FLASH 64LQFP MSP430F1612IPM, 16 bit Microcontroller MSP430 8MHz 55, 256kB, B Flash, 5kb RAM, I2C SPI 64-Pin LQFP MSP430 FLASH MCU, SMD, LQFP64, 430 Microcontroller; Flash:55kB; RAM:5kB; 8MHz; QFP64 16-bit Ultra-Low-Power MCU, 55kB Flash, 5120B RAM, 12-Bit ADC, Dual DAC, 2 USART, I2C, HW Mult, DMA Texas Instruments MSP430 系列 16 bit MSP430 MCU, 8MHz, 256 B，55 kB ROM 闪存, 5 kB RAM, 64针 LQFP封装 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
SN65HVD11QD
texas instruments
Single Transmitter/Receiver RS-485 8-Pin SOIC Tube RS-485 Interface IC 3.3V RS485 IC TRANSCEIVER RS485 3.3V 8-SOIC 3.3V Differential Transceiver Texas Instruments 10MBps 线路收发器, RS-485接口, 差分接收器信号, 3.3 V, 8针 SOIC封装
SN65HVD11D
texas instruments
Single Transmitter/Receiver RS-485 8-Pin SOIC Tube IC TRANSCEIVER RS485 3.3V 8-SOIC RS-485 Interface IC 3.3V RS485 RS485 DIFFERENTIAL TRANS, 65HVD11 Line transmitter-receiver; RS485; 3.3VDC; SO8 3.3V Differential Transceiver Logic IC SOIC-8, SN65HVD11, SN65HVD11D, Texas Instruments Texas Instruments 10MBps 线路收发器, RS-485接口, 差分接收器信号, 3.3 V, 8针 SOIC封装
TUSB3210PM
texas instruments
USB CONTROLLER FOR STORAGE Universal Serial Bus Controller 64-Pin LQFP Full Speed General Purpose Device Controller USB 2.0 3.3V Tray 64-Pin LQFP IC USB CNTRLR STORAGE 64-LQFP USB Interface IC USB 2.0 8052-Based Gen Purpose MCU UNIVERSAL SERIAL BUS GENERAL-PURPOSE DEVICE CONTROLLER IC, USB CONTROLLER, 12MBPS, LQFP-64 IC, CONTROLLER, USB, 64LQFP Universal Serial Bus General-Purpose Device Controller
SN75240PWG4
texas instruments
ESD Suppressor TVS 15KV 8-Pin TSSOP Rail ESD Suppressors Dual USB Port Transient Suppressor IC DUAL USB PORT TVS 8-TSSOP TVS Diode SN75240PWG4, TSSOP 8-Pin IC, USB PORT SUPPRESSOR DUAL, 75240 Dual USB Port Transient Suppressor
TRSF3221ECDB
texas instruments
Single Transmitter/Receiver RS-232 16-Pin SSOP Tube IC SNG RS-232 DVR/RCVR 16-SSOP RS-232 Interface IC 3V-5.5V Sgl-Ch RS232 1Mbit Line Drvr/Rcvr IC, SNG RS-232 DVR/RCVR 16-SSOP 3-V to 5.5-V Single-Channel RS-232 1-Mbit/s Line Driver/Receiver With +/-15-kV IEC ESD Protection Texas Instruments 1MBps 线路收发器, RS-232接口, 3 → 5.5 V, 16针 SSOP封装

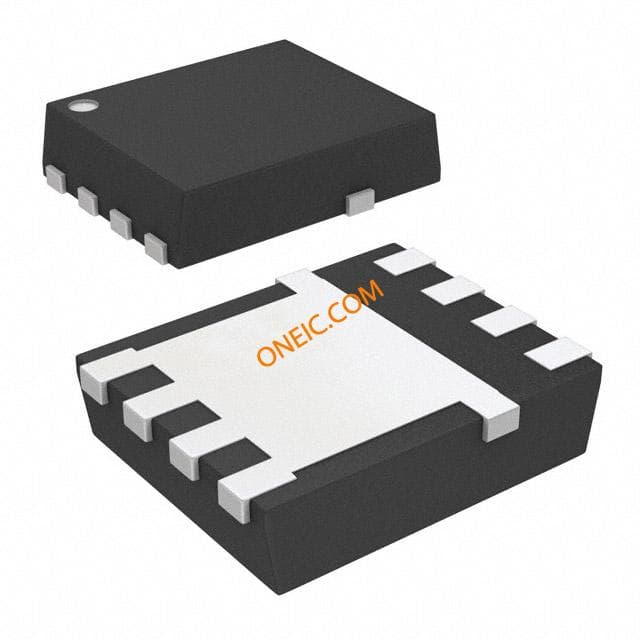

CSD16407Q5
