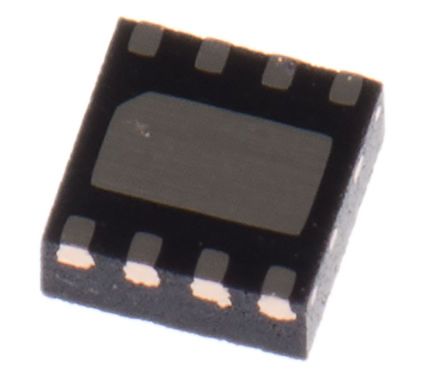

CSD16407Q5
| 制造商 | Texas Instruments Incorporated |
| 描述 | Trans MOSFET N-CH 25V 31A 8-Pin SON EP T/R MOSFET N-CH 25V 100A 8-SON FET, N CH, SINGLE, 25V, 8SON N-Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 100 A, Vds=25 V, 8针 SON封装 MOSFET N-Ch NexFET Power MOSFETs |
| 分类 |
商业参数
| 其他名称 | 296-24252-2 | 标准包装数量 | Tape & Reel |
| 标准封装名称 | SON | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | ||
电气参数
| FET类型 | MOSFET N-Channel, Metal Oxide | 最大栅源电压 Vgs | 16 V |
| FET特性 | Standard | 最大功率 | 3.1W |
| 下降时间（典型） | 9 ns | 晶体管类型 | :N Channel |
| 首抽头延迟 | 16 ns | 元件数量 | 1 |
| Vgs(th)（最大）@ Id | 1.9V @ 250µA | 击穿电压 | 25 V |
| 阈值电压 | :1.6V | 最大额定电流 | :100A |
| 导通电阻 RDS(On) | :1.8mohm | 触点电压（最大） | :25V |
| 导通电阻 Rds(on) (最大) @ Id, Vgs | 3.3@10V mOhm | 最大功耗 | :3.1W |
| 传播延迟（最大） | 18.4 ns | 集电极-发射极饱和电压（最大）@ Vge, Ic | 25 |
| 逻辑电压 - VIL, VIH | Yes | 导通电阻（最大） | 3.3@10V |
| 栅极电荷（Qg）（最大）@ Vgs | 18nC @ 4.5V | 峰值脉冲电流（8/20µs） | 200 |
| 开关时间（Ton, Toff）（最大） | 11.9 ns | 漏源电压（Vdss） | 25V |
| 峰值脉冲电流（10/1000µs） | 31 A | 输入电容（Ciss）（最大）@ Vds | 2660pF @ 12.5V |
| 连续漏极电流（Id）@ 25°C | 31A (Ta), 100A (Tc) | ||
机械参数
| 宽度 | 6.1(Max) | 重量 | 0.0001 |
| 包装方式 | Tape and Reel | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 引脚数 | :8 |
| 封装形式 | 8SON EP | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 5.1(Max) | 包装数量 | SON EP |
| 位数 | 8 | 外壳尺寸-插件 | 1.05(Max) |
| 供应商器件封装 | 8-SON | ||
产品信息
| 软件 | SLPS203A | 通道类型 | Enhancement |
| 配置 | Single | 图案编号 | Y |
| 使用的IC/零件 | View | 其他规格 | 3.5 |
| 印刷电路板数量 | 8 | ||
环境参数
| 测试温度 | -55 to 150 | 工作温度 | -55 to 150 °C |
文档与媒体
相关型号

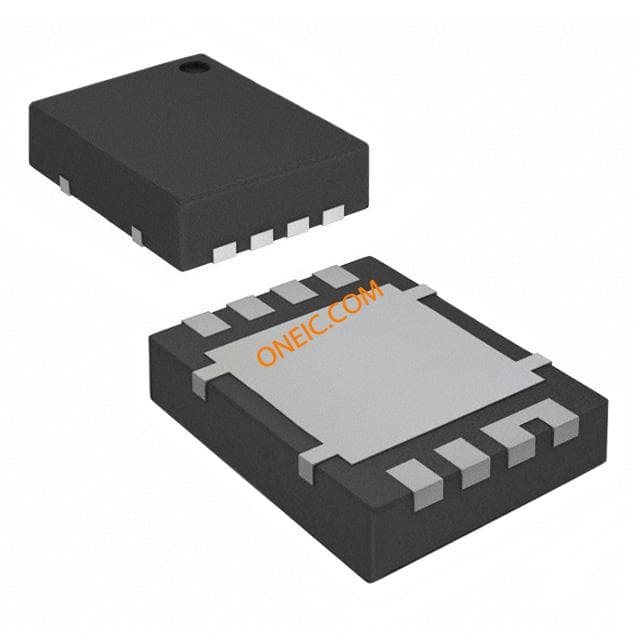

CSD86350Q5D
texas instruments
Synchronous Buck NexFET Power Block 8-Pin SON T/R MOSFET N-CH 25V 40A 8SON Synchronous Buck NexFET™ Power Block MOSFET Pair Texas Instruments 双 N沟道 Si MOSFET 模块 , 120 A, Vds=25 V, 8针 SON封装 MOSFET Synch Buck NexFET Pwr Block MOSFET
TMS320F2806PZA
texas instruments
DSP Fixed-Point 32-Bit 100MHz 100MIPS 100-Pin LQFP Digital Signal Processors & Controllers - DSP, DSC 32-Bit Digital Sig Controller w/Flash IC MCU 32BIT 64KB FLASH 100LQFP TMS320F2806PZA, 32bit Digital Signal Processor 100MHz 64kb Flash, 20kb RAM, 100-Pin LQFP 32-bit Microcontrollers - MCU 32-Bit Digital Sig Controller w/Flash DSC, 32BIT, 64K FLASH, 100MHZ, 100LQFP 32-Bit Digital Signal Controller with Flash Texas Instruments 32bit 数字信号处理器 DSP, 100MHz, 64 kB ROM 闪存, 20 kB RAM, 100针 LQFP封装
TPS51100DGQ
texas instruments
LDO Regulator Neg/Pos -0.1V to 3.6V 3A 10-Pin HTSSOP EP Tube LDO Regulator Neg/Pos -0.1V to 3.6V 3A 10-Pin HVSSOP EP Tube IC REG 3A SINK/SOURCE DDR 10MSOP Hot Swap Controller TPS51100DGQ, Linear, HTSSOP EP, 10-Pin LDO Voltage Regulators 3A Source/Sink DDR Terminator Regulator IC, V REG, DDR, SMD 3A Source/Sink DDR terminator Regulator Texas Instruments LDO 调节器, 可调输出, 3A, -0.1 → 3.6 V输出, 1.73W, 10针 MSOP封装 Power Management Specialized - PMIC 3A Source/Sink DDR Terminator Regulator
CSD16410Q5A
texas instruments
Trans MOSFET N-CH 25V 16A 8-Pin SON EP T/R MOSFET N-Ch NexFET Power MOSFETs MOSFET N-CH 25V 59A 8-SON FET, N CH, SINGLE, 25V, 8SON N-Channel NexFET™ Power MOSFET
TUSB3410IVF
texas instruments
USB To Serial Port Controller 32-Pin LQFP Tray USB Interface IC RS232/IrDA Ser-to-USB Converter USB TO SERIAL PORT CONTROLLER IC CTRLR SERIAL-TO-USB 32-LQFP TUSB3410IVF, USB Controller 12Mbit/s USB 2.0, 3.3V, 32-Pin, LQFP IC, USB TO SERIAL PORT CONTROLLER LQFP32 CONTROLLER, SERIAL-TO-USB, 32LQFP Interface; USB-UART; 3÷3.6VDC; LQFP32 RS232/IrDA Serial-to-USB Converter Texas Instruments 12MBps USB 控制器, 支持USB 2.0, 3.3 V, 32针 LQFP封装
TPS54620RHLT
texas instruments
Conv DC-DC Single Step Down 1.6V to 17V 14-Pin VQFN EP IC REG BUCK SYNC ADJ 6A 14QFN Voltage Regulators - Switching Regulators 4.5-17Vin,6A Syn Step Down Cnvrtr DC-DC CONV, BUCK, 1.6MHZ, QFN-14 4.5V to 17V Input, 6A Synchronous Step-Down SWIFT™ Converter Texas Instruments 直流-直流转换器, 降压，同步, 6A, 4.5 → 17 V输入, 0.8 → 15 V输出, 1.6 MHz, 14针 QFN封装 Switching Voltage Regulators 4.5-17Vin,6A Syn Step Down Cnvrtr

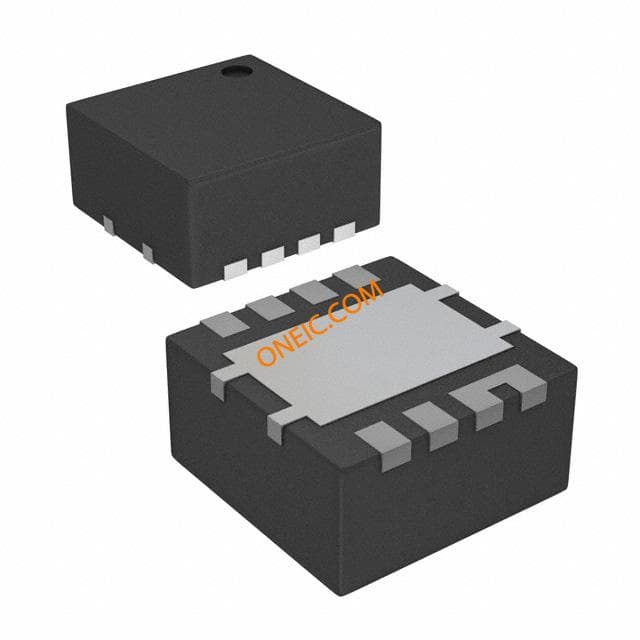

CSD86330Q3D
