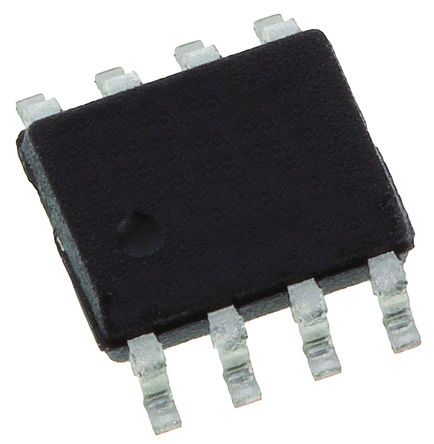

SN65HVD07D
| 制造商 | Texas Instruments Incorporated |
| 描述 | Single Transmitter/Receiver RS-485 8-Pin SOIC Tube IC RS-485 TXRX HIGH OUT 8-SOIC RS-485 Interface IC RS485 Hi Out TRANSCEIVER RS-485, 65HVD07, SOIC8 High-Output RS-485 Transceiver Texas Instruments 1MBps 线路收发器, RS-485接口, 差分接收器信号, 5 V, 8针 SOIC封装 |
| 分类 |
商业参数
| 其他名称 | 296-12990-5 | 产品类别 | RS-485 Interface IC |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 75 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | :65HVD07 | 抗辐射加固 | No |
| 故障保护 | -9 to 14 | ||
电气参数
| 数据速率 | 1 Mbps | 接口 | EIA/TIA-485-A|RS-485-A |
| 波特率 | 1 | 驱动类型 | 3-State |
| 短路失效 | Idle Open Short | 输入信号 | Differential |
| 信号类型 | Differential | 输入功率 | Single |
| 隔离电源 | No | 数据速率（最大） | Multipoint |
| 输出电流 | 9 mA | 供电电流 | 15 |
| 输入数量 | 1 | 供电电压 | 5 V |
| 输出数量 | 1 | 供电类型 | Single |
| 接收器迟滞 | 35mV | 输入偏置电流 | 15 |
| 最大额定电流 | Catalog | 电源电压范围（典型） | Not Required V |
| 共模瞬态抗扰度（最小） | Industrial | ||
机械参数
| 宽度 | 4(Max) | 重量 | 0.002561 oz |
| 包装方式 | Tube | 封装体颜色 | :SOIC |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8SOIC |
| 冷却的封装 | SOIC | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 5(Max) | 包装数量 | SOIC |
| 位数 | 8 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 8-SOIC | ||
产品信息
| 类型 | Transceiver | 双工模式 | Half |
| 系列 | SN65HVD07 | 已删除 | Compliant |
| 功能 | Line Transceiver | 协议 | RS485 |
| 关断 | No | 软件 | SLLS533E |
| 基本单元 | :65 | 通信接口 | RS-485 |
| 节点数 | 256 | 驱动器数量 | 1 |
| 使用的IC/零件 | View | 接收器数量 | 1 |
| 印刷电路板数量 | 8 | 发射器数量 | 1 |
| 驱动器/接收器数量 | 1/1 | 发射器/接收器数量 | 1 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40°C ~ 85°C |
