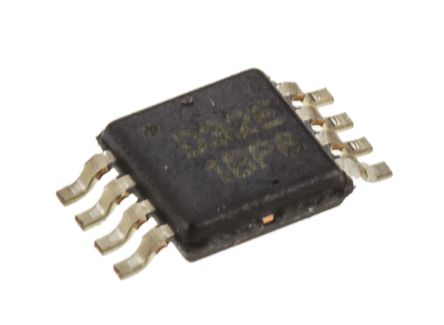

DAC8532IDGK
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 2-CH Resistor-String 16-bit 8-Pin VSSOP Tube Digital to Analog Converters - DAC 16-Bit Dual Ch Low Power DAC IC D/A CONV 2CH LP 16BIT 8VSSOP DAC8532IDGK, 16-Bit 16 Bit DAC Dual, 93ksps, SPI, Microwire, 8-Pin MSOP, VSSOP 16BIT DUAL DAC, SMD, 8532, MSOP8 16-Bit, Dual Channel, Low Power D-to-A Converter W/ Serial I/F and Rail-to-Rail Voltage Output D/A converter IC 16 Bit VSSOP-8, DAC8532, DAC8532IDGK, Texas Instruments Texas Instruments 双 16 位 DAC, 93ksps, SPI, Microwire接口, 8针 MSOP封装 |
| 分类 |
商业参数
| 产品类别 | Digital to Analog Converters - DAC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 80 | 标准封装名称 | SSOP |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85235290 |
| 零件状态 | :8532 | 抗辐射加固 | No |
电气参数
| 接口 | Serial (3-Wire, SPI, QSPI, Microwire) | 线性度 | :0.0987% |
| 信噪比 | 94(Typ) dB | 满量程 | -1 %FSR |
| 输入类型 | :Serial | 分辨率 | 16 Bit |
| 输出类型 | Voltage | 输出范围 | 0 |
| INL/DNL（LSB） | ±0.0987 %FSR | 输入功率 | Single |
| 建立时间 | 10 us | 转换器类型 | General Purpose |
| 数据接口 | Serial | 位数 | 16 |
| 基准类型 | Ext | 数据速率（最大） | 93 Ksps |
| DAC数量 | 2 | 输出电流 | :500µA |
| 供电电压 | 5.5 V | 失真额定值（如THD） | +/- 0.0987 % FSR |
| 输出数量 | 2 | 供电类型 | Single |
| 分辨率（位） | :16bit | 电压基准 | External |
| 通道数量 | 2 | 采样频率 | :93kSPS |
| 最大额定电流 | Catalog | 供电电源 | Single Supply |
| 增益带宽积 | 1 | 上升/下降时间（典型） | :10µs |
| 平均正向功率 | 1.35 | 最大功耗 | :607mW |
| 输出数量与类型 | 2 Voltage, Unipolar; 2 Voltage, Bipolar | 采样率（每秒） | 93k |
| 电源电压范围（典型） | Not Required V | ||
机械参数
| 宽度 | 3.1(Max) | 重量 | 0.000917 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8VSSOP | 冷却的封装 | VSSOP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 3.1(Max) |
| 包装数量 | VSSOP | 位数 | 8 |
| 外壳尺寸-插件 | 0.95(Max) | 供应商器件封装 | 8-VSSOP |
产品信息
| 系列 | DAC8532 | 软件 | SBAS246B |
| 基本单元 | :8532 | 架构 | Resistor-String |
| 功能框图 | alt_sbas246b.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | A/D转换器数量 | 2 |
环境参数
| 测试温度 | -40 to 105 | 工作温度 | -40 to 105 °C |
| 结工作温度 | 105C | ||
