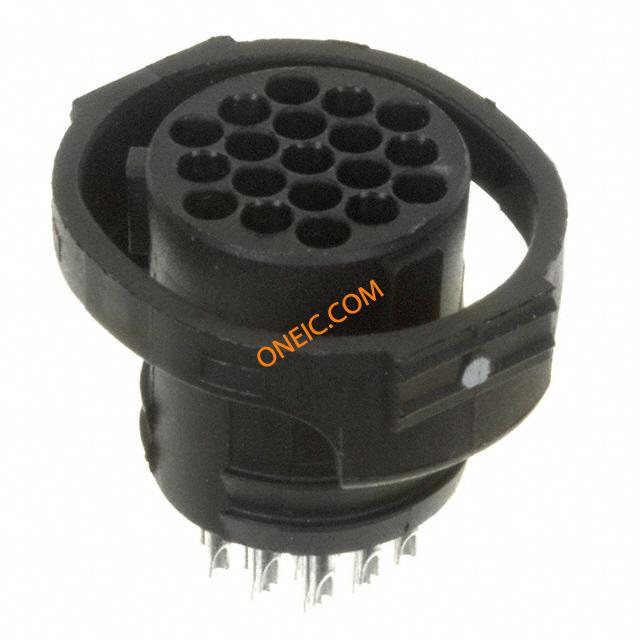

点击放大查看
2-1445782-3
| 制造商 | |
| 描述 | Standard Circular Connector PLUG ASSY M13.5 Micro CPC (Circular Plastic Connector) CONN PLUG CPC 19POS SOLDER CUP |
| 分类 |
商业参数
| 其他名称 | A99410 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 3,040 | 工厂包装数量 | 76 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 2A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | M13.5 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder Cup | 触头类型 | Socket |
| 外壳颜色 | Black | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Tin over Nickel |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 锁定特性 | Positive | 壳体材料 | Thermoplastic |
| 端接样式 | Solder Cup | 第一触头极性 | Socket (Female) |
| 配接方向 | Threaded | 位数 | 19 |
| 外壳尺寸-插件 | M13.5 | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 连接器性别 | Plug | 系列 | Micro CPC |
| 产品特性 | Spring Probe | 产品子类型 | Connectors |
| 加载位置数 | 19 | ||
环境参数
| 机械寿命 | Obsolete | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 工作温度 | 105°C Max | ||
