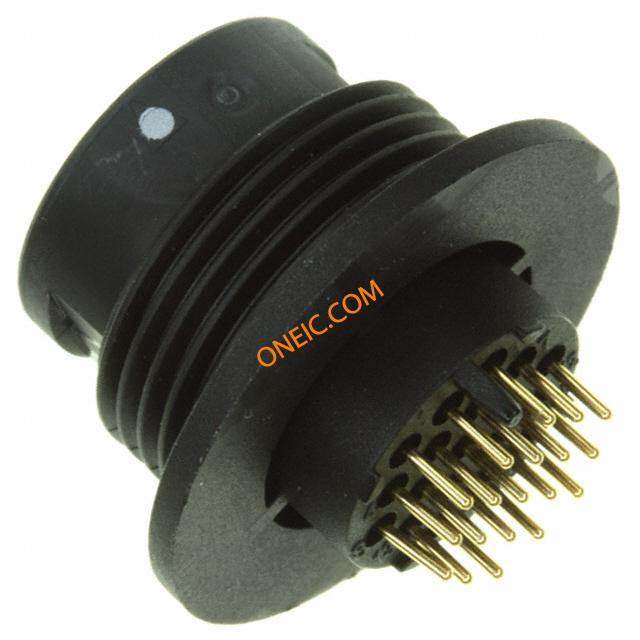

1445778-1
| 制造商 | |
| 描述 | Conn Micro CPC PIN 19 POS Solder ST Panel Mount 19 Terminal 1 Port Micro CPC (Circular Plastic Connector) CONN RCPT CPC 19POS PANL SLDTAIL Conn Micro CPC PIN 19 POS Solder ST Panel Mount 19 Terminal 1 Port Product Highlights:ConnectorReceptacleContact Type = PinNumber of Positions = 1919 Loaded Positions |
| 分类 |
商业参数
| 其他名称 | A29971 | 标准包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 2A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | M13.5 |
| 方向 | Keyed | 端接方式 | Solder |
| 螺纹尺寸 | 5/8-24 | 触头类型 | Pin |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold (30) |
| 紧固类型 | Latch Lock | 安装样式 | Panel |
| 锁定特性 | Positive | 壳体材料 | Thermoplastic |
| 端接样式 | Solder Tail | 位数 | 19 |
| 外壳尺寸-插件 | M13.5 | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 连接器性别 | Receptacle | 产品子类型 | Connector |
| 加载位置数 | 19 | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | 105°C Max |
