点击放大查看

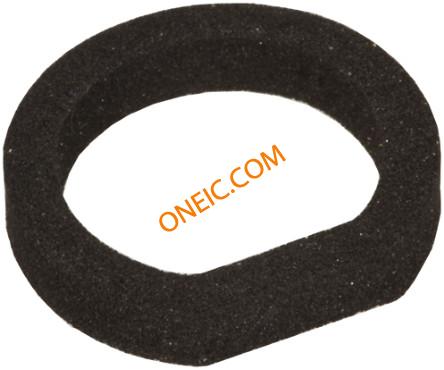

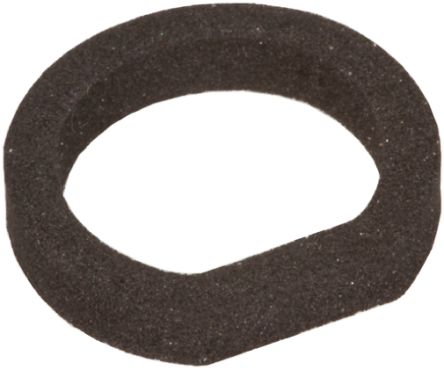

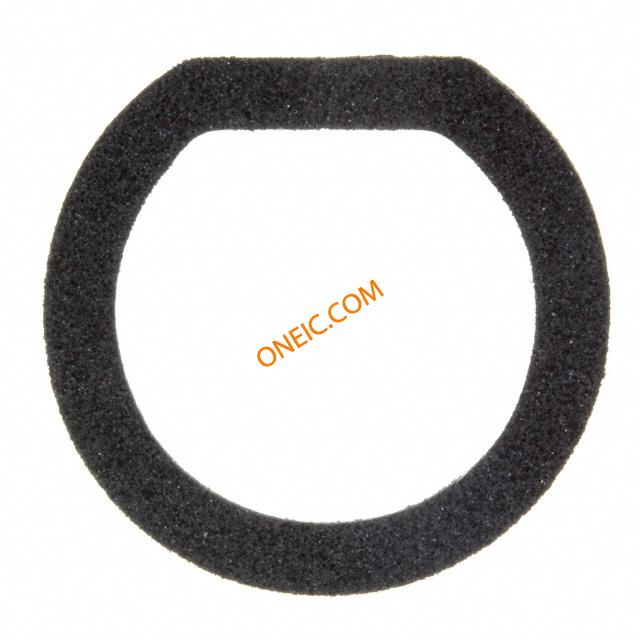

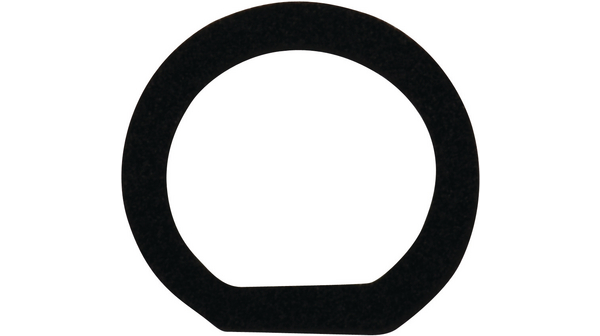

1445420-1
| 制造商 | |
| 描述 | Connector Accessories Flange Seal Neoprene Black Miniature CPC (Circular Plastic Connector) CONN FLANGE SEAL 13.5MM SHELL Circular Connector Seal Standard Circular Connector FLANGE SEAL M13.5 Connector Accessories Flange Seal Neoprene Black Product Highlights:Flange SealAccessory Type = Flange SealShell Size = 8Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector FLANGE SEAL, CIRCULAR PLASTIC CONNECTOR microCpc(Circularplastickconnector Shell Size 8 Flange Seal Miniature Circular Plastic Connector Flange for 4-pin, 1445420-1, TE Connectivity IP67 flange seal shell,8 size SEAL,FLANGE, SIZE 8/M13.5 |
| 分类 |
商业参数
| 商标名 | CPC Miniature | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 重量 | 0.000001 |
| 材料（通用） | Neoprene | 外壳尺寸 | 8 |
| 外壳镀层 | Tin Lead over Nickel | 配接方向 | Threaded |
| 触点数 | 19 | 外壳尺寸-插件 | 8 |
产品信息
| 类型 | Seal | 系列 | CPC |
| 产品特性 | Jam Nut | 产品子类型 | Flange Seal |
| 附件类型 | Flange Gasket | 射频系列/标准 | 1445420 |
| 有铅工艺兼容 | :Yes | 适用产品/相关产品 | Miniature CPC |
环境参数
| 密封等级 | Seal | ||
