点击放大查看

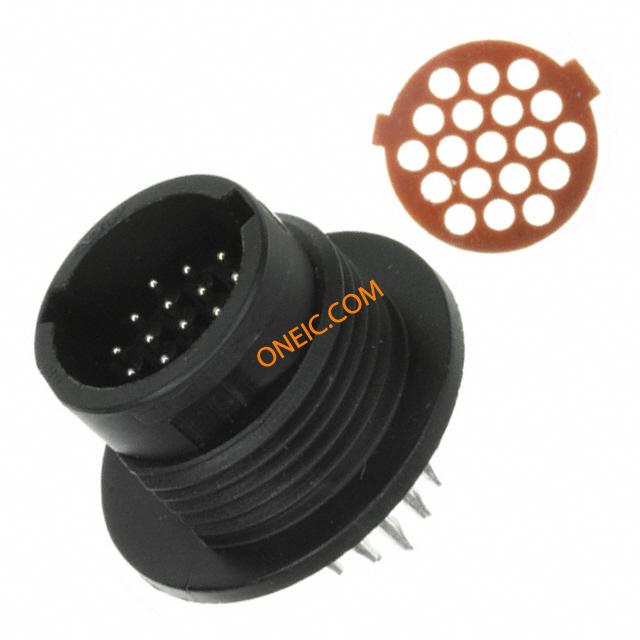

1445759-1
| 制造商 | |
| 描述 | Standard Circular Connector PM RECP SLDR CUP 19P spring probe Micro CPC (Circular Plastic Connector) CONN RCPT CPC 19POS PANL SLD CUP Conn Micro CPC PIN 19 POS Solder ST Panel Mount 19 Terminal 1 Port Connector;SpringProbe;PanelMount;SolderCup;M13.5;19;Positive |
| 分类 |
商业参数
| 其他名称 | A29960 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
电气参数
| 灯类型 | Positive | 额定电压 | 250V |
| 最大额定电流 | 2A | ||
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 出线方向 | Overmolded | 外壳尺寸 | M13.5 |
| 导线线规 | 24-30 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder Cup |
| 螺纹尺寸 | 5/8-24 | 触头类型 | Spring Probe |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 外壳镀层 | Tin Lead over Nickel | 行程角度 | Straight |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Tin-Lead over Nickel |
| 紧固类型 | Latch Lock | 安装样式 | Panel |
| 锁定特性 | Positive | 壳体材料 | Thermoplastic |
| 主要材料 | CircularPlasticConnector | 端接样式 | Solder Cup |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 19 | 位数 | 19 |
| 外壳尺寸-插件 | M13.5 | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 连接器性别 | Receptacle | 系列 | Micro CPC |
| 产品特性 | Spring Probe | 产品子类型 | Connectors |
| 应用细节 | Commercial | 加载位置数 | 19 |
环境参数
| 机械寿命 | Obsolete | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 工作温度 | 105°C Max | ||
