点击放大查看

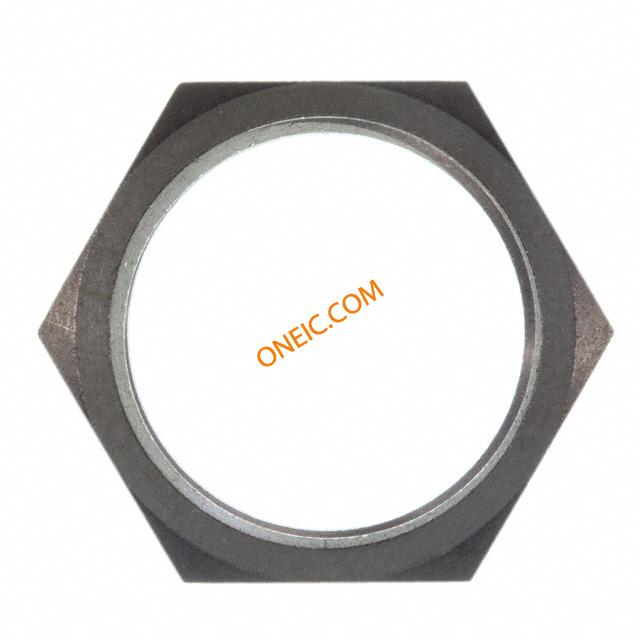

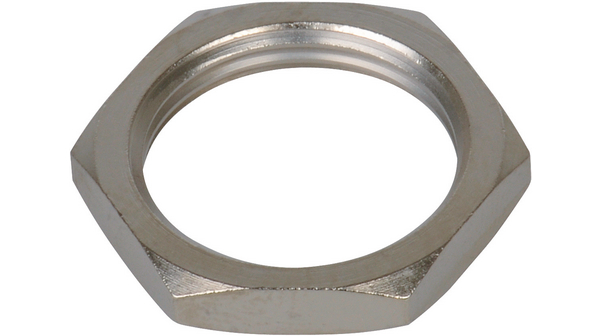

1604196-1
| 制造商 | |
| 描述 | Connector Accessories Jam Nut Brass Nickel Plated Bulk Micro CPC (Circular Plastic Connector) CONN JAM NUT FOR M8 SHELL IP67 miniature CPC jam nut,8 size Standard Circular Connector JAM NUT M13.5/MINI 8 Connector Accessories Jam Nut Brass Nickel Plated Bulk Product Highlights:Jam NutShell Size = M13.5Thread Size = 5/8-24Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector FASTENERS, NUTS Connector;5/8-24;JamNut;RoHS,ELVCompliants Locknut for 4pol, 1604196-1, TE Connectivity TE Connectivity 锁紧螺母, 使用于微型 CPC 连接器 NUT,JAM,5/8-24,PKG QTY 100 |
| 分类 |
商业参数
| 商标名 | CPC Miniature | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 73182300 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Silver | 深度 | 19.05 mm |
| 宽度 | :0.75" | 高度 | :0.125" |
| 重量 | 0.000001 | 材料（通用） | Brass, Nickel Plated |
| 包装方式 | Bulk | 外壳尺寸 | M13.5 |
| 螺母镀层 | Nickel | 螺纹尺寸 | 5/8-24 |
| 螺母材料 | Brass | 外壳镀层 | Nickel |
| 总长度 | 3.18mm | 配接方向 | Threaded |
| 触点数 | 19 | 外壳尺寸-插件 | M8 |
| 螺纹/螺钉/孔尺寸 | :5/8-24 | ||
产品信息
| 类型 | Nut | 系列 | CPC |
| 已删除 | Compliant | 产品特性 | 5/8-24 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Jam Nut |
| 附件类型 | Jam Nut | 射频系列/标准 | 1604196 |
| 有铅工艺兼容 | :Yes | 适用产品/相关产品 | Micro CPC Connectors |
环境参数
| 工作温度 | -55C to 105C | ||
