点击放大查看

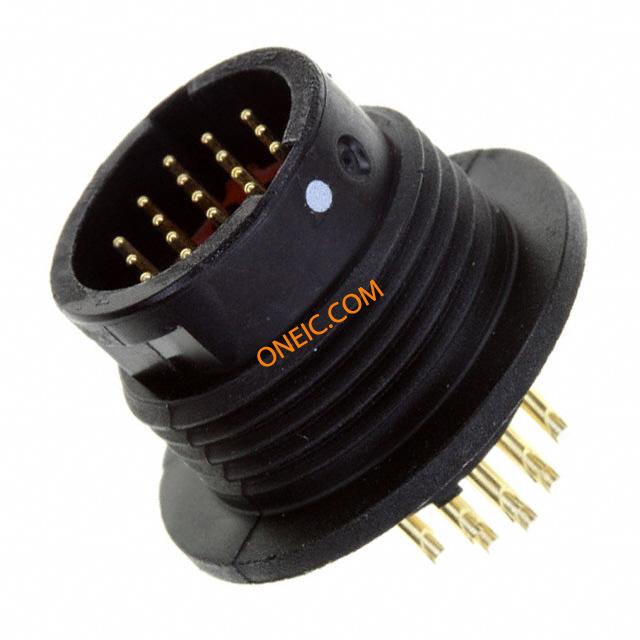

1445779-1
| 制造商 | |
| 描述 | Conn Micro CPC PIN 19 POS Solder ST Panel Mount 19 Terminal 1 Port Standard Circular Connector PM RECP SLDR CUP 19P pin and socket Micro CPC (Circular Plastic Connector) CONN RCPT CPC 19POS PANL SLD CUP Connector;PinandSocket;PanelMount;SolderCup;M13.5;19;Positive |
| 分类 |
商业参数
| 其他名称 | A29970 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 1,520 | 工厂包装数量 | 76 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 灯类型 | Positive | 额定电压 | 250 V |
| 最大额定电流 | 3 A | ||
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 出线方向 | Overmolded | 外壳尺寸 | M13.5 |
| 导线线规 | 24-30 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder Cup |
| 螺纹尺寸 | 5/8-24 | 触头类型 | Pin |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 外壳镀层 | Tin Lead over Nickel | 行程角度 | Straight |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Latch Lock | 安装样式 | Panel |
| 锁定特性 | Positive | 壳体材料 | Thermoplastic |
| 主要材料 | CircularPlasticConnector | 端接样式 | Solder Cup |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 19 | 位数 | 19 |
| 外壳尺寸-插件 | M13.5 | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 连接器性别 | Receptacle | 系列 | Micro CPC |
| 产品子类型 | Connectors | 应用细节 | Commercial |
| 加载位置数 | 19 | ||
环境参数
| 机械寿命 | Obsolete | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 工作温度 | 105°C Max | ||
