点击放大查看

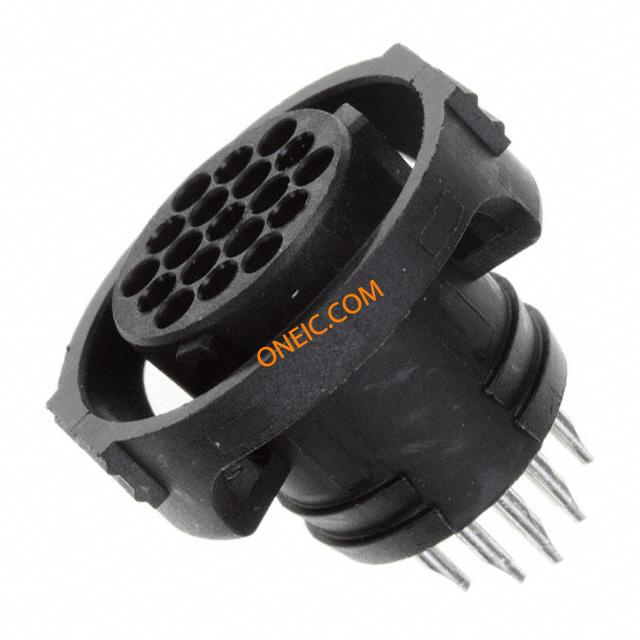

1445782-1
| 制造商 | |
| 描述 | Standard Circular Connector PLUG SOLDER CUP 19P pin and socket Micro CPC (Circular Plastic Connector) CONN PLUG CPC 19POS SOLDER CUP Conn Micro CPC SKT 19 POS Solder ST Cable Mount 19 Terminal 1 Port Conn Micro CPC SKT 19 POS Solder ST Cable Mount 19 Terminal 1 Port Product Highlights:ConnectorPlugContact Type = SocketNumber of Positions = 1919 Loaded Positions |
| 分类 |
商业参数
| 其他名称 | A29965 | 标准包装数量 | 76 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 2A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | M13.5 |
| 方向 | Keyed | 端接方式 | Solder Cup |
| 触头类型 | Socket | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Tin-Lead over Nickel | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 锁定特性 | Positive |
| 壳体材料 | Thermoplastic | 端接样式 | Solder Cup |
| 位数 | 19 | 外壳尺寸-插件 | M13.5 |
| 外壳材料及表面处理 | Thermoplastic | ||
产品信息
| 连接器性别 | Plug | 产品特性 | Spring Probe |
| 产品子类型 | Connector | 加载位置数 | 19 |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | 105°C Max |
