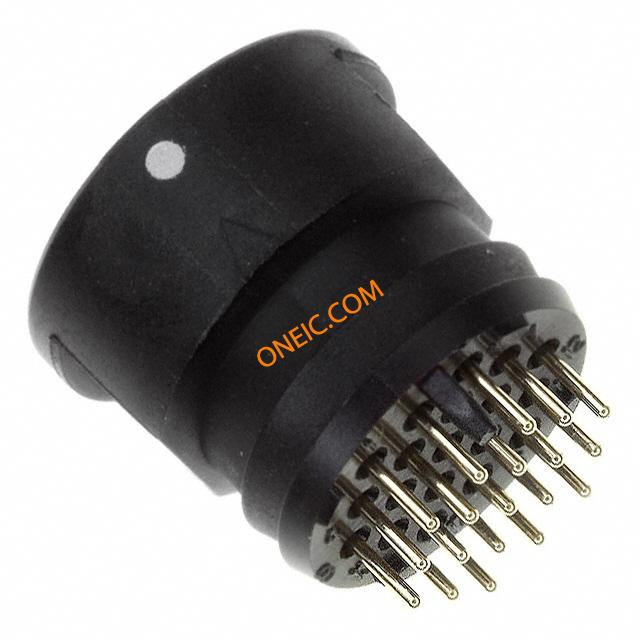

点击放大查看
1445772-1
| 制造商 | |
| 描述 | Standard Circular Connector FH RECP SLDR TAIL 19 pin and socket Micro CPC (Circular Plastic Connector) CONN RCPT CPC 19POS FREE SLDTAIL Conn Micro CPC PIN 19 POS Solder ST Thru-Hole 19 Terminal 1 Port Conn Micro CPC PIN 19 POS Solder ST Thru-Hole 19 Terminal 1 Port Product Highlights:ConnectorReceptacleContact Type = PinNumber of Positions = 1919 Loaded Positions |
| 分类 |
商业参数
| 其他名称 | A29973 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 1,824 | 工厂包装数量 | 76 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 3 A |
机械参数
| 包装方式 | Tube | 外壳尺寸 | M13.5 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder | 触头类型 | Pin |
| 外壳颜色 | Black | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Tin Lead over Nickel | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 锁定特性 | Positive |
| 壳体材料 | Thermoplastic | 端接样式 | Solder Tail |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 19 | 位数 | 19 |
| 外壳尺寸-插件 | M13.5 | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 连接器性别 | Receptacle | 系列 | Micro CPC |
| 产品子类型 | Connectors | 加载位置数 | 19 |
环境参数
| 机械寿命 | Obsolete | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 工作温度 | 105°C Max | ||
