点击放大查看

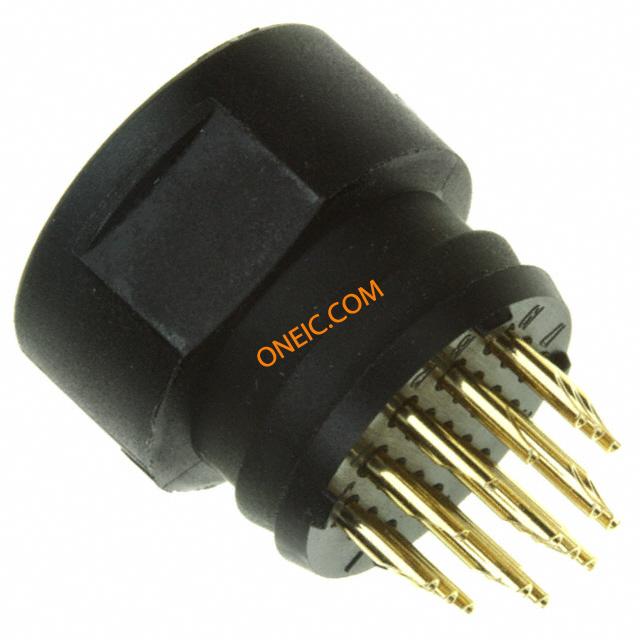

1445773-1
| 制造商 | |
| 描述 | Standard Circular Connector FH RECP SLDR CUP 19P pin and socket Micro CPC (Circular Plastic Connector) CONN RCPT CPC 19POS FREE SLD CUP |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | A29972 | 标准包装数量 | 1,520 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 2A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | M13.5 |
| 方向 | Keyed | 端接方式 | Solder Cup |
| 触头类型 | Pin | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold (30) | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 锁定特性 | Positive |
| 壳体材料 | Thermoplastic | 端接样式 | Solder Cup |
| 位数 | 19 | 外壳尺寸-插件 | M13.5 |
| 外壳材料及表面处理 | Thermoplastic | ||
产品信息
| 连接器性别 | Receptacle | 产品子类型 | Connector |
| 加载位置数 | 19 | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | 105°C Max |
