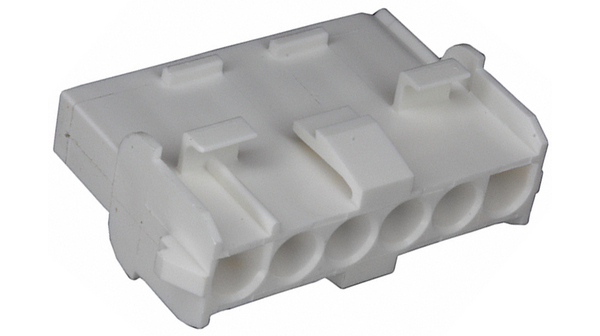

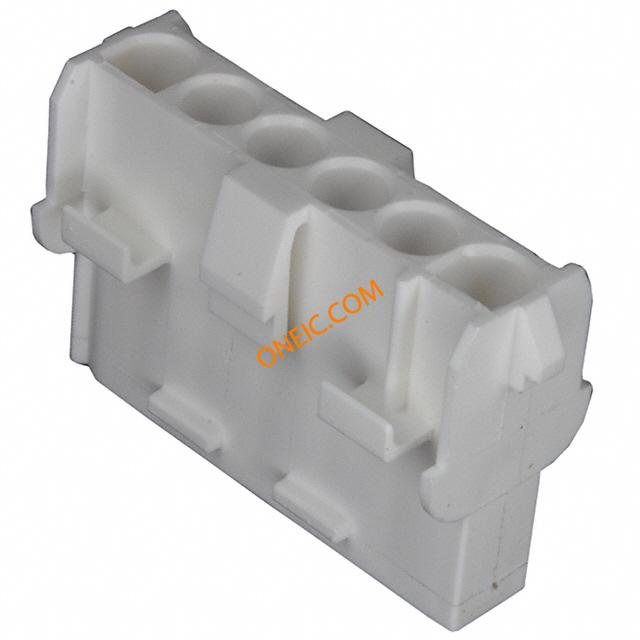

926307-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 6POS 94V-0 UNI-MATE Housing,cap,Mate-n-lok,1 row,6Way,Natrl Pin & Socket Connectors 6 P IN-LINE CAP Conn Housing RCP 6 POS 6.35mm Crimp ST Panel Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Housing,UniversalMATE-N-LOK,6Position,PositiveLock,BrickRed Receptacle housing Pitch6.35 mm Poles 6 Single row / for panel mount MATE-N-LOK Universal, 926307-3, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 6 路 直 母 压接连接器外壳 6P UN-MNL AUFN-GEH |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
| 材料阻燃等级 | UL 94 V-2 | ||
电气参数
| 测试电压 | 5000 | 额定电压 | 600 V |
| 极数 | 6 | 供电电压 | 600 |
| 最大额定电流 | 19 A | 绝缘电阻 | 1000 MOhm |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Red | 深度 | 27.4mm |
| 间距 | 6.35 mm | 宽度 | 17mm |
| 高度 | 17 mm | 长度 | 44.5mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线线规 | 10-30 AWG | 方向 | 直 |
| 本体尺寸 | .76 – 2.29 mm [ .76 – 2.29 in ] | 触头类型 | Male or Female |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Without |
| 紧固类型 | Locking Ramp | 安装样式 | Free Hanging, Panel |
| 排数 | 1 | 封装形式 | Receptacle |
| 连接器样式 | Single row | 壳体材料 | Nylon |
| 总长度 | 39.4 mm | 包装数量 | 1200 |
| 面板安装类型 | 带有 | 主要材料 | InterconnectSystem |
| 端接样式 | Quick Connect | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 兼容外壳尺寸（如TM-700等） | 通用 MATE-N-LOK 插头 |
| 典型触点布局 | 直插式 | 第一连接器安装类型 | Panel |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Receptacle Housings | 连接方式 | Wire-Board |
| 装配配置 | Without | 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55C to 85C |
文档与媒体
相关型号

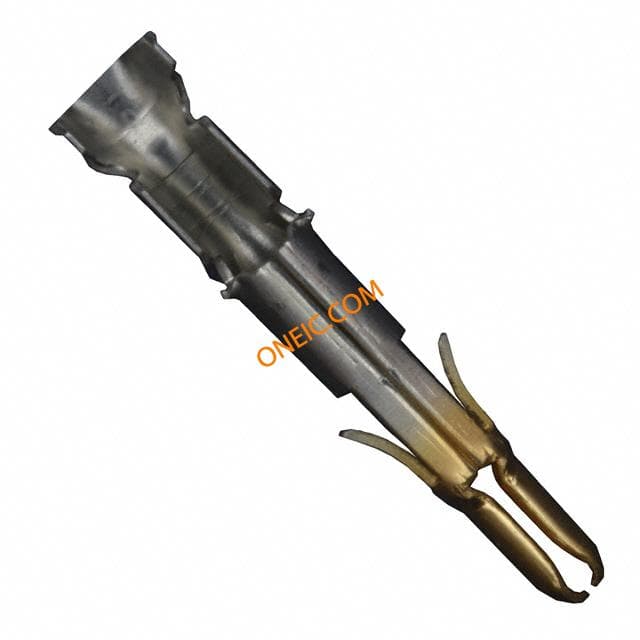

350547-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Contact,crimp,pin,Mate-n-lok,20-14 awg Pin & Socket Connectors PIN CONTACT 20-14 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP TERMINAL, SOLDERLESS CONTACT,PIN,UNIVERSALMATE-N-LOK,20-14AWG TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金触点 UMNL PIN 20-14 AUBR L/P
640581-1
te connectivity / amp
Conn Housing PL 6 POS 6.35mm ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS 94V-0 UNI-MATE Housing,plug,Mate-n-lok,1 row,6 Way Pin & Socket Connectors 6 P IN-LINE PLUG Conn Housing PL 6 POS 6.35mm ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, 6WAY CONNECTOR,SOFTSHELL,UNIVERSALMATE-N-LOK,6POSITION,FREEHANGING,WHITE Crimp housing Pitch6.35 mm Poles 6 MATE-N-LOK Universal, 640581-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 6 路 直 公 压接连接器外壳 06P UMNL PLUG HSG
350552-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Mate-n-Lok,Contact,pin,0.50-2.00mm² Pin & Socket Connectors PIN 20-14 AWG AU/PHBZ L/P Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Mate-n-Lok,Contact,pin,0.50-2.00mm² TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL PIN 20-14 AU/PHBZ L/P
350570-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board UMNL SOK 24-18 AUPHB Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL SOK 24-18 AUPHBZ
350687-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board UMNL SPLIT PIN 20000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNLSPLITPINAUNI/BR UMNL SPLIT PIN AUNI/BR
640585-1
te connectivity / amp
Conn Housing PL 6 POS 6.35mm ST Individual Pin & Socket Connectors 6P IN-LINE PLUG .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS 94V-2 UNI-MATE Housing,plug,Mate-n-lok,1 row,6 Way Conn Housing PL 6 POS 6.35mm ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, RECEPT Plug,6Postition,UniversalMATE-N-LOK,6.35mmCenterline,Matrix Crimp housing Pitch6.35 mm Poles 6 Single row / Free hanging/cable mount MATE-N-LOK Universal, 640585-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 6 路 直 公 压接连接器外壳 06P UMNL PLUG HSG V2 NATL
350851-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board SOCKET CONTACT 24-18 AWG CONTACT, SOCKET, 24-18AWG, CRIMP UMNL SOK 24-18 AUNIBR
350705-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board PIN 20-14 BR/AU SPLIT Conn Contact M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVMATE-N-LOKLP,UMNLSPLITPIN20-14AUBRL/P UMNL SPLIT PIN 20-14 AUBR L/P
350536-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.50-2.00mm² Power to the Board SOCKET CONTACT 20-14 AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP SOCKET, MATE-N-LOK, REEL 5K Mate-n-Lok,Contact,socket,0.50-2.00mm² TE Connectivity Universal MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 UMNL SOK 20-14 .0126 AUNI/BR
350537-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board SOCKET CONTACT 20-14 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP UNIVMATE-N-LOKSTRIP,UMNLSOK20-14.0126AUNI/BR UMNL SOK 20-14 .0126 AUNI/BR
350538-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board UMNL PIN 20-14 AU/NI 350538-7 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK Product LineContact Gender = PinTerminate To WireCrimp Termination MethodSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 20-14AWG UMNL PIN 20-14 AU/NI/BR
350218-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Contact,crimp,pin,Mate-n-lok,20-14awg,Au Pin & Socket Connectors PIN CONTACT 20-14 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP PIN, 20-14AWG CRIMP PIN, MATE-N-LOK, REEL 5K UNIVMATE-N-LOKSTRIP,UMNLPIN20-14.0126AUBR Mate N Lok .250" Centerline 600 V 19 - 36 A 20-14 AWG Pin TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL PIN 20-14 .0126AUBR
350851-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Power to the Board 24-18 SOCKET CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Universal Mate-N-Lok 24-18 AWG Wire to Cable Crimp Socket Contact TE Connectivity 母 印刷电路板连接器触点, 压接, 镀金触点 UMNL SOK 24-18 AUNIBR

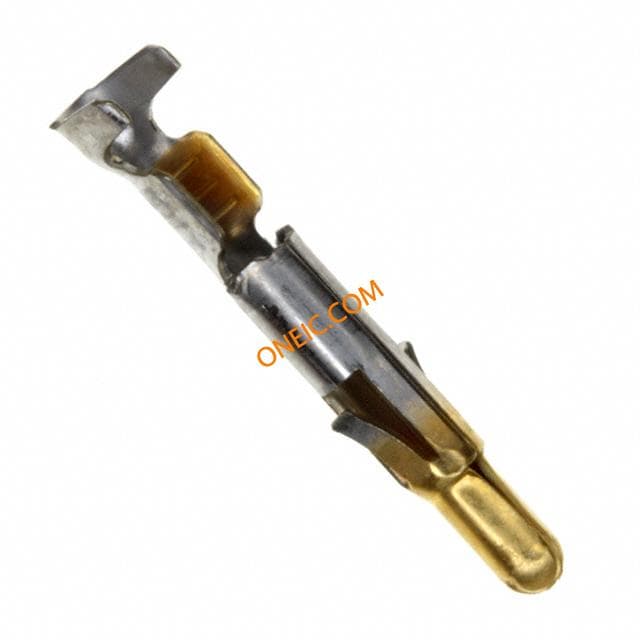

350690-2
