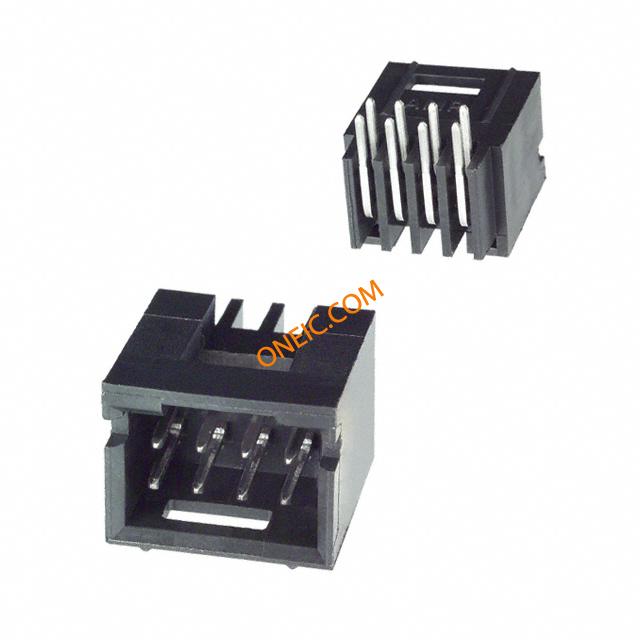

87579-1

点击放大查看

87579-1

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RA .100 8POS TIN Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 08 MODII HDR DRRA SHRD .100CL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Trays

合规参数

RoHSContains lead / RoHS non-compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94V-0

电气参数

连接器阻抗制动器窗口最大额定电流3/Contact A
保护额定电压（VPR）750 Vrms

机械参数

颜色Black深度16.23 mm
间距2.54 mm高度10.49 mm
底座类型带有锁定类型带有
包装方式Tray壳体颜色黑色
引脚样式正方形稳定器不带
排间距0.100" (2.54mm)端接方式Solder
触头类型Male Pin第一连接器否
外壳颜色Black安装类型Through Hole, Right Angle
连接器类型Header, Shrouded接触镀层Bright Tin Over Nickel
紧固类型Detent Lock安装样式Through Hole
排数2外壳材料（壳体）4- 面
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Thermoplastic总长度13 mm
包装数量368面板安装类型通孔
端接样式插针第一连接器类型带罩
外径.64 mm [ .025 in ]触点数8
端接表面处理带有位数8
安装孔直径带有接触长度 - 配合0.318" (8.08mm)
端子柱长度3.43 mm [ .135 in ]接触镀层厚度100µin (2.54µm)
静电放电屏蔽不带外壳尺寸，连接器布局1.68 mm [ .066 in ]
第一连接器安装特征否接触件镀层 - 插柱（配合端）锡铅：亮光

产品信息

类型Shrouded Header连接器性别HDR
钥匙类型否产品子类型连接器
加载位置数All

环境参数

密封等级不带防护等级带罩
工作温度-55C to 105C封装热阻1.397 mm [ .055 in ]
结工作温度否

相关型号

146762-1

146762-1

te connectivity / amp

Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 8POS DL VERT .100 T/H Headers & Wire Housings 08MODII RCPT VERT DR 08 MODII RCPT VERT DR 08 MODII RCPT VERT DR Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,

¥2.3684
详情
87631-3

87631-3

te connectivity / amp

Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 8POS .100 POL DUAL Housing FH 8way 2row Rec 2.54mm AmpModu Headers & Wire Housings 8P RECEPT AMPMODU Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 8POS, 2.54MM RECEPTACLE,AMPMODU,MODIV,8POSITION,.100IN,DUALROW,LATCHED TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 8 路 直 母 电缆安装 PCB 壳体 08 MODIV HSG COMP DR .100 POL

¥3.4000
详情
5-102694-2

5-102694-2

te connectivity / amp

Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 8POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 8P 26-22AWG Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 ampmodu mt assy dr sn

¥14.2800
详情
535598-5

535598-5

te connectivity / amp

Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 8POS .100 DUAL T/H AU Headers & Wire Housings 08 MOD IV RECEPTACLE 3360 08 MODIV VRT DR CE RCPT ASSY 08 MODIV VRT DR CE RCPT ASSY Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,

¥2.6928
详情

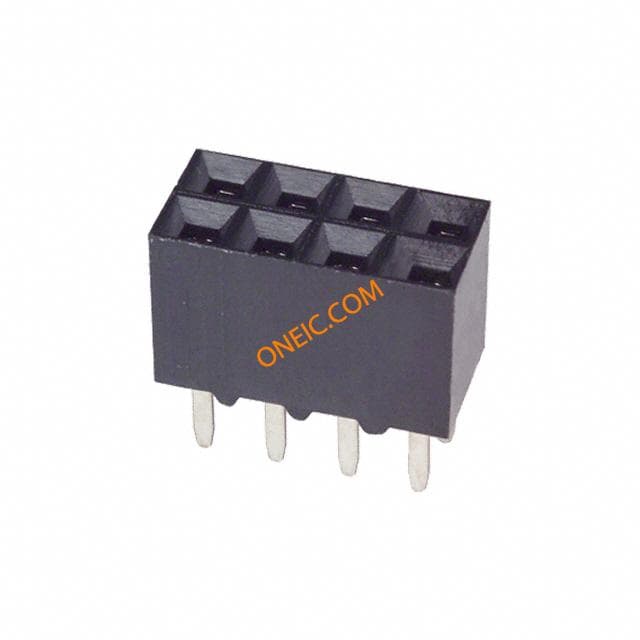

534998-4

534998-4

te connectivity / amp

Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 8POS .100 VERT DUAL Headers & Wire Housings 8P MOD 1V VRT 3360 Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 8Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, ReceptacleAssembly;GlassFilledPolyester;PhosphorBronze;Vertical;8;2A 08 MODIV VRT DR CE 100/125

¥4.4200
详情
102398-2

102398-2

te connectivity / amp

Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 8POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 8P 26-22AWG Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Product Highlights:Receptacle AssemblyWire Termination Type = Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = DualTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 AMPMODU MT ASSY DR .100CL

¥17.7480
详情
5-102393-2

5-102393-2

te connectivity / amp

Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 8POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 8P 30-26AWG 08 AMPMODU MT ASSY DR.100CL SN

¥14.2800
详情
102694-2

102694-2

te connectivity / amp

Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 8POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 8P 26-22AWG Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Product Highlights:Receptacle AssemblyWire Termination Type = Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = DualTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 AMPMODU MT ASSY DR .100CL

¥17.4352
详情

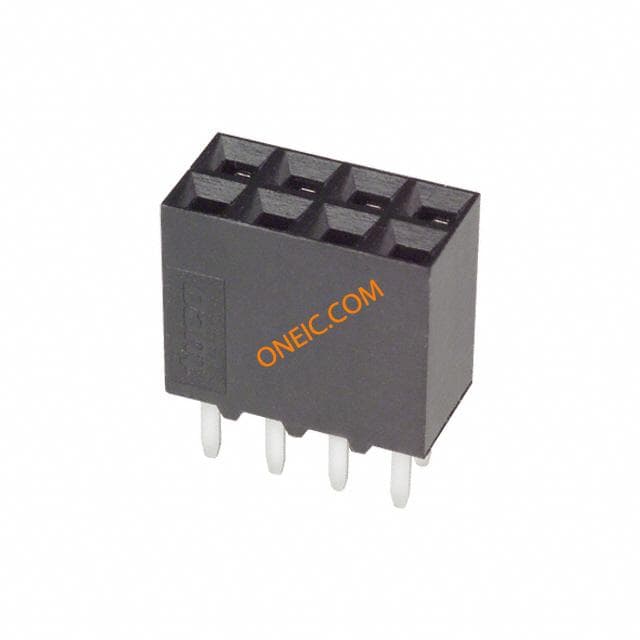

5-534206-4
