点击放大查看

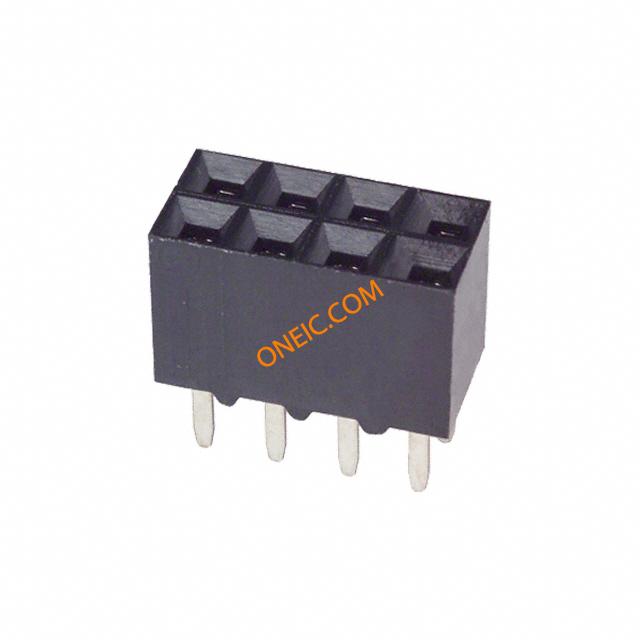

5-534998-4

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 8POS .100 VERT DUAL Headers & Wire Housings REC 2X04P VRT T/H Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ConnectorHousing Gender = Connector - ReceptacleContact Gender = ReceptacleMod IV8 PositionsSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONN, RECEPTACLE, 8WAY, 2ROW 08 MODIV VRT DR CE 100/125
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	56

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

最大额定电流

2 A

机械参数

颜色	Black	间距	2.54 mm
重量	0.002	包装方式	Tube
排间距	0.100" (2.54mm)	端接方式	Solder
触头类型	Female Socket	安装类型	Through Hole
连接器类型	Receptacle, Bottom or Top Entry	接触镀层	Gold Over Nickel
排数	2	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	端接样式	Through Hole
触点数	8	接触件端接	:Through Hole Vertical
位数	8	接触镀层厚度	30µin (0.76µm)

产品信息

类型	Socket Strip	连接器性别	RCP
系列	AMPMODU MOD IV	产品子类型	Receptacles / Sockets - PCB
加载位置数	All

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

TE.Connect?C=1&M=BYPN&TCPN=5-534998-4&RQPN=5-534998-4

在线文档

5-534998-4?RQPN=5-534998-4
