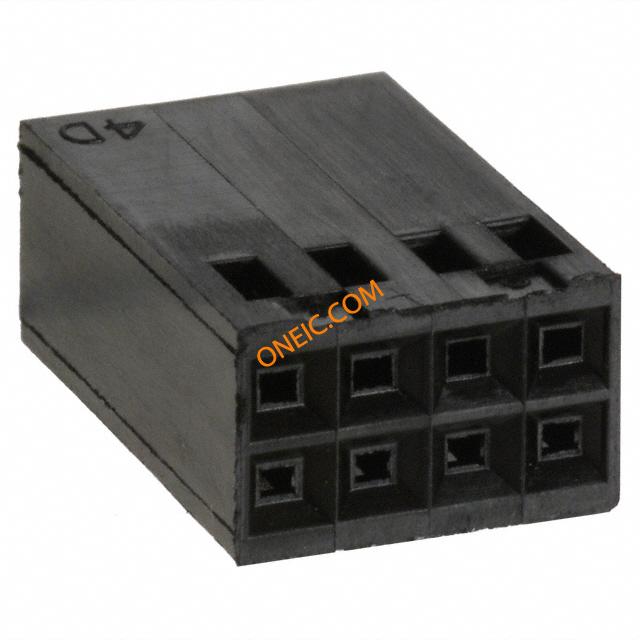

87456-3

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 8POS .100 DUAL Headers & Wire Housings 8P HOUSING Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,8POSITION,.100IN,DUALROW 08 MODIV HSG COMP DR .100CL
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 VAC	供电电压	250 VAC
接触电阻	12 mΩ	输入电阻	5000
连接器阻抗	压接	最大额定电流	3
绝缘电阻	5000 MOhms	连接器类型 - 电压输入	Receptacle
保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
高度	6.1 mm [ .24 in ]	长度	10.29 mm [ .41 in ]
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	排间距	0.100" (2.54mm)
触头类型	Female Socket	安装类型	Straight
连接器类型	Receptacle	排数	2
插入件材料	铍铜	壳体材料	Nylon
包装数量	1	主要材料	InterconnectSystem
端接样式	插座	触点数	8
接触件端接	Crimp	位数	8
兼容外壳尺寸（如TM-700等）	端子	安装孔直径	不带
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Wire Housings
其他规格	否	应用细节	Board-to-Board

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C
