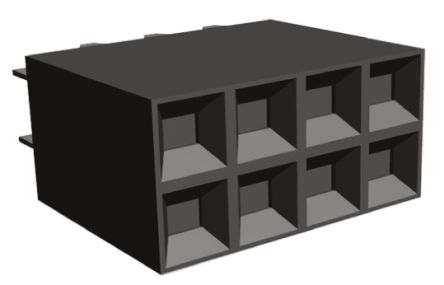

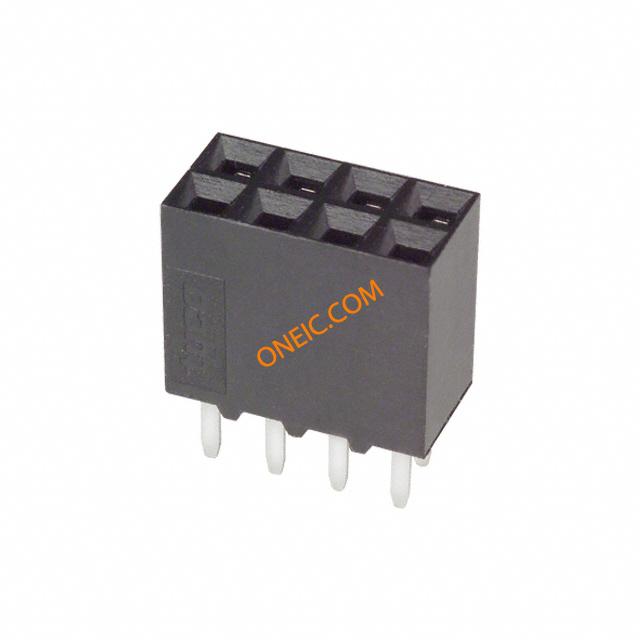

5-534206-4

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 8POS .100 VERT DUAL TE Connectivity Mod II Series 2.54mm 8 Way 2 Row Straight PCB Socket Through Hole Board to Board Headers & Wire Housings REC 2X04P VRT T/H Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 8Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONN, RECEPTACLE, 8WAY, 2ROW VERTIIDRCERECASY,08MODIIVRTDRCE100/115 TE Connectivity AMPMODU Mod II 系列 2行 8路直 2.54mm节距通孔印刷电路板插座, 板对板 08 MODII VRT DR CE 100/115
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	56

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366910

电气参数

接触电阻

12 mohm

最大额定电流

机械参数

颜色	Black	深度	5.03 mm
间距	2.54 mm	高度	8.12 mm
重量	0.002	包装方式	Tube
排间距	0.100" (2.54mm)	端接方式	Solder
触头类型	Female Socket	外壳颜色	Black
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Through Hole
排数	2	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	总长度	10.16 mm
主要材料	InterconnectSystem	端接样式	Through Hole
触点数	8	接触件端接	:Through Hole Vertical
位数	8	接触镀层厚度	30µin (0.76µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	Mod II	制造商全称	AMPMODU/ModIiSeries
产品子类型	Receptacles / Sockets - PCB	加载位置数	All

环境参数

工作温度

- 65 C to + 105 C
