点击放大查看

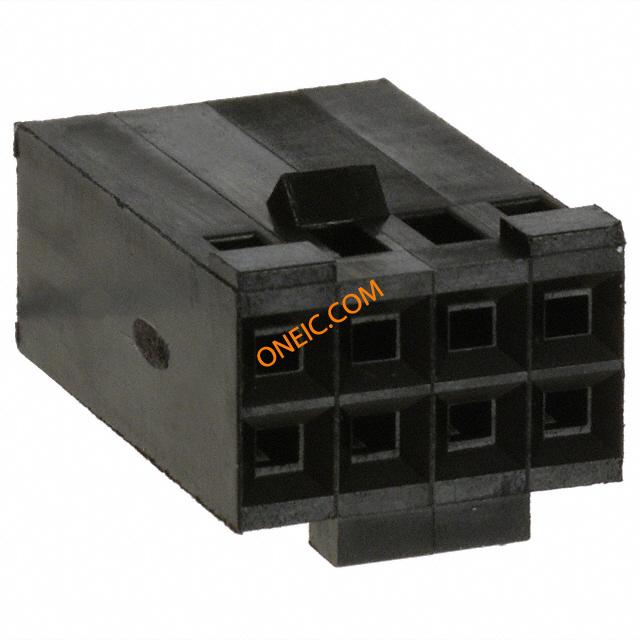

87631-3

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 8POS .100 POL DUAL Housing FH 8way 2row Rec 2.54mm AmpModu Headers & Wire Housings 8P RECEPT AMPMODU Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 8POS, 2.54MM RECEPTACLE,AMPMODU,MODIV,8POSITION,.100IN,DUALROW,LATCHED TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 8 路直母电缆安装 PCB 壳体 08 MODIV HSG COMP DR .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 V
开关功能	Detent Latching	最大额定电流	3 A
最小供电电压	250VAC

机械参数

颜色	Black	深度	15.24mm
间距	2.54 mm	宽度	6.1mm
长度	10.16mm	重量	0.00045
包装方式	Bulk	导线线规	20-30 AWG
排间距	0.100" (2.54mm)	触头类型	Female Socket
外壳颜色	Black	安装类型	Straight
连接器类型	Receptacle	接触镀层	:-
紧固类型	Locking Ramp	排数	2
触头材料	Phosphor Bronze	壳体材料	Nylon
总长度	10.16 mm	主要材料	InterconnectSystem
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	8	接触件端接	Crimp
位数	8

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	Mod IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - Housings
应用细节	Board to Board	适用产品/相关产品	PCB Connector

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

580372.pdf

在线文档

87631-3?RQPN=87631-3
