828904-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Seal Plug Loose Piece Timer Contacts SGL WIRE SEAL FOR J.P.T.CON 1.5mm wire seal,0.5-1sq.mm Automotive Connectors Wire Seal JR Timer 1.2-2.1mm Insulation Connector Accessories Seal Plug Loose Piece Product Highlights:Seal PlugContact Type = Junior-Power-Timer, Multiple Contact Point (MCP)MCP SeriesWire Range = 0.30-1.00² [22-17] mm [AWG]Insulation Diameter = 1.20 - 2.10 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer WIRE SEAL, SINGLE, FOR J.P.T.CONN SEALPLUG,0.110INX0.032IN.,BLUE Seal for wire; JPT; 1.2÷2.1mm TE Connectivity Heavy Duty Sealed Connector (HDSCS )系列 蓝色 电线密封 SINGLE WIRE SEAL FOR J.P.T.CON |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | Blue | 深度 | 5.6 mm |
| 重量 | 0.002 | 材料（通用） | Thermoplastic |
| 包装方式 | Bulk | 触头类型 | Receptacle |
| 电缆直径 | 1.2...2.1mm | 连接器类型 | :Hardware |
| 安装样式 | Free Hanging | 排数 | 1 |
| 连接器用途 | seal for wire | 总长度 | 7.9 mm |
| 包装数量 | 1000 | 位数 | 2 |
产品信息
| SPG | 1000 | 类型 | Seal |
| 连接器性别 | Female | 系列 | :JPT |
| 附件类型 | Wire Seal | 适配器系列 | Junior Power Timer |
| 单元数量 | 1 | 射频系列/标准 | 828904 |
| 适用产品/相关产品 | Junior Power Timer Series | ||
文档与媒体
相关型号
828905-1
te connectivity / amp
Connector Accessories Seal Plug Loose Piece Timer Contacts SINGLE-WIRE-SEAL(5MM HOLE) 1.5mm wire seal,1-2.5sq.mm Heavy Duty Power Connectors 2.5MM CPC SEAL Connector Accessories Seal Plug Loose Piece Product Highlights:Seal PlugContact Type = Junior-Power-Timer, Multiple Contact Point (MCP)MCP SeriesWire Range = 1.50-2.50² [15.5-13.5] mm [AWG]Insulation Diameter = 2.21 - 3.00 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer WIRE SEAL, SINGLE, 5MM HOLE 1.5mmwireseal,1-2.5sq.mm TE Connectivity Heavy Duty Sealed Connector (HDSCS )系列 电线密封
929975-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 1.5/2.5/4.0mm Pin Diameter Connector System CONTACT SKT CRIMP 13-17AWG 2.5MM Female Circular Connector Contact, Crimp,Wire size 17 to 13AWG Automotive Connectors BU-KONTAKT 2 5MMD Contact SKT Crimp ST Cable Mount Strip Product Highlights:Product Series = 2.5 mm SystemContactSocketCuNiSi Contact MaterialPre-Tin Contact Mating Area PlatingSearch Keywords:DIN 72585, highly stressed, truck, Magnet valves, sensors, ABS, rear lights CONTACT, SOCKET, 17-13 AWG, CRIMP CONTACT, CRIMP, SOCKET, 17-13AWG, REEL 2.5mmcrimpsocketcontact,1-2.5sq.mm TE Connectivity 母 压接端接 圆形 连接器 触芯, 使用于2.5mm 引脚直径连接器系统, 17 → 13 AWG 线规格 BU-KONTAKT 2,5MMD
2-967059-1
te connectivity / amp
Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Timer Connectors J-P-T GEH KOMPL 4P Heavy Duty Power Connectors 4P JPT RECT HSG Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 4Housing Color = GraySealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, RECEPTACLE, 1 ROW, 4WAY, PBT-GF
1-967059-1
te connectivity / amp
Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Timer Connectors J-P-T GEH KOMPL 4P Power to the Board J-P-T GEH KOMPL 4P Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 4Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, JPT, 4 POSITION
929974-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 1.5/2.5/4.0mm Pin Diameter Connector System CONTACT SKT CRIMP 17-20AWG 2.5MM 2.5mm crimp socket contact,0.5-1sq.mm Standard Circular Contacts SOCKET CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:Product Series = 2.5 mm SystemContactSocketCuNiSi Contact MaterialPre-Tin Contact Mating Area PlatingSearch Keywords:DIN 72585, highly stressed, truck, Magnet valves, sensors, ABS, rear lights CONTACT, SOCKET, 20-17 AWG, CRIMP CONTACT, CRIMP, SOCKET, 20-17AWG, REEL 2.5mmcrimpsocketcontact,0.5-1sq.mm TE Connectivity 母 压接接线端子, 压接, 镀锡触点 BU-KONTAKT 2,5MMD

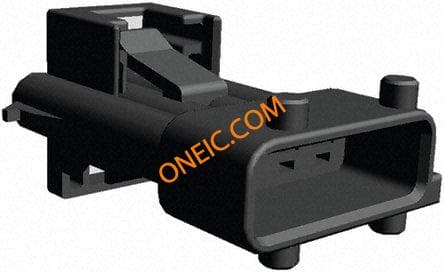

1-965261-1
te connectivity / amp
Conn Housing PL 4 POS 5mm Crimp ST Cable Mount Timer - Connectors CONN TAB HSNG 4POS .110 BLACK Junior Timer 4 way plug housing, black Automotive Connectors FLACHSTE-GEH2 8 4P Conn Housing PL 4 POS 5mm Crimp ST Cable Mount Product Highlights:Tab HousingConnector Type = Junior TimerTab Fit = 2.79 x 0.81 mmNumber of Positions = 4Housing Color = BlackSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JuniorTimer4wayplughousing,black TE Connectivity Timer 系列 4路 黑色 公 外壳 , 焊接端接 FLACHSTE-GEH2,8 4P
1-967239-1
te connectivity / amp
Conn Housing RCP 2 POS 5mm Crimp ST Cable Mount Timer Connectors CONN RCPT HSNG 2POS BLACK Automotive Connectors JPT GEH KPL GEH 2P Conn Housing RCP 2 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 2Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, JPT, 2 POSITION TE Connectivity Junior Power Timer 系列 2路 直插式安装 黑色 母 外壳 JPT GEH KPL GEH 2P

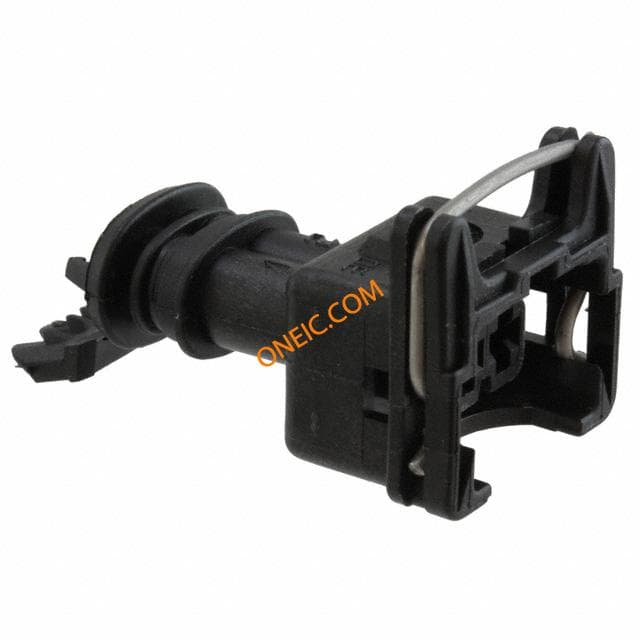

282189-1
te connectivity / amp
Conn Housing RCP 2 POS 5mm Crimp ST Timer Connectors CONN HOUSING 2POS JR POWER TIMER Junior Power Timer 2W receptacle housing Automotive Connectors JUNIOR TIMER Conn Housing RCP 2 POS 5mm Crimp ST Product Highlights:Housing AssemblyConnector Type = Junior Power TimerNumber of Positions = 2Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT CONNECTOR, PLUG JuniorPowerTimer2Wreceptaclehousing Connector: automotive; JPT; plug; female; w/o terminals; PIN:2 TE Connectivity Junior Power Timer 系列 2路 自由悬挂（直插式） 黑色 母 外壳 , 压接端接 SPLASH PROOF CONN. W.S.L.
828920-1
te connectivity / amp
Connector Accessories Seal Protector Silicon-Elastomer Gray Loose Piece Standard Circular Connector CAVITY PLUG CAVITY PLUG 2.5MM SYST 2.5mm wire seal,0.5-1sq.mm Connector Accessories Seal Protector Silicon-Elastomer Gray Loose Piece Product Highlights:Product Series = 2.5 mm SystemSeal ProtectorInsulation Diameter = 1.20 - 2.00 mmWire Range = 0.50-1.00² [20-17] mm [AWG]Color = GraySearch Keywords:DIN 72585, highly stressed, truck, Magnet valves, sensors, ABS, rear lights SEAL, SINGLE WIRE, 0.5-1MM2 2.5mmwireseal,0.5-1sq.mm Seal for wire; 2.5mm System; 1.2÷2mm TE Connectivity 灰色 硅合成橡胶 电线密封 EINZELADERDICHTUNG
828921-1
te connectivity / amp
Connector Accessories Seal Protector Silicon-Elastomer Gray Strip CONNECTOR SEAL 1POS 2.5mm wire seal,1-2.5sq.mm Automotive Connectors HSG ACC:CAVITY PLUG Connector Accessories Seal Protector Silicon-Elastomer Gray Strip Product Highlights:Product Series = 2.5 mm SystemSeal ProtectorInsulation Diameter = 1.20 - 2.00 mmWire Range = 1.00-2.50² [17-13.5] mm [AWG]Color = GraySearch Keywords:DIN 72585, highly stressed, truck, Magnet valves, sensors, ABS, rear lights SEAL, SINGLE WIRE, 17-13 AWG 2.5mmwireseal,1-2.5sq.mm 2.5 mm System 17-13 AWG Wire Seal TE Connectivity 黄色 硅橡胶 电线密封 EINZELADERDICHTUNG
