点击放大查看

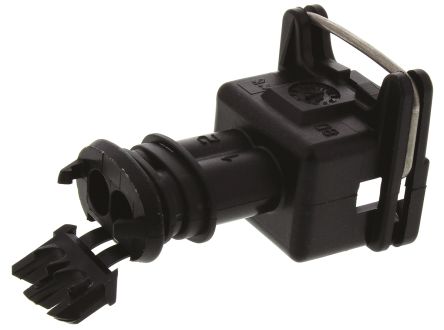

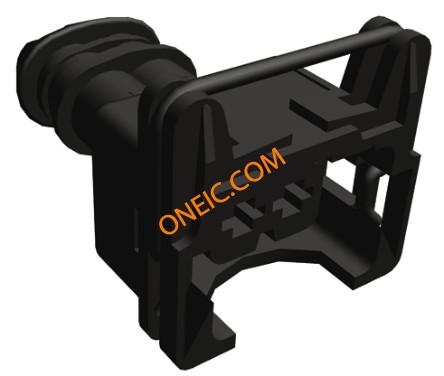

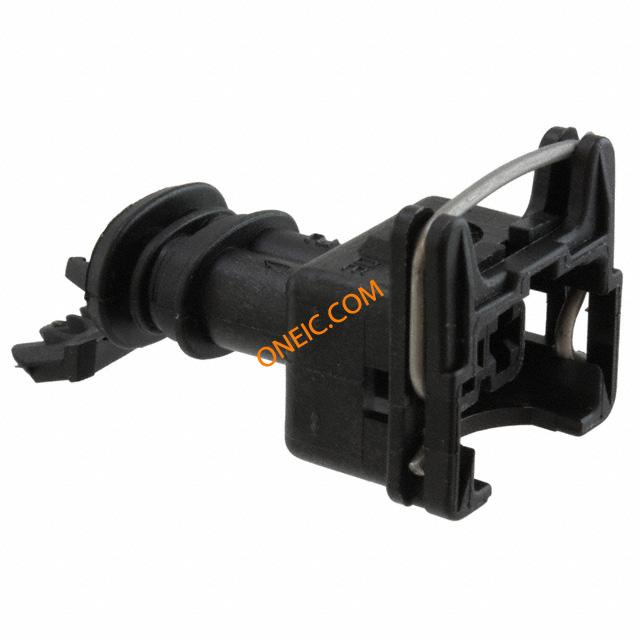

282189-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 5mm Crimp ST Timer Connectors CONN HOUSING 2POS JR POWER TIMER Junior Power Timer 2W receptacle housing Automotive Connectors JUNIOR TIMER Conn Housing RCP 2 POS 5mm Crimp ST Product Highlights:Housing AssemblyConnector Type = Junior Power TimerNumber of Positions = 2Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT CONNECTOR, PLUG JuniorPowerTimer2Wreceptaclehousing Connector: automotive; JPT; plug; female; w/o terminals; PIN:2 TE Connectivity Junior Power Timer 系列 2路 自由悬挂（直插式） 黑色 母 外壳 , 压接端接 SPLASH PROOF CONN. W.S.L. |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 600 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 最大额定电流 | 20A | 最小供电电压 | 24VDC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 37.5mm |
| 间距 | 5 mm | 宽度 | 23.8mm |
| 高度 | 23 mm | 密封型 | Yes |
| 重量 | 2.9 | 包装方式 | Bulk |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Junior Power Timer |
| 接触镀层 | Tin | 安装样式 | Wire |
| 排数 | 1 | 锁定特性 | Spring Type B |
| 壳体材料 | PA 6.6 | 总长度 | 5.00 [0.197] |
| 包装数量 | 1 | 主要材料 | Receptacle |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 连接器颜色 | Black | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
产品信息
| SPG | 1 | 备注 | With Secondary Locking |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | :- | 产品特性 | Splash-Proof |
| 产品子类型 | Housing Assembly | 适配器系列 | Junior Power Timer |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | +125°C | ||
