828920-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Seal Protector Silicon-Elastomer Gray Loose Piece Standard Circular Connector CAVITY PLUG CAVITY PLUG 2.5MM SYST 2.5mm wire seal,0.5-1sq.mm Connector Accessories Seal Protector Silicon-Elastomer Gray Loose Piece Product Highlights:Product Series = 2.5 mm SystemSeal ProtectorInsulation Diameter = 1.20 - 2.00 mmWire Range = 0.50-1.00² [20-17] mm [AWG]Color = GraySearch Keywords:DIN 72585, highly stressed, truck, Magnet valves, sensors, ABS, rear lights SEAL, SINGLE WIRE, 0.5-1MM2 2.5mmwireseal,0.5-1sq.mm Seal for wire; 2.5mm System; 1.2÷2mm TE Connectivity 灰色 硅合成橡胶 电线密封 EINZELADERDICHTUNG |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | Gray | 重量 | 0.013 |
| 直径 | 6.2 mm | 材料（通用） | Silicone Elastomer |
| 包装方式 | Bulk | 导线线规 | 28-17 |
| 外壳镀层 | :Rubber | 电缆直径 | 1.2...2mm |
| 连接器类型 | :Gasket, Sealing | 连接器用途 | seal for wire |
| 壳体材料 | Silicon-Elastomer | 总长度 | 7.8 mm |
| 包装数量 | 5000 | 主要材料 | ConnectorWireInterfaceSeal |
| 线规或范围 - mm² | :1mm² | 外径-未扩张 | :2.5mm |
产品信息
| SPG | 5000 | 类型 | Seal |
| 系列 | :2.5 mm System | CAD图纸 | 3D CAD Model |
| 产品子类型 | Accessories | 附件类型 | Plug, Dummy (Cavity) |
| 适配器系列 | 2.5mm System | 单元数量 | 1 |
| 射频系列/标准 | 828920 | 适用产品/相关产品 | Circular Connector 2-4 Pos |
环境参数
| 工作温度 | :85°C | ||
相关型号
828905-1
te connectivity / amp
Connector Accessories Seal Plug Loose Piece Timer Contacts SINGLE-WIRE-SEAL(5MM HOLE) 1.5mm wire seal,1-2.5sq.mm Heavy Duty Power Connectors 2.5MM CPC SEAL Connector Accessories Seal Plug Loose Piece Product Highlights:Seal PlugContact Type = Junior-Power-Timer, Multiple Contact Point (MCP)MCP SeriesWire Range = 1.50-2.50² [15.5-13.5] mm [AWG]Insulation Diameter = 2.21 - 3.00 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer WIRE SEAL, SINGLE, 5MM HOLE 1.5mmwireseal,1-2.5sq.mm TE Connectivity Heavy Duty Sealed Connector (HDSCS )系列 电线密封
929975-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 1.5/2.5/4.0mm Pin Diameter Connector System CONTACT SKT CRIMP 13-17AWG 2.5MM Female Circular Connector Contact, Crimp,Wire size 17 to 13AWG Automotive Connectors BU-KONTAKT 2 5MMD Contact SKT Crimp ST Cable Mount Strip Product Highlights:Product Series = 2.5 mm SystemContactSocketCuNiSi Contact MaterialPre-Tin Contact Mating Area PlatingSearch Keywords:DIN 72585, highly stressed, truck, Magnet valves, sensors, ABS, rear lights CONTACT, SOCKET, 17-13 AWG, CRIMP CONTACT, CRIMP, SOCKET, 17-13AWG, REEL 2.5mmcrimpsocketcontact,1-2.5sq.mm TE Connectivity 母 压接端接 圆形 连接器 触芯, 使用于2.5mm 引脚直径连接器系统, 17 → 13 AWG 线规格 BU-KONTAKT 2,5MMD
929974-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 1.5/2.5/4.0mm Pin Diameter Connector System CONTACT SKT CRIMP 17-20AWG 2.5MM 2.5mm crimp socket contact,0.5-1sq.mm Standard Circular Contacts SOCKET CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:Product Series = 2.5 mm SystemContactSocketCuNiSi Contact MaterialPre-Tin Contact Mating Area PlatingSearch Keywords:DIN 72585, highly stressed, truck, Magnet valves, sensors, ABS, rear lights CONTACT, SOCKET, 20-17 AWG, CRIMP CONTACT, CRIMP, SOCKET, 20-17AWG, REEL 2.5mmcrimpsocketcontact,0.5-1sq.mm TE Connectivity 母 压接接线端子, 压接, 镀锡触点 BU-KONTAKT 2,5MMD
354940-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMPER W/O DIES Hand Tools PROCRIMPER W/O DIES PRO CRIMPER HAND TOOL W/O DIES PRO-CRIMPER III Hand Crimping Tool CRIMP TOOL, PRO-CRIMPER III SMBCONNECTORS,PROCRIMPERIII(FRAMEONLY) Crimp tool, "Pro Crimper III", 354940-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具框架 PRO-CRIMPER III FRAME W/O DIES
1-1579007-8
te connectivity / amp
Extraction Tool Insert Discrete Terminals Into Connector Housings Hand Tools EXTRACTION TOOL Extraction tool 2.5mm ExtractionTool Extraction tool, 1-1579007-8, TE Connectivity TE Connectivity 压接拔取工具 , 适用于2.5mm 针，插座 触点 EXTRACTION TOOL

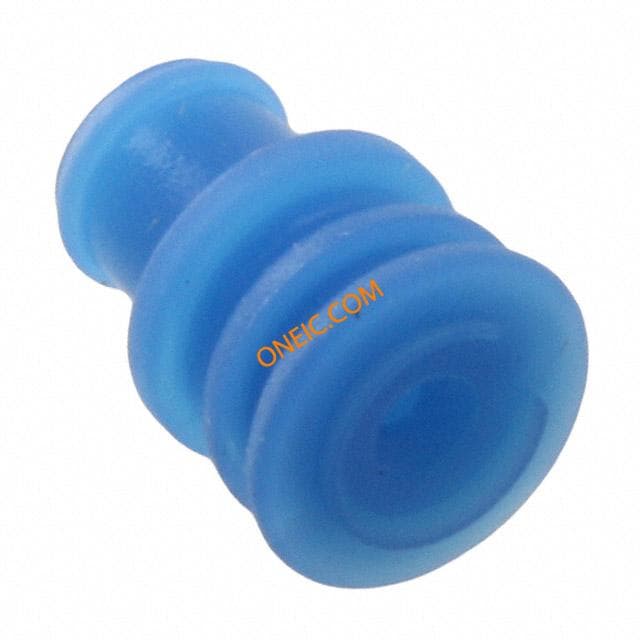

828904-1
