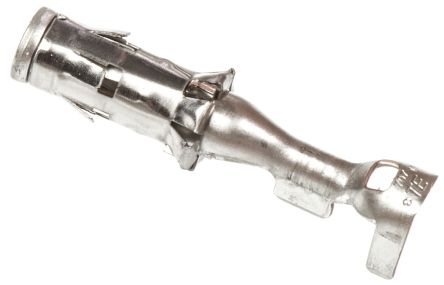

点击放大查看
929974-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip 1.5/2.5/4.0mm Pin Diameter Connector System CONTACT SKT CRIMP 17-20AWG 2.5MM 2.5mm crimp socket contact,0.5-1sq.mm Standard Circular Contacts SOCKET CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:Product Series = 2.5 mm SystemContactSocketCuNiSi Contact MaterialPre-Tin Contact Mating Area PlatingSearch Keywords:DIN 72585, highly stressed, truck, Magnet valves, sensors, ABS, rear lights CONTACT, SOCKET, 20-17 AWG, CRIMP CONTACT, CRIMP, SOCKET, 20-17AWG, REEL 2.5mmcrimpsocketcontact,0.5-1sq.mm TE Connectivity 母 压接接线端子, 压接, 镀锡触点 BU-KONTAKT 2,5MMD |
| 分类 |
商业参数
| 零件号别名 | 8-34142-1 | 产品类别 | Standard Circular Contacts |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 3000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 接触电阻 | 10mΩ | 最大额定电流 | 25 A |
机械参数
| 尺寸 | 2.5mm | 重量 | 0.051 |
| 包装方式 | Strip | 导线线规 | 17-20 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 触头材料 | Copper-Nickel-Silicon |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 线规或范围 - AWG | :20AWG | 线规或范围 - mm² | :1mm² |
| 外径-未扩张 | :3.4mm | ||
产品信息
| 连接器性别 | SKT | 系列 | 2.5 mm System |
| 适用产品/相关产品 | :2.5mm Pin Diameter Connector System | ||
环境参数
| 可用温度范围 | -40to+130°C | 结工作温度 | 130°C |
文档与媒体
