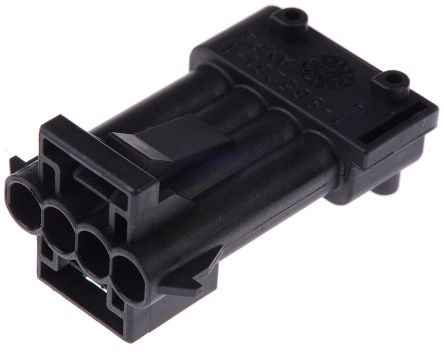

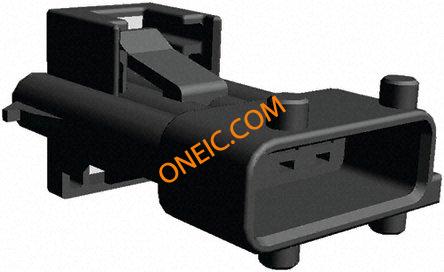

1-965261-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 4 POS 5mm Crimp ST Cable Mount Timer - Connectors CONN TAB HSNG 4POS .110 BLACK Junior Timer 4 way plug housing, black Automotive Connectors FLACHSTE-GEH2 8 4P Conn Housing PL 4 POS 5mm Crimp ST Cable Mount Product Highlights:Tab HousingConnector Type = Junior TimerTab Fit = 2.79 x 0.81 mmNumber of Positions = 4Housing Color = BlackSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JuniorTimer4wayplughousing,black TE Connectivity Timer 系列 4路 黑色 公 外壳 , 焊接端接 FLACHSTE-GEH2,8 4P |
| 分类 |
商业参数
| 产品 | Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94-HB |
电气参数
| 额定电压 | 12 | 供电电压 | 14 |
| 连接器阻抗 | 2.79 x 0.81 | ||
机械参数
| 颜色 | Black | 深度 | 38mm |
| 间距 | 5 mm | 宽度 | 27.3mm |
| 高度 | 9.8mm | 长度 | 27.3 mm [ 1.075 in ] |
| 包装方式 | Bulk | 出线方向 | 否 |
| 端接方式 | Solder | 触头类型 | Tab |
| 第一连接器 | A | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Housing |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 端子样式 | No | 连接器样式 | Plug |
| 连接器用途 | A | 锁定特性 | On the terminal |
| 壳体材料 | PBT - GF | 安装特性 | No |
| 主要材料 | Connector | 端接排数 | 焊接 |
| 连接器 - 电缆 | No | 连接器颜色 | Black |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 法兰上方插针尺寸 | 2.8 mm [ .11 in ] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Timer |
| 极性 | 是 | 可密封 | 是 |
| 预加载 | No | 可维修 | No |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 应用细节 | Signal | ||
环境参数
| 工作温度 | -40 – 120 °C [ -40 – 248 °F ] | ||
