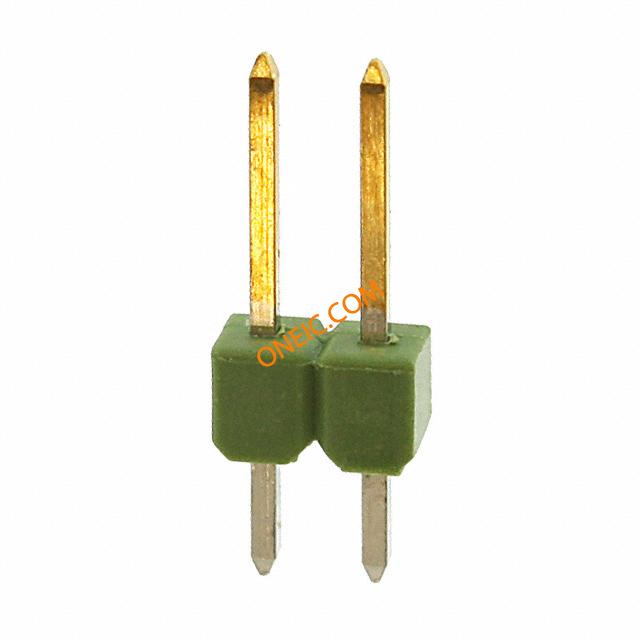

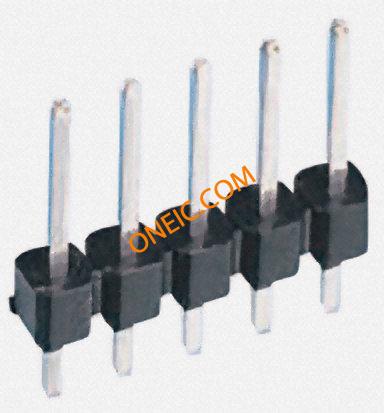

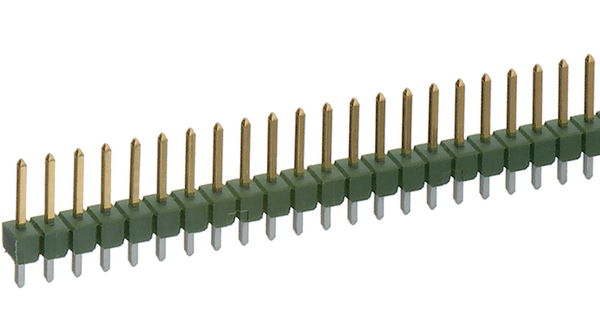

826629-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN BRKWAY HEADER 2POS .100 AU TE Connectivity AMPMODU Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2P SINGLE ROW Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = SingleNumber of Positions = 2Mating Post Length = 6.70 mmSearch Keywords:board to board, AMPMODU, pcb connectors, CONNECTOR, HEADER, THT, 2.54MM, 2WAY 2wSinglerowStraightheadergold Pin header; pin strips; AMPMODU MOD II; male; PIN:2; straight Pin header 1 x 2P, 826629-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 2路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔 2P AMPMODU II |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 3000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 3A | ||
机械参数
| 颜色 | Green | 间距 | 2.54 mm |
| 高度 | 6.7mm | 重量 | 0.013 |
| 包装方式 | Bulk | 方向 | straight |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | len. 3.2mm |
| 柱间距 | 2.54 [.100] | 第一连接器 | No |
| 第二连接器 | Without | 安装类型 | Vertical |
| 连接器类型 | Breakaway | 接触镀层 | Gold Over Nickel |
| 排数 | 1 | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic Polyester |
| 安装特性 | Without | 包装数量 | 3,000 |
| 面板安装类型 | Without | 主要材料 | BoardtoBoardorWiretoBoard |
| 连接器 - 电缆 | pin header | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 2 |
| 接触件端接 | :Through Hole Vertical | 位数 | 2 |
| 柱体长度（配合） | 6.7 mm | 接触长度 - 配合 | 6.70 [0.264] |
| 表面贴装焊盘尺寸 | No | 端子柱长度 | 3.20 [0.126] |
| 接触镀层厚度 | 31.5µin (0.80µm) | 触点材料 - 镀层 | gold plated |
| 第一连接器安装特征 | 1x2 | ||
