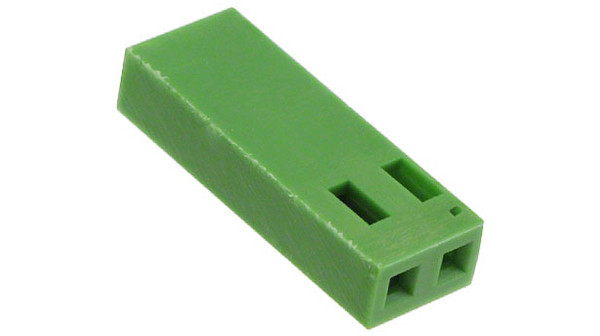

点击放大查看

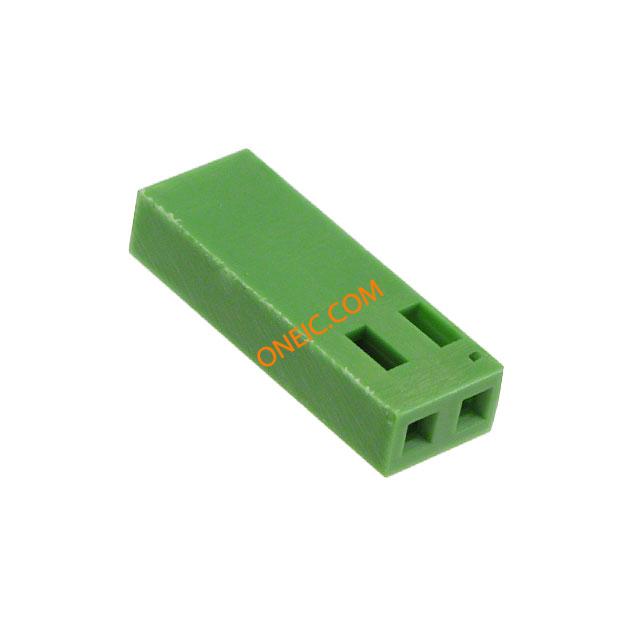

925366-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts MOD 4 REC.HSG 1X02P 2way 1 row unshrouded crimp socket shell Headers & Wire Housings HSG RECPT 1X02P Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 2Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE, 2WAY 2WSOCKETSHELL 2way 1 row unshrouded crimp socket shell Crimp housing Pitch2.54 mm Poles 2 Single row / straight / without strain relief AMPMODU MOD IV, 925366-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 2 路 直 母 PCB 壳体 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94-HB | ||
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 额定电压 | :250V |
| 工作电压 | :250V | 最大额定电流 | :3A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Green | 深度 | 14.2mm |
| 间距 | 2.54 mm | 宽度 | 2.94mm |
| 高度 | 2.94 mm | 长度 | 5.08mm |
| 重量 | 0.001 | 包装方式 | Bulk |
| 出线方向 | Without | 排间距 | 2.54 mm |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 第二连接器 | Without | 外壳颜色 | Green |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 接触镀层 | :- | 安装样式 | Wire |
| 排数 | 1 | 封装形式 | Receptacle |
| 触头材料 | :Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 5.08 mm | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 中心触点材料 | 2.54 [.100] |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mod IV |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | ||
环境参数
| 工作温度 | -65C to 105C | ||
