点击放大查看

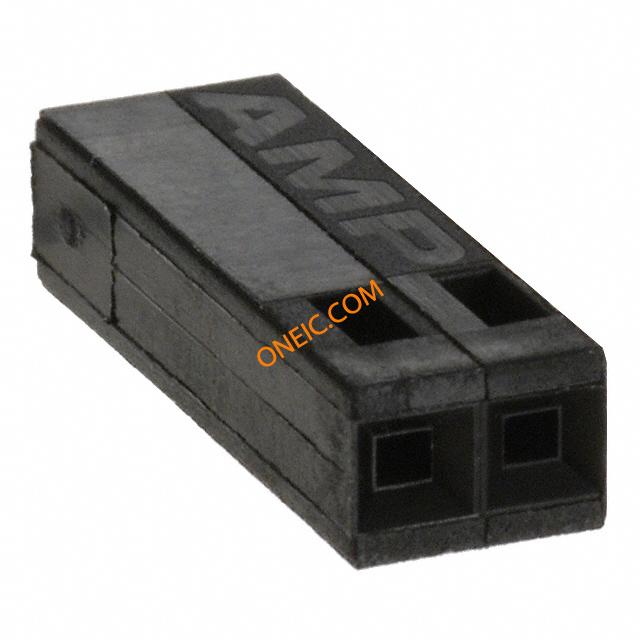

87499-4

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 2POS .100 SINGLE Housing 2 way socket 2.54mm AmpModu IV Headers & Wire Housings MOD IV HSG 2P Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 2Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,2POSITION,.100IN,SINGLEROW TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 2 路直母电缆安装 PCB 连接器外壳 02 MODIV HSG COMP SR .100CL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 VAC	开关功能	Unlatched
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	最小供电电压	250VAC
保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	3.56mm
间距	0.100" (2.54mm)	宽度	15.24mm
高度	3.56 mm	长度	5.21mm
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	方向	直
排间距	2.54 mm	触头类型	Female Socket
外壳颜色	Black	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	安装样式	Free Hanging
排数	1	插入件材料	铍铜
壳体材料	Thermoplastic	总长度	5.21 mm
包装数量	1	主要材料	InterconnectSystem
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	2	接触件端接	Crimp
位数	2	安装孔直径	不带
典型触点布局	同轴	静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	Female	系列	MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - Housings
其他规格	否	适用产品/相关产品	Wire-to-Board Connector

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

87499-4?RQPN=87499-4

相关型号

825437-2

te connectivity / amp

Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 2POS R/A 30GOLD Headers & Wire Housings MOD 2 PINHDR 1X02P. Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 2Mating Post Length = 6.70 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MOD 2 PINHDR 1X02P.

¥1.8700

详情

87220-2

te connectivity / amp

Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 2POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Header; Standard; PC Board; Single; 2; 0.025 in.; 0.125 in.; Square; 0.1 in. Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 2Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, BOARD-BOARD CONNECTOR HEADER, 2WAY, 1ROW Header;Standard;PCBoard;Single;2;0.025in.;0.125in.;Square;0.1in. TE Connectivity AMPMODU Mod II 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 02 MODII HDR SRST UNSHRD .100

¥3.7400

详情

826926-2

te connectivity / amp

Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 2POS STR TIN TE Connectivity AMPMODU Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings AMP MODU II PIN HEAD Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = SingleNumber of Positions = 2Mating Post Length = 6.70 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, STRAIGHT, 2WAY 2wSinglerowStraightheaderTin Pin header; pin strips; AMPMODU MOD II; male; PIN:2; straight TE Connectivity AMPMODU Mod II 系列 2.54mm节距 2路 (1排) 直引脚管座, 焊接端接, 3A , 通孔 AMPMODU II PIN HEADER

¥0.4896

详情

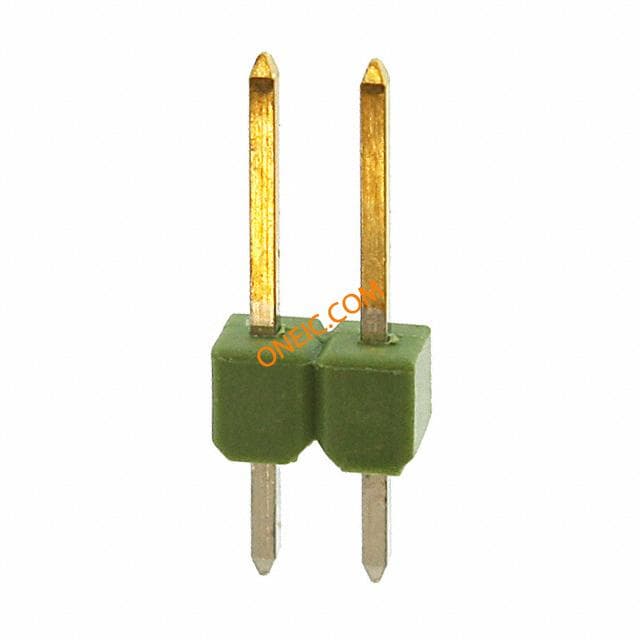

826629-2
