点击放大查看

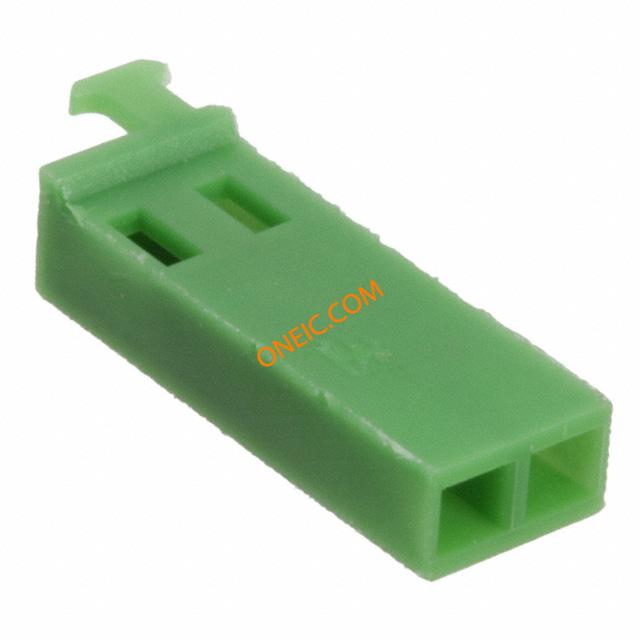

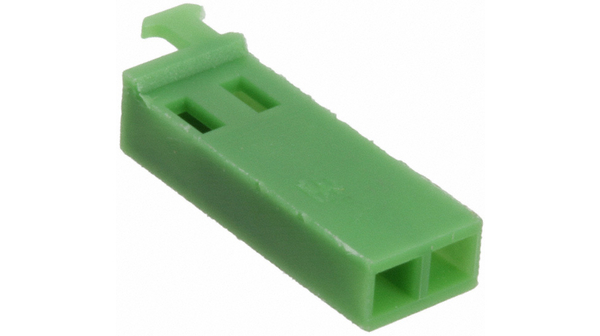

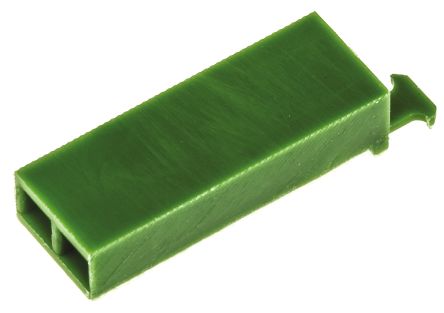

925369-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HOUSING 2POS CRIMP AMP MODU 2-economy socket housing 2W Headers & Wire Housings HSG RECPT 1X02P Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingHousing Type = Housing - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, 1ROW, 2WAY Crimp housing Pitch2.54 mm Poles 2 Single row / straight / with strain relief AMPMODU MOD IV, 925369-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 2 路 直 母 电缆安装 PCB 壳体 MOD 4 REC.HSG 1X02P |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94-HB | ||
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 最大额定电流 | :3A |
机械参数
| 颜色 | Green | 深度 | 16.7mm |
| 间距 | 2.54 mm | 长度 | 5.08mm |
| 重量 | 0.0015 | 包装方式 | Bulk |
| 出线方向 | With | 排间距 | 2.54 mm |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 柱间距 | :2.54mm | 第二连接器 | Without |
| 外壳颜色 | Green | 安装类型 | Straight |
| 连接器类型 | Crimp | 接触镀层 | :- |
| 排数 | 1 | 封装形式 | Receptacle |
| 触头材料 | :- | 壳体材料 | Nylon |
| 总长度 | 5.08 mm | 包装数量 | 100 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | Without | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
| 中心触点材料 | 2.54 [.100] | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mod IV |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | 适用产品/相关产品 | Centerline Mod IV Connector |
文档与媒体
相关型号
141603-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Headers & Wire Housings MOD-4 REC.CONTACT .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26AWG 30GOLD CRIMP 141603-3 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.12-0.15; [26] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MOD-4 REC.CONTACT
167021-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Headers & Wire Housings RECPT 0.032-0.09 AU AMPMODU Mod IV, V CONN SOCKET 28-32AWG GOLD CRIMP Crimp contact 32-28 awg ICP gold Mod IV Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.20 mmWire Range = 0.03-0.09² [32-28] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP SOCKET, GOLD CONTACT, CRIMP, SOCKET, 32-28AWG, REEL CRIMPCNTACT32-28AWGAU TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD-4 REC.CONT.SCP.
2-167301-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26-20AWG CRIMP TIN Crimp contact 24-20 awg ICP tin Mod IV Headers & Wire Housings CONTACT 24-20AWG Contact SKT Crimp ST Cable Mount Reel Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 24-20AWG CONTACT, CRIMP, SOCKET, 24-20AWG, REEL Crimpcontact24-20awgICPtinModIV Contact; female; 0.2÷0.6mm2; AMPMODU MOD IV; tinned; crimped TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀锡触点 MOD-4 REC.CONT.SCP

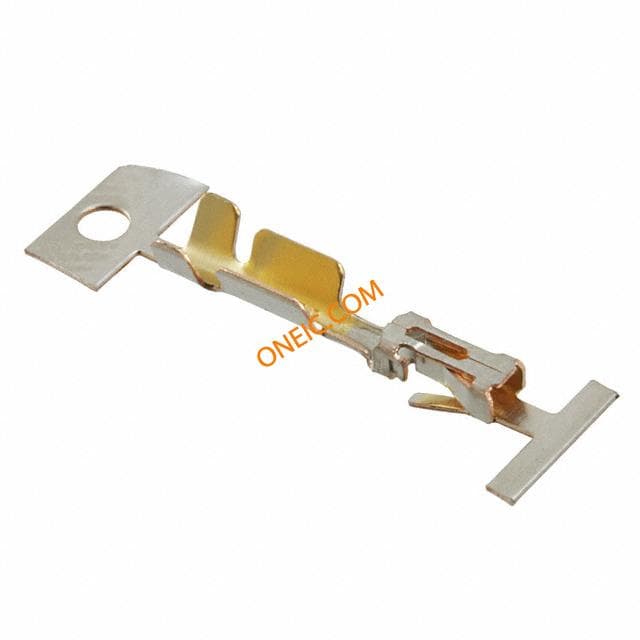

2-167301-4
