点击放大查看

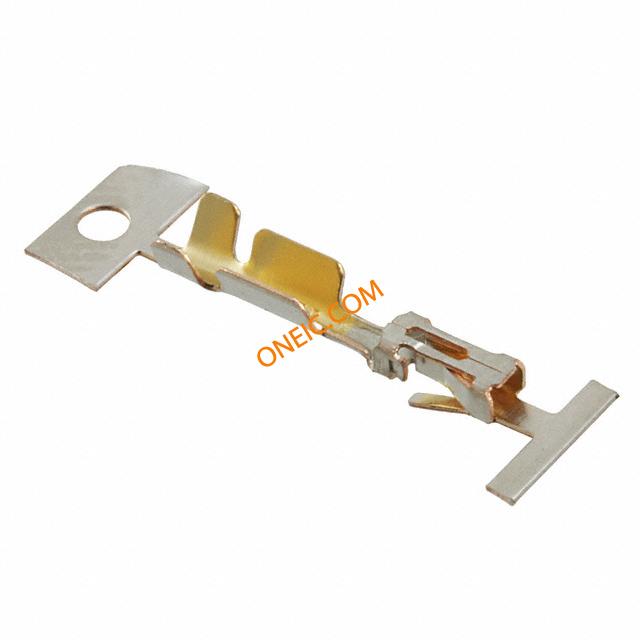

2-167301-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Reel .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26-20AWG CRIMP GOLD Contact female crimp 24-20AWG AmpModu Headers & Wire Housings MOD 4 RECPT CONTACT Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Contactfemalecrimp24-20AWGAmpModu TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金触点 MOD-4 REC.CONT.SCP |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A107037CT |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 17500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 压接 | ||
机械参数
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 分离式导线 |
| 导线线规 | 20-26 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 电缆直径 | 0.56mm² | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 压力（PSI） | 中等 |
| 箔压接区域 | Tin | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 包装数量 | Reel |
| 端接排数 | 压接 | 绝缘高度 | Yes |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | 绝缘直径 | 1.40 [0.055] |
| 镀层厚度（通用） | 锡 | 接触镀层厚度 | 31.5µin (0.80µm) |
| 线规或范围 - AWG | 20AWG | 线规或范围 - mm² | 0.20-0.60² [24-20] |
产品信息
| 制造商 | .5 | 备注 | For 0.63 mm "Round" Post and 0.63 x 0.63 mm "Square" Post. |
| 连接器性别 | SKT | 系列 | Mod IV |
| 制造商全称 | AMP | 产品子类型 | Contact |
| 连接类型 | Wire | 适用产品/相关产品 | PCB Connector |
