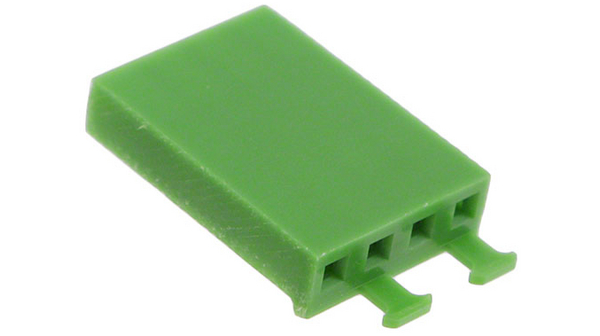

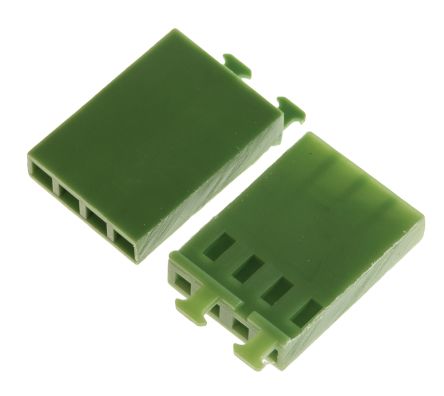

925369-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING RCPT 4POS SL CRIMP AMP MODU 2-economy socket housing 4W Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, 1ROW, 4WAY Crimp housing Pitch2.54 mm Poles 4 Single row / straight / with strain relief AMPMODU MOD IV, 925369-4, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 4 路 直 母 电缆安装 PCB 壳体 MOD IV HSG |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94-HB | ||
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 最大额定电流 | :3A |
机械参数
| 颜色 | Green | 深度 | 17.8mm |
| 间距 | 2.54 mm | 宽度 | 6.8mm |
| 长度 | 10.62mm | 重量 | 0.002 |
| 包装方式 | Bulk | 出线方向 | With |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 柱间距 | :2.54mm | 第二连接器 | Without |
| 外壳颜色 | Green | 安装类型 | Straight |
| 连接器类型 | Crimp | 接触镀层 | :- |
| 排数 | 1 | 封装形式 | Receptacle |
| 触头材料 | :- | 壳体材料 | Nylon |
| 包装数量 | 100 | 配接方向 | Without |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 中心触点材料 | 2.54 [.100] |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mod IV |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | ||
