点击放大查看

87499-3

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 2POS .100 SINGLE 2.54mm,housing,2W,Mod IV,SR,snap in Headers & Wire Housings NON-PLRZD HSG 2 SNGL .205 width Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 2Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 2WAY Housing,Connector;Crimp-Snap;Single;2;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 2 Contact DesignStamped Single row / straight / without polarization AMPMODU MOD IV, 87499-3, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 2 路直母 PCB 壳体 02 MODIV HSG SR MRKD .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
海关税号	85369010	认证机构	:CSA, UL

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
开关功能	Unlatched	击穿电压	750V
最大额定电流	3 A	绝缘电阻	:500Mohm
最小供电电压	250VAC

机械参数

颜色	Black	深度	15.24mm
间距	2.54 mm	宽度	3.56mm
高度	3.56 mm	长度	5.21mm
重量	2.27	包装方式	Bulk
排间距	2.54 mm	端接方式	:Crimp
触头类型	Female Socket	极化	No
外壳颜色	Black	安装类型	Straight
行程角度	Straight	连接器类型	Receptacle
接触镀层	:Gold	安装样式	Free Hanging
排数	1	封装形式	:Black Thermoplastic UL94V-0
触头材料	:Beryllium Copper	壳体材料	Thermoplastic
总长度	5.21 mm	主要材料	InterconnectSystem
连接器 - 电缆	Yes	插针孔直径	0.1"
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	2	接触件端接	Crimp
位数	2	第一连接器安装类型	:PCB

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	Mod IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - Housings
矩阵（列×行）	0.1in.	适用产品/相关产品	Centerline Single-Row Connector

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

580372.pdf

在线文档

87499-3?RQPN=87499-3

相关型号

825437-2

te connectivity / amp

Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 2POS R/A 30GOLD Headers & Wire Housings MOD 2 PINHDR 1X02P. Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 2Mating Post Length = 6.70 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MOD 2 PINHDR 1X02P.

¥1.8700

详情

87220-2

te connectivity / amp

Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 2POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Header; Standard; PC Board; Single; 2; 0.025 in.; 0.125 in.; Square; 0.1 in. Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 2Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, BOARD-BOARD CONNECTOR HEADER, 2WAY, 1ROW Header;Standard;PCBoard;Single;2;0.025in.;0.125in.;Square;0.1in. TE Connectivity AMPMODU Mod II 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 02 MODII HDR SRST UNSHRD .100

¥3.7400

详情

826926-2

te connectivity / amp

Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 2POS STR TIN TE Connectivity AMPMODU Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings AMP MODU II PIN HEAD Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = SingleNumber of Positions = 2Mating Post Length = 6.70 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, STRAIGHT, 2WAY 2wSinglerowStraightheaderTin Pin header; pin strips; AMPMODU MOD II; male; PIN:2; straight TE Connectivity AMPMODU Mod II 系列 2.54mm节距 2路 (1排) 直引脚管座, 焊接端接, 3A , 通孔 AMPMODU II PIN HEADER

¥0.4896

详情

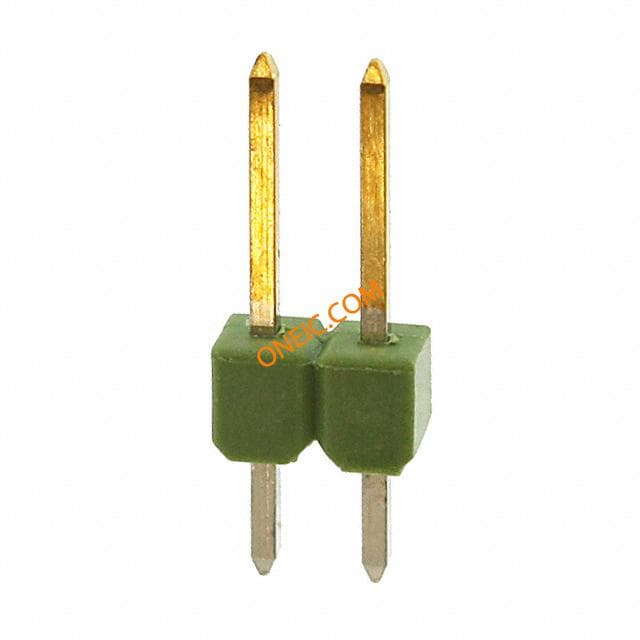

826629-2
