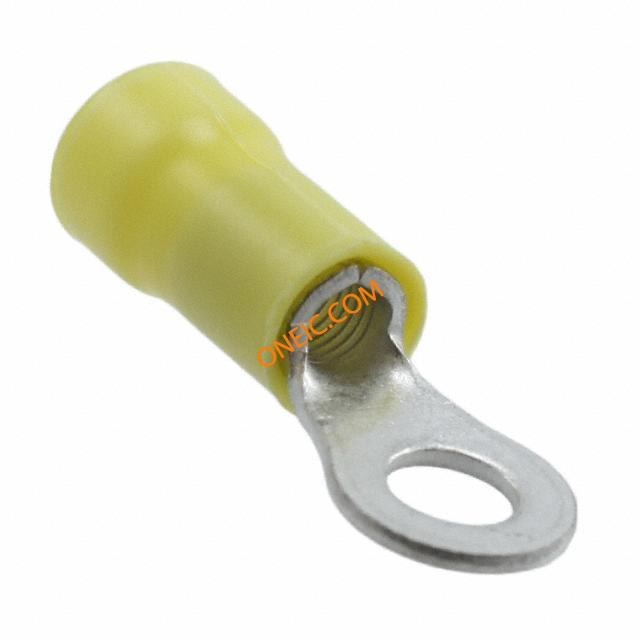

8-34854-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 10-12AWG 27.89mm 9.52mm Tin Loose Piece Terminals TERM PG R 12-10 10 TERM PG R 12-10 10 Ring and Spade Tongue Terminals TERMINAL PG RING 12-10 10 Ring Tongue Terminal 10-12AWG 27.89mm 9.52mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #10, CRIMP YELLOW SEE512-443534854 TERMINAL,PG R 12-10 10 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | 8348541 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 电压范围 | 600VAC | 额定电压 | 600 VAC |
| 供电电压 | 600 | ||
机械参数
| 颜色 | Yellow | 深度 | 9.52 mm |
| 形状 | RING-043 | 表面处理 | Tin |
| 长度 | 27.89 mm | 重量 | 0.181 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.039" (0.99mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 10 | 导线线规 | 10-12 AWG |
| 本体表面处理 | PLASTI-GRIP | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 4.82 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.375" | 触头材料 | Copper |
| 柄部直径 | 0.19in. | 绝缘颜色 | :Yellow |
| 总长度 | 1.098" (27.89mm) | 刀片材料 | Copper |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 材料厚度 | 0.042in. | 绝缘直径 | 6.35 [.250] Max. |
| 绝缘材料 - 类型 | Vinyl | 外缘宽度 | 0.375" (9.53mm) |
| 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) | 舌片内部开口 | 1.07 [0.042] |
| 供应商器件封装 | PLASTI-GRIP | 线规或范围 - AWG | 5,180 â 13,100 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | :Plasti-Grip | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
