点击放大查看

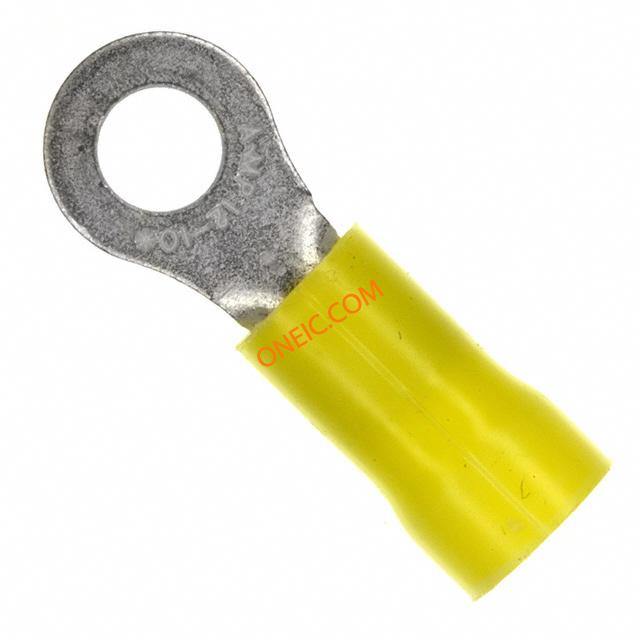

34854
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 10-12AWG 27.89mm 9.52mm Tin Loose Piece Terminals RING 12-10AWG 10 Ring and Spade Tongue Terminals CONN RING 10-12 AWG #10 PL-GRIP Ring terminal, PLASTI-GRIP, yellow, M5 Ring Tongue Terminal 10-12AWG 27.89mm 9.52mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #10, CRIMP YELLOW TERMINAL;RINGTONGUE;12-10AWG;YLLW;STUDSZ10 TE Connectivity PLASTI-GRIP 系列, 黄色 绝缘 镀锡触芯 环形压接端子 , M5 螺栓, 27.89mm总长 TERMINAL,PG R 12-10 10 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | A0970 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85444920 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
机械参数
| 颜色 | Yellow | 深度 | 9.52 mm |
| 形状 | RING-043 | 表面处理 | Tin |
| 重量 | 0.903 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.039" (0.99mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 10 |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.83 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.375" | 触头材料 | Copper |
| 绝缘颜色 | :Yellow | 总长度 | 1.098" (27.89mm) |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Insulation Support | 连接器颜色 | Yellow |
| 接触件尾部长度 | 0.99 [0.039] | 绝缘直径 | 6.35 [.250] Max. |
| 绝缘材料 - 类型 | Vinyl | 外缘宽度 | 0.375" (9.53mm) |
| 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) | 供应商器件封装 | PLASTI-GRIP |
| 线规或范围 - AWG | 5,180 â 13,100 | 线规或范围 - mm² | 3.00-6.00² [12-10] |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 854 | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
