点击放大查看

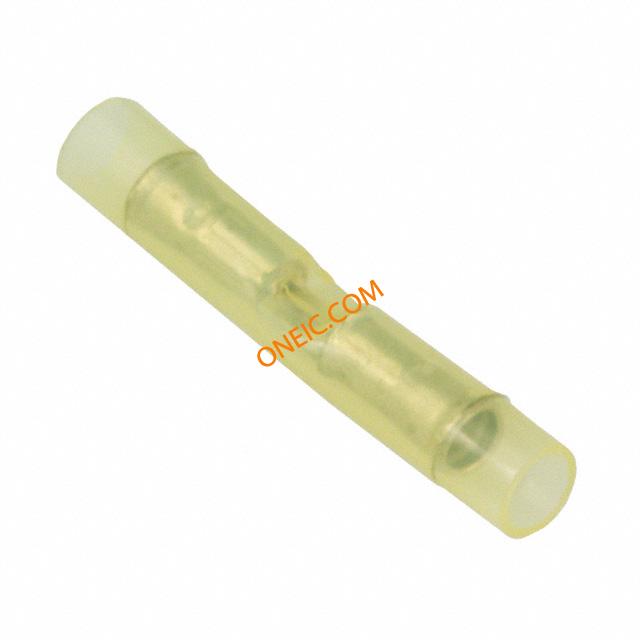

8-323994-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | PIDG Splice Terminal 22-26AWG 22.61mm Tin Loose Piece Terminals NYL-BUTT 26-22 YEL Splices - Closed Barrel CONN SPLICE BUTT 26-22AWG PIDG PIDG Splice Terminal 22-26AWG 22.61mm Tin Loose Piece Product Highlights:SpliceNot SealedSplice Type = ButtButt Splice Type = StandardBody Style = PIDGSearch Keywords:Wire Termination and Splices, terminals and splices, W crimp, C crimp, TERMINAL, BUTT SPLICE, YELLOW SEE512-0549323994 SPLICE BUTT PIDG 26-22 |
| 分类 |
商业参数
| 产品 | Splices | 其他名称 | 83239942 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant |
| 海关税号 | 85322300 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
机械参数
| 颜色 | Yellow | 表面处理 | Tin |
| 密封型 | No | 重量 | 0.045 |
| 材料（通用） | Copper | 底座类型 | Standard |
| 包装方式 | Bulk | 绝缘类型 | Insulated |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 螺柱/焊片尺寸 | # 8 |
| 端子类型 | Butt Splice, Inline, Individual Openings | 行程角度 | Straight |
| 连接器类型 | :Butt Splice | 接触镀层 | :Tin |
| 壳体镀层 | Tin | 触头材料 | :Copper |
| 绝缘颜色 | :Yellow | 总长度 | 22.61 mm |
| 包装数量 | Loose Piece | 主要材料 | Splice |
| 绝缘高度 | Insulation Support | 绝缘直径 | 2.08 [.082] Max. |
| 绝缘材料 - 类型 | Nylon | 进线口数 | 2 |
| 线规或范围 - AWG | 202 â 810 | 线规或范围 - mm² | 0.12-0.40² [26-22] |
产品信息
| 类型 | PIDG Splice Terminal | 连接器性别 | Female |
| 系列 | 323 | 产品特性 | Serrated Mating Area |
| 制造商全称 | AMP | 产品子类型 | Splice |
