| 制造商 | TE Connectivity Ltd. |

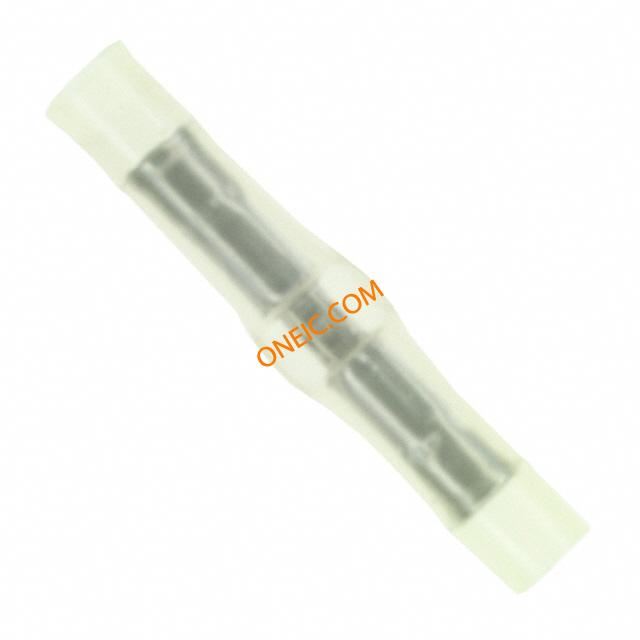

| 描述 | Splice Terminal 24-26AWG 22.61mm Tin Loose Piece Terminals BUTT SPLICE 26-22AWG Splices - Closed Barrel CONN SPLICE BUTT 22-26AWG YEL Crimp rcp. splice butt, 0.13-0.21sq.mm Splice Terminal 24-26AWG 22.61mm Tin Loose Piece Product Highlights:SpliceNot Sealed1 & 2 ClassSplice Type = ButtButt Splice Type = StandardSearch Keywords:Wire Termination and Splices, terminals and splices, W crimp, C crimp, TERMINAL, BUTT SPLICE, YELLOW Splice;Butt;PIDG;Copper;Tin;Nylon;26to24AWG;Yellow;0.082in.(Max.) PIDG 26-24 AWG Yellow Copper Unsealed Closed Barrel Butt Splice TE Connectivity PIDG 系列 黄色 绝缘 平接 绝缘压接接线端子, 镀锡触点, 26 → 24 AWG SPLICE BUTT PIDG 26-24 |
| 分类 |
商业参数
| 产品 | Splices | 零件号别名 | M7928 M7928/5-1 |
| 产品类别 | Terminals | 标准包装数量 | Bag |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | RoHS,ELVCompliants |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 额定电压 | 300 VAC | ||
机械参数
| 颜色 | Yellow | 表面处理 | Tin |
| 密封型 | No | 重量 | 0.023 |
| 材料（通用） | Copper | 底座类型 | Standard |
| 包装方式 | Bulk | 绝缘类型 | Insulated |
| 导线线规 | 24-26 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 螺柱/焊片尺寸 | # 6 |
| 端子类型 | Butt Splice, Inline, Individual Openings | 行程角度 | Straight |
| 连接器类型 | :Butt Splice | 接触镀层 | Tin |
| 壳体镀层 | Tin | 触头材料 | Copper |
| 绝缘颜色 | :Yellow | 总长度 | 22.61mm |
| 包装数量 | Loose Piece | 主要材料 | Splice |
| 绝缘高度 | Insulation Support | 连接器颜色 | Yellow |
| 绝缘直径 | 2.08 [.082] Max. | 绝缘材料 - 类型 | Nylon |
| 进线口数 | 2 | 线规或范围 - AWG | 238 â 475 |
| 线规或范围 - mm² | 0.12-0.24² [26-24] | ||
产品信息
| 备注 | 26-22 splices are 26-24 range in accordance with MIL-T-7928. | 类型 | Splice Terminal |
| 类别 | 1 & 2 | 连接器性别 | Female |
| 系列 | 323 | 产品特性 | Serrated Mating Area |
| 制造商全称 | AMP | 产品子类型 | Splice |
| 设备部件号 | M7928/5-1 | ||
